Technical data and dimension sheets
Braking resistors
Operating Instructions – MOVIMOT
®
flexible
320

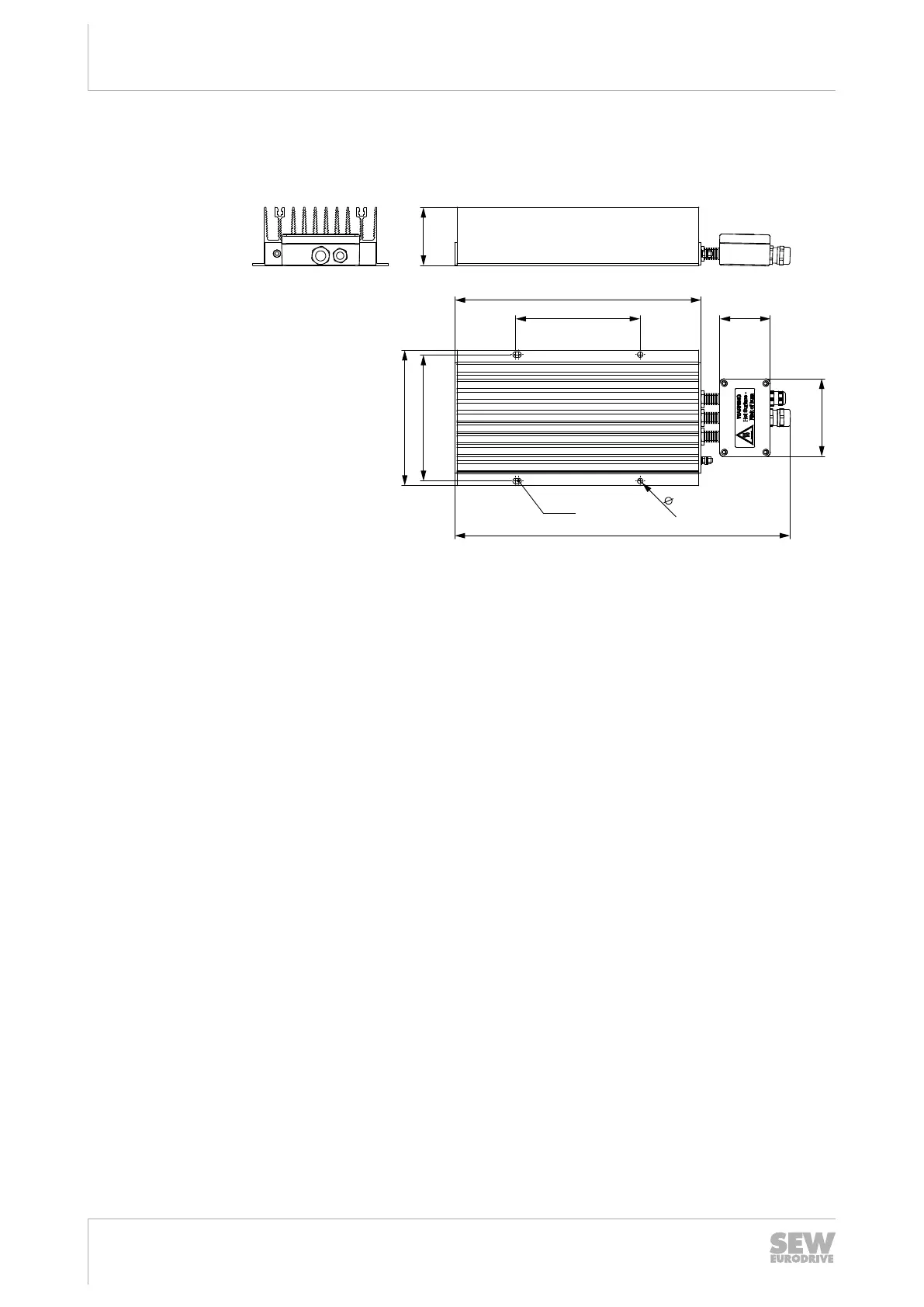

Dimension drawing of BW100‑009-T
The following figure shows the dimensions of the external braking resistor
BW100-009-T:
75
160
174
162
7
316
65
100
<435
ø7x11
