SEW-Eurodrive MOVIMOT flexible MMF1 C/DBC Series User Manual

11
Technical data and dimension sheets
Braking resistors
Operating Instructions – MOVIMOT
®
flexible
319

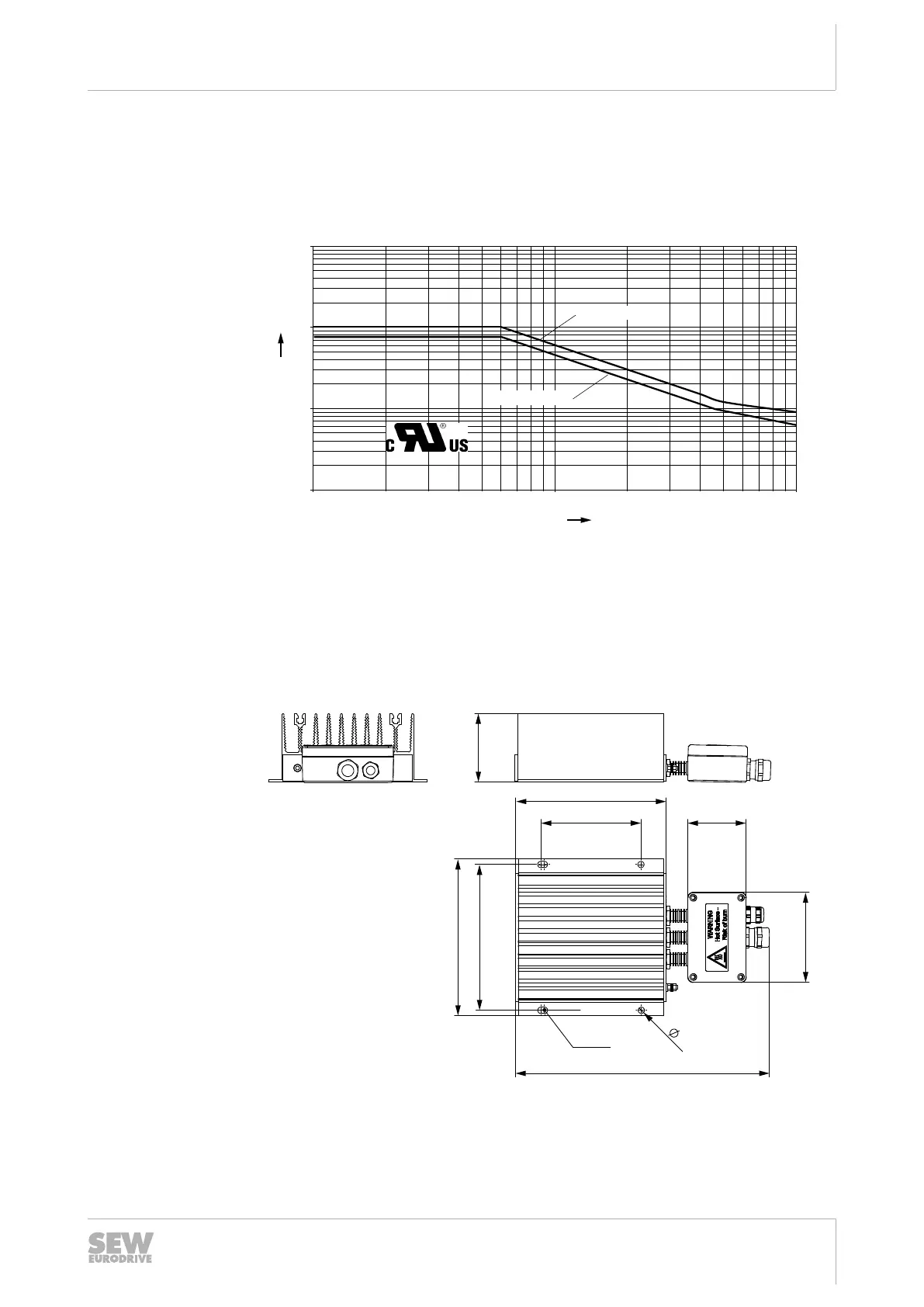

11.5.5 Technical data of BW150-006-T and BW100-009-T
Power diagrams
The following figure shows the rating diagrams of the braking resistors BW150-006-T
and BW100-009-T:
0.1
1
10
100
1 10 100
[1]
BW150-006-T
BW100-009-T
[2]
25298798219
[1] Power in KW
[2] Cyclic duration factor cdf in %
ED Cyclic duration factor of the braking resistor, based on a cycle time of 120s.
Dimension drawing of BW150‑006-T
The following figure shows the dimensions of the external braking resistor
BW150‑006-T:
75
110
174
162
7
166
65
100
<285
ø7x11
25298808587
29129451/EN – 12/2019
