11
Technical data and dimension sheets
Braking resistors
Operating Instructions – MOVIMOT
®
flexible
318

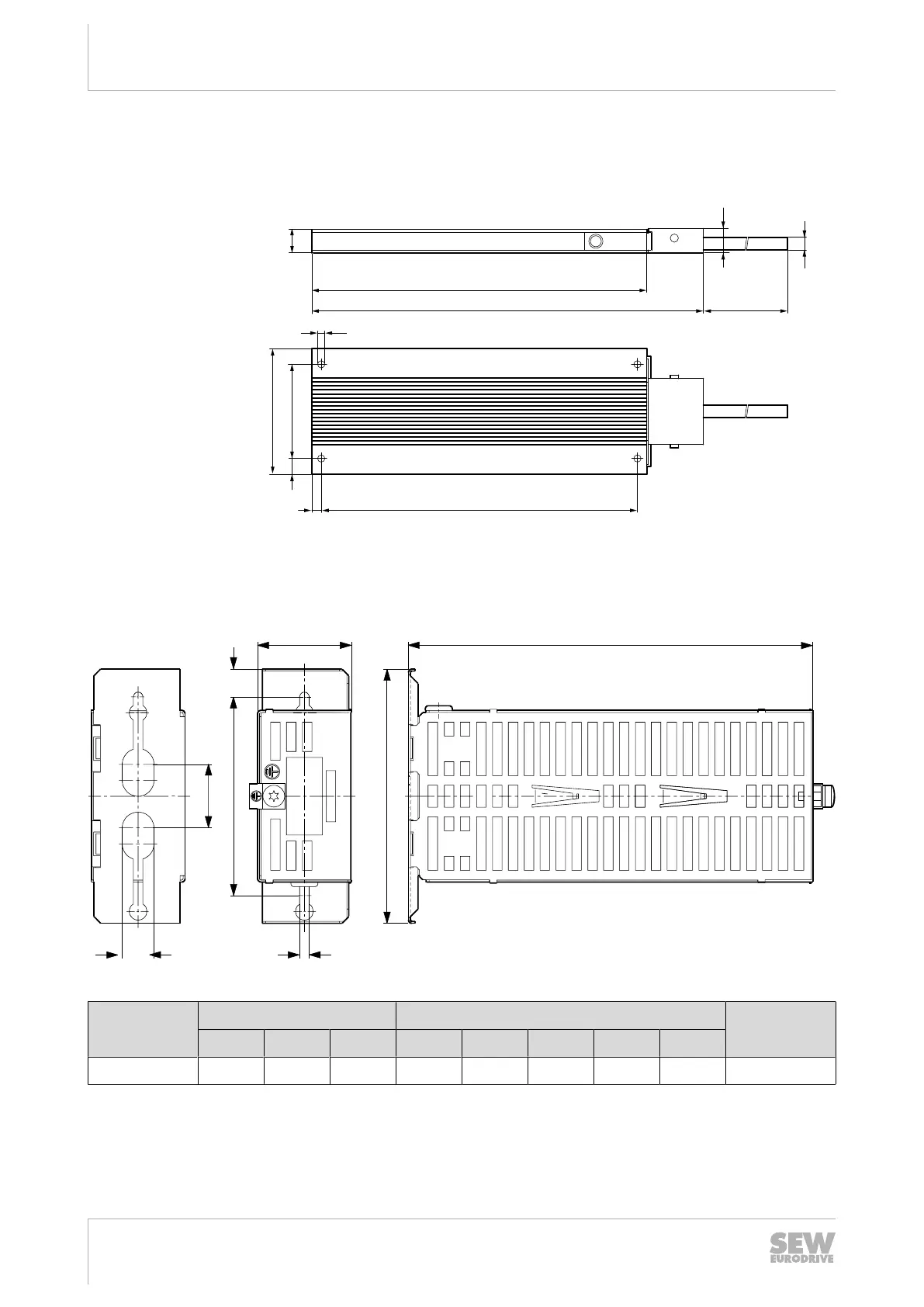

Dimension drawing of BW100‑005/K-1.5
The following figure shows the dimensions of the external braking resistor
BW100-005/K-1.5:
216
252
10
6
60
15
15.5
80
204
4.6
Ø8
1500
25298780043
Dimension drawing for the BS.. protective grid
The following figure shows the dimensions of the BS-005 protective grid:
e
a
A C
d
b
B
x
25842294795
Type Main dimensions in mm Mounting dimensions mm Mass kg
A B C b d e a x
BS-005 60 160 252 125 4 20 6 17.5 0.5
29129451/EN – 12/2019
