11
Technical data and dimension sheets
Mounting kit for braking resistor BW...-.../..C
Operating Instructions – MOVIMOT
®
flexible
323

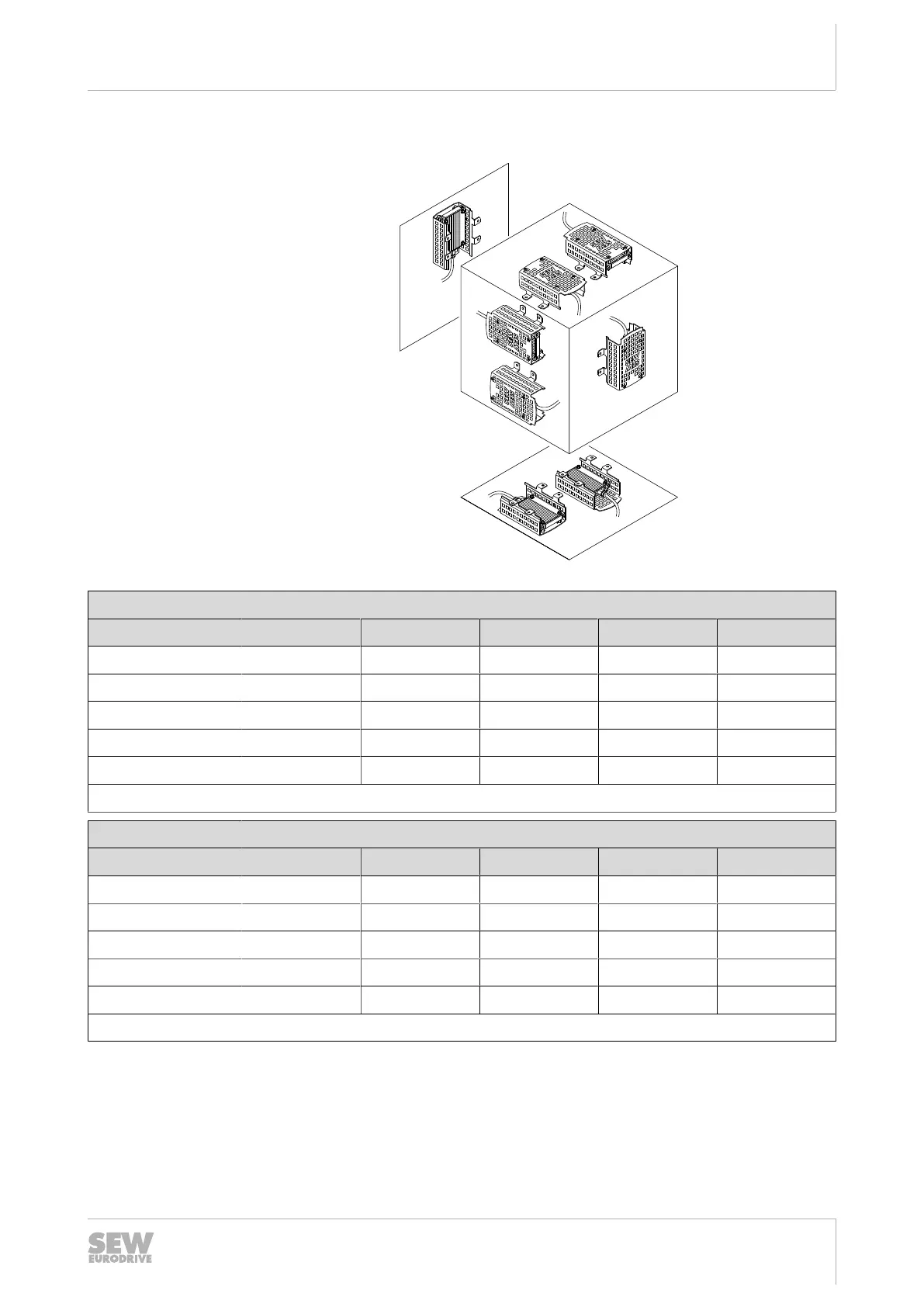

11.6.3 Current-carrying capacity
[4]
[1]
[3]
[2]
[5]
/
[6]
25893524363
BW100-001/.../... Current-carrying capacity at % cdf in W
ED [1] [2] [3] [4] [5] / [6]
100% 100 100 100 100 100
50% 150 150 150 150 150
25% 250 250 250 250 250
12% 300 300 300 300 300
6% 500 500 500 500 500
cdf = Cyclic duration factor of the braking resistor in relation to a cycle duration TD ≤ 120s
BW100-002/.../... Current-carrying capacity at % cdf in W
ED [1] [2] [3] [4] [5] / [6]
100% 200 200 200 160 160
50% 300 300 300 240 240
25% 500 500 500 400 400
12% 600 600 600 480 480
6% 1000 1000 1000 800 800
cdf = Cyclic duration factor of the braking resistor in relation to a cycle duration TD ≤ 120s
29129451/EN – 12/2019
