Technical data and dimension sheets
Mounting kit for braking resistor BW...-.../..C
Operating Instructions – MOVIMOT
®
flexible
324

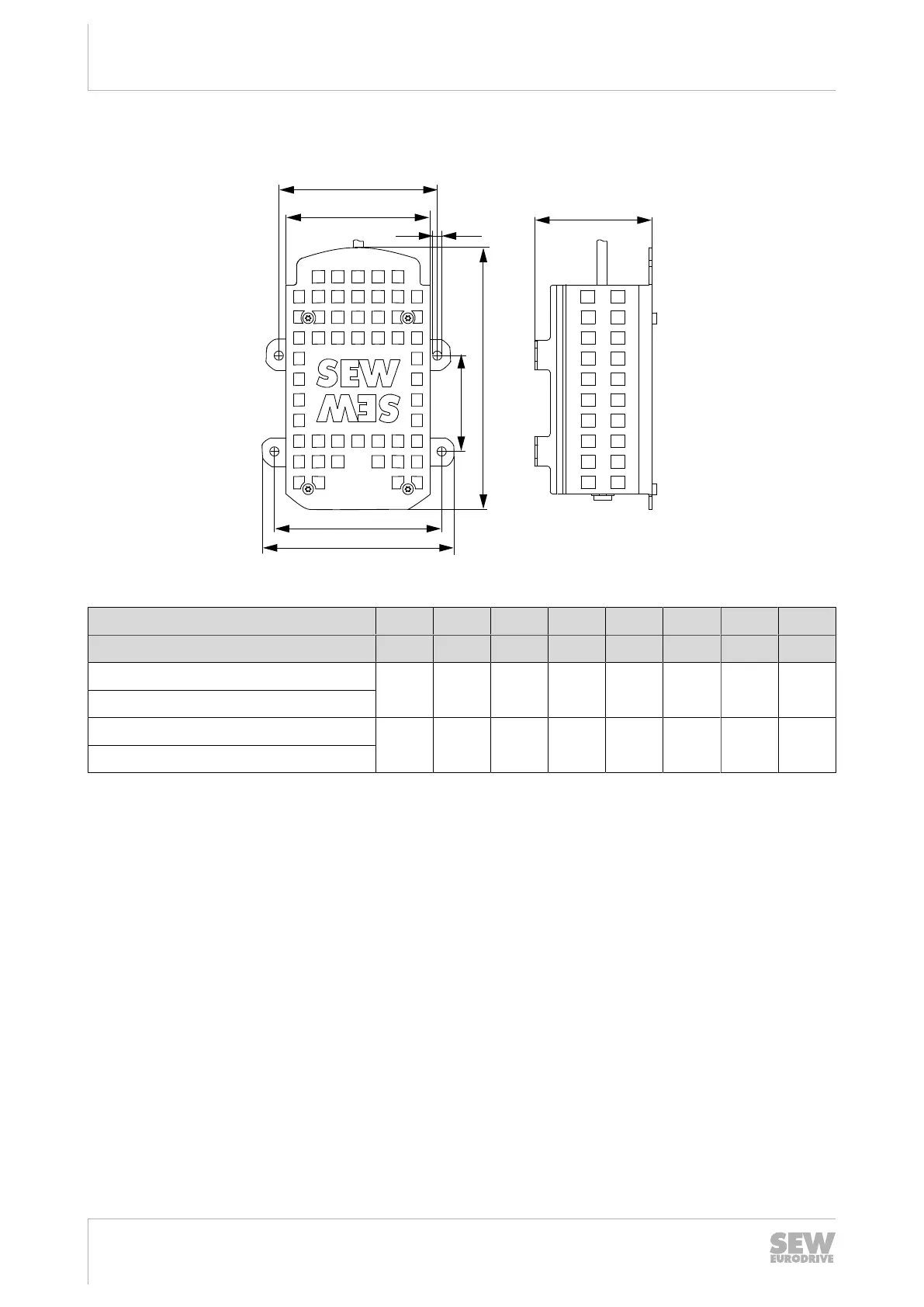

11.6.4 Dimension drawing
b
B
a
a1
A
A1
D
C
9007224554230283
A A1 B C D a a1 b
mm mm mm mm mm mm mm mm
18272886 (BW100-001/K-1.5/M2C)
126.0 89.0 148.2 61.8 7 111.0 106.0 54.7
18272908 (BW100-002/K-1.5/M2C)
18272894 (BW100-001/K-1.5/M4C)
158.0 94.0 149.0 61.8 7 144.0 142.0 82.0
18272916 (BW100-002/K-1.5/M4C)
29129451/EN – 12/2019
