Mechanical installation
Installing the device
Operating Instructions – MOVIMOT
®
flexible
33
Minimum installation clearance
Note the minimum installation clearance required to remove the electronics cover. For
detailed dimension drawings, see chapter "Technical data and dimension sheet".
Design MMF1.

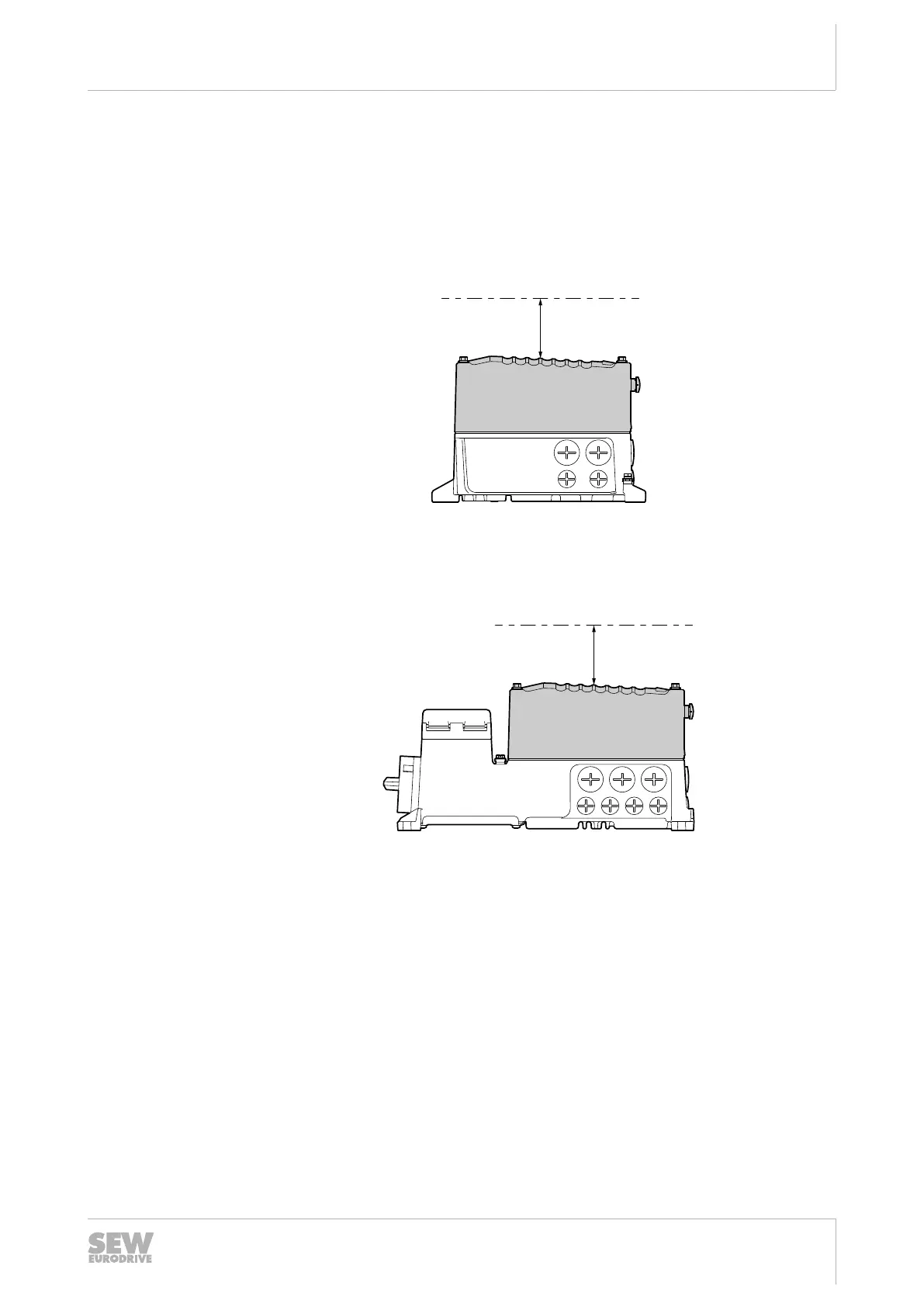

The following figure shows the minimum clearance when installing the electronics
cover:
100
25847860491
Design MMF3.
The following figure shows the minimum clearance when installing the electronics
cover:
100
25847856907
