5
Electrical installation
Installation instructions
Operating Instructions – MOVIMOT
®
flexible
52

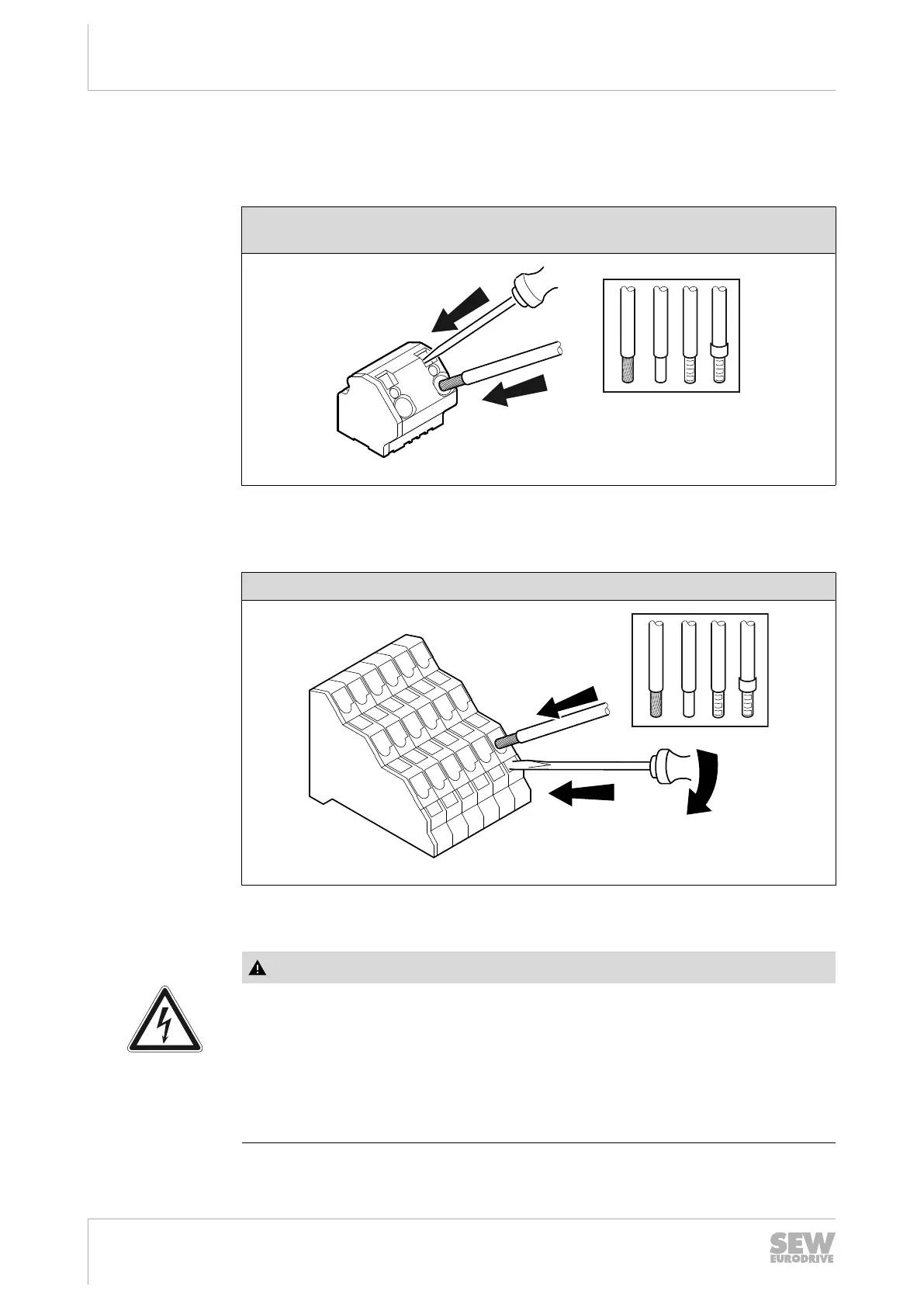

5.3.6 Activating terminals X3 for the braking resistor
Adhere to the following sequence when you activate the terminals X3 for the braking
resistor:
Terminals X3 for the braking resistor (the following figure shows a schematic
illustration)
1.
2.
25650172171
5.3.7 Activating control terminals X9
Adhere to the following sequence when actuating the X9 control terminals:
X9 control terminals (the following figure shows a schematic illustration)
2.
1.
3.
30508870539
5.3.8 Residual current device
WARNING
No protection against electric shock if an incorrect type of residual current device is
used.
Severe or fatal injuries.
The product can cause direct current in the PE conductor. If a residual current
device (RCD) or a residual current monitoring device (RCM) is used for protec-
tion in the event of a direct or indirect contact, only a type B RCD or RCM is per-
mitted on the supply end of the product.
If the use of a residual current device is not mandatory according to the standards,
SEW‑EURODRIVE recommends not to use a residual current device.
29129451/EN – 12/2019
