Electrical installation
Plug connectors
Operating Instructions – MOVIMOT
®
flexible
86
Design MMF3.
[1]
3
2
X
[3]
2 mm
3 Nm
[2]
30568715531

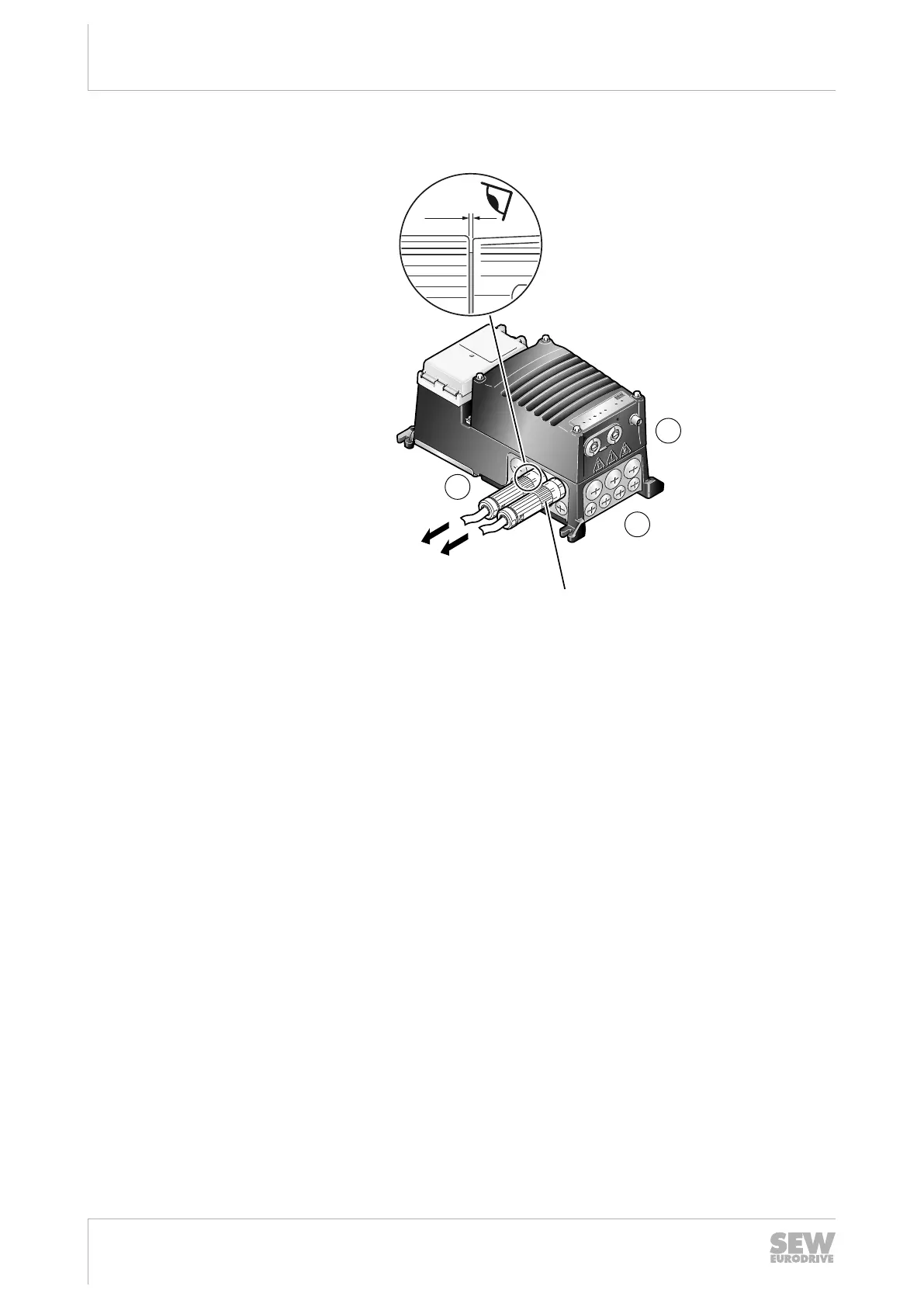

[1] "Straight" design
[2] The tightening torque for the union nut is 3Nm
You can order suitable tools from TE Connectivity - Intercontec products using
the following purchase order number:
• Torque wrench 3Nm, 1/4" external square driver: C1.020.00
• Spanner wrench 1/4" square socket, suitable to the 923/723 series with
SpeedTec equipment: C6.216.00
[3] There is a gap of 2mm between plug connector and socket
