Sharp AR-M550U - SPF Document Empty Detector; SPF Paper Tray Lift Motor; SPF Paper Tray Lower Limit Detector

AR-M550/M620/M700 DETAILS OF EACH SECTION 6 - 118

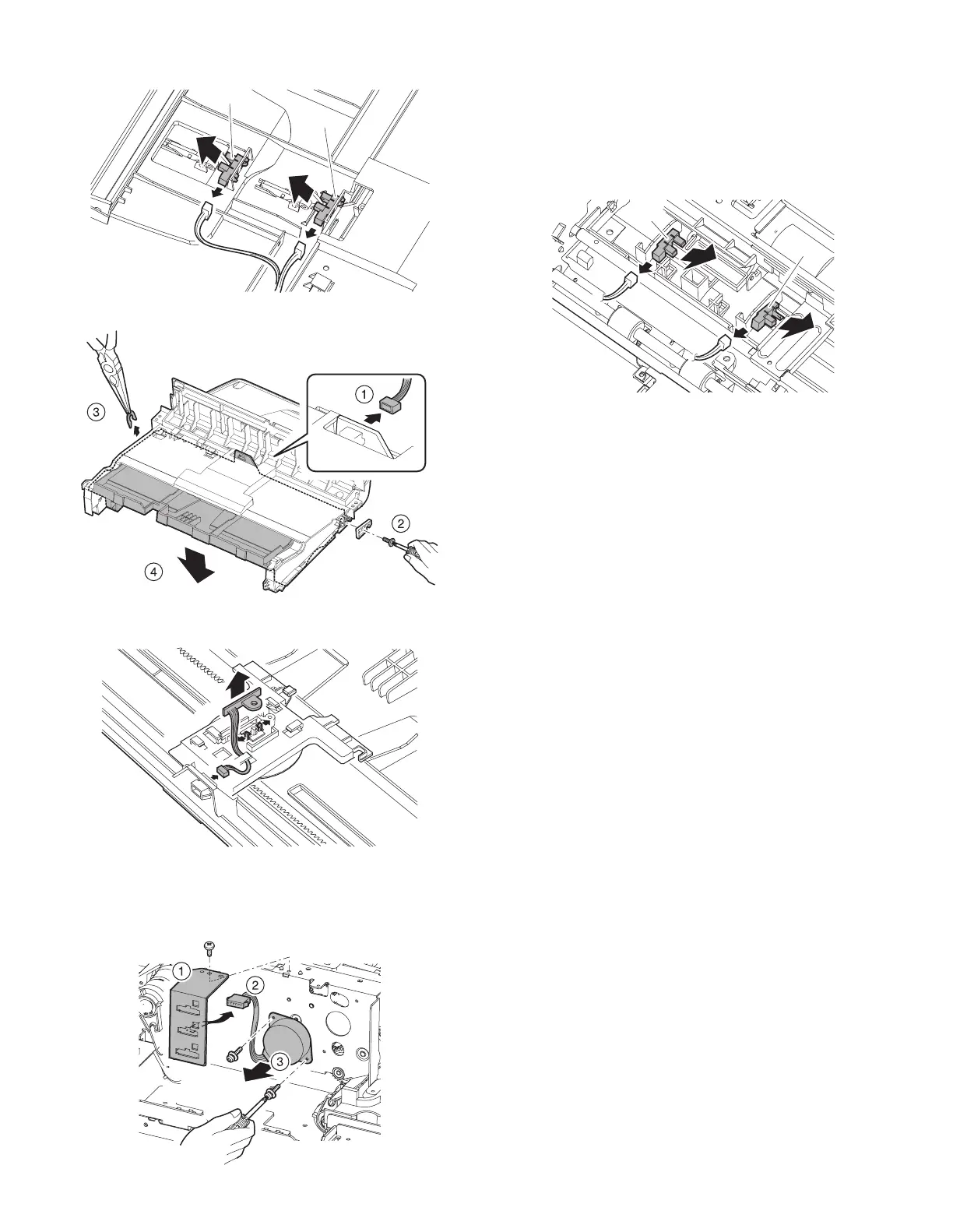

4) Disconnect the connector, and remove the SPF document length
detector 1 (A) and the SPF document length detector 2 (B).
5) Remove the rotation tray unit.
6) Remove the SPF document size (width) detection analog data
detector.
b-1. SPF paper tray lift motor
1) Remove the rear cover. (See “a-1. Cabinet” in the previous sec-
tion, “[External outfit section]”)
2) Remove the SPF paper tray lift motor.
b-2. SPF paper tray lower limit detector
b-3. SPF document empty detector
1) Remove the cabinet. (See “a-1. Cabinet” in the previous section,
“[External outfit section]”)
2) Remove the document tray unit. (See “a. Document tray unit” in
this section)
3) Disconnect the connector, and remove the SPF paper tray lower
limit detector (A) and the SPF document empty detector (B).
A
B
A
B
