AR-M550/M620/M700 DETAILS OF EACH SECTION 6 - 4

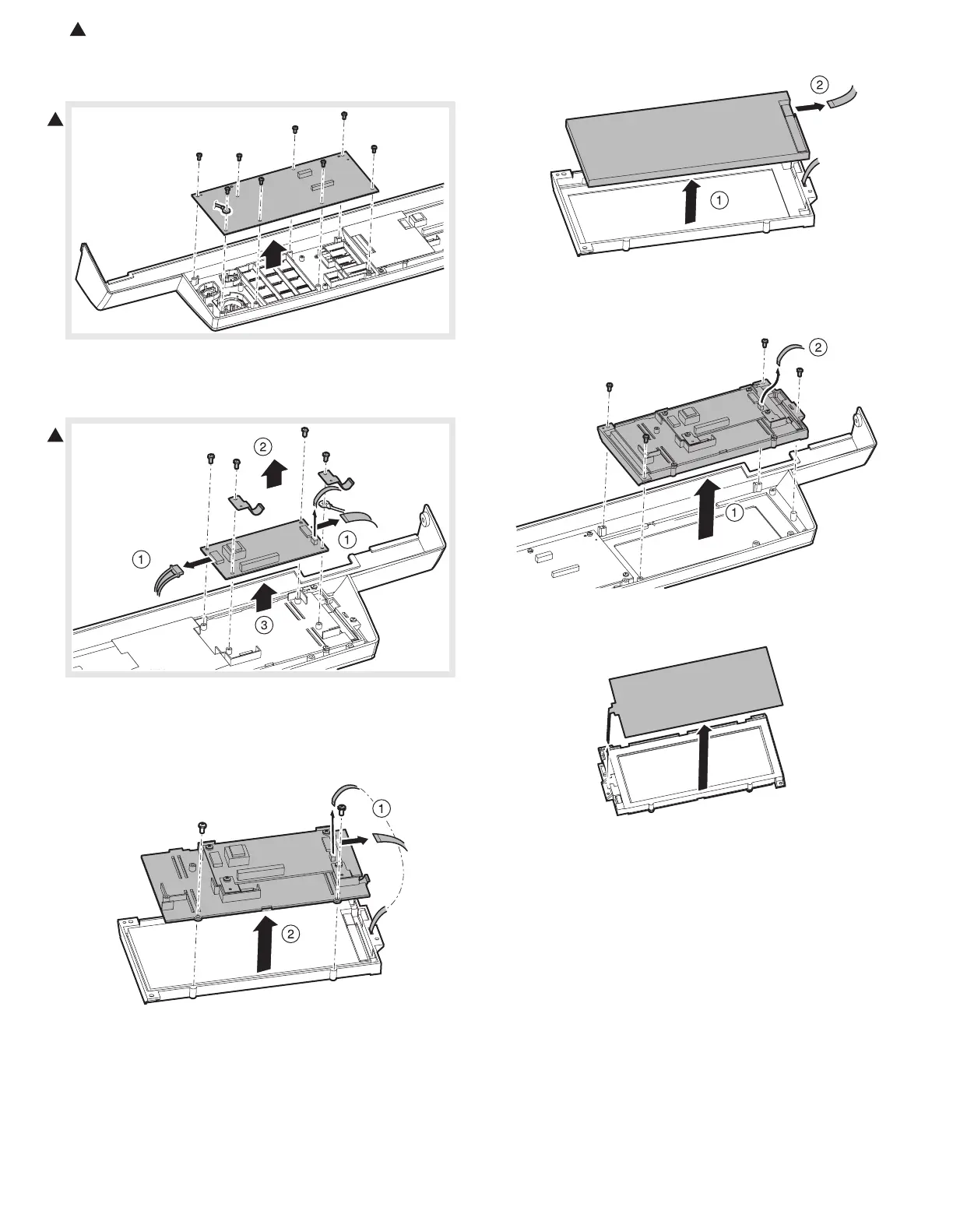

a-1. Operation control PWB
1) Remove the operation panel unit. (See “a. Operation panel unit”)
2) Remove the ground lead.
3) Remove the operation control PWB.
a-2. LVDS/INV PWB
1) Remove the operation panel unit. (See “a. Operation panel unit”)
2) Remove the ground lead.
3) Remove each cable.
4) Remove the LVDS/INV PWB.
b. LCD unit
1) Remove the operation panel unit. (See “a. Operation panel unit”)
2) Remove each cable.
3) Remove the LCD cover.
4) Remove the LCD unit.
b-1. Touch panel
1) Remove the operation panel unit. (See “a. Operation panel unit”)
2) Remove the LCD unit.
3) Remove the flat cable.
4) Remove the touch panel.
