AR-M550/M620/M700 DETAILS OF EACH SECTION 6 - 124

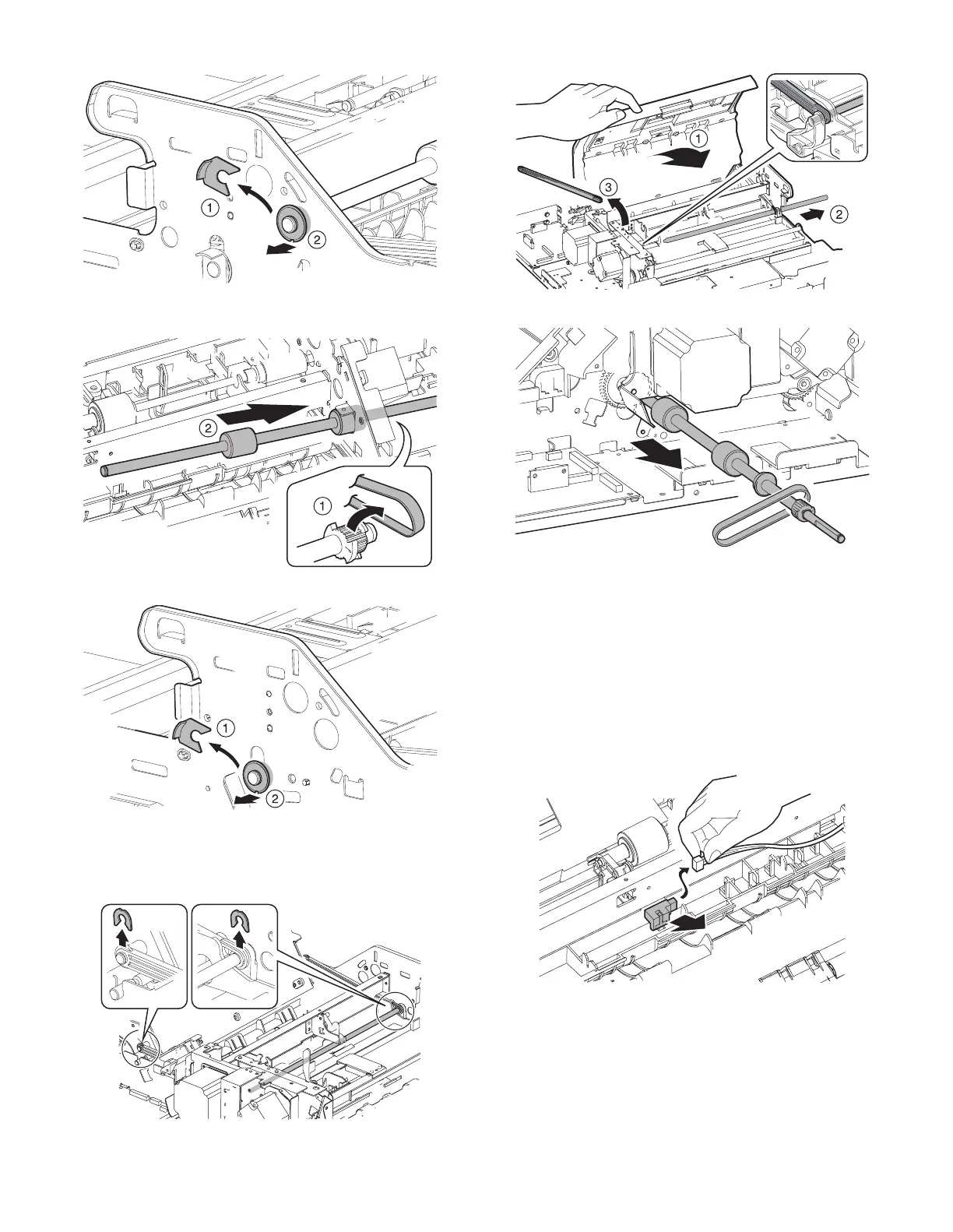

3) Remove the plastic E-ring to remove the bearing.
6) Remove the belt, and remove the transport roller 1 in the arrowed
direction.
7) Remove the plastic E-ring to remove the bearing.
8) Remove the electromagnetic clutch. (See “b-7. SPF paper trans-
port roller 2 brake clutch” and “b-8. SPF paper transport roller 2
clutch” in this section.)
9) Remove the plastic E-rings on the shaft side.
10) Remove the lever and shaft.
11) Remove the transport roller 2 in the arrowed direction.
b-11. SPF document paper pass detector 2
1) Remove the cabinet. (See “a-1. Cabinet” in “[External outfit sec-
tion]”)
2) Remove the document feed tray unit. (See “a. Paper feed unit” in
this section)
3) Remove the No. 1 resist roller idle, the paper feed paper guide
lower unit, and the No. 1 resist roller drive. (See “b-5. No. 1 resist
roller (Drive)” in this section)
4) Remove the transport roller 1 (Drive). (See “b-10. Transport roller 1
(Drive)” in this section)
5) Disconnect the connector, and remove the SPF document paper
pass detector 2.
