AR-M550/M620/M700 DETAILS OF EACH SECTION 6 - 12

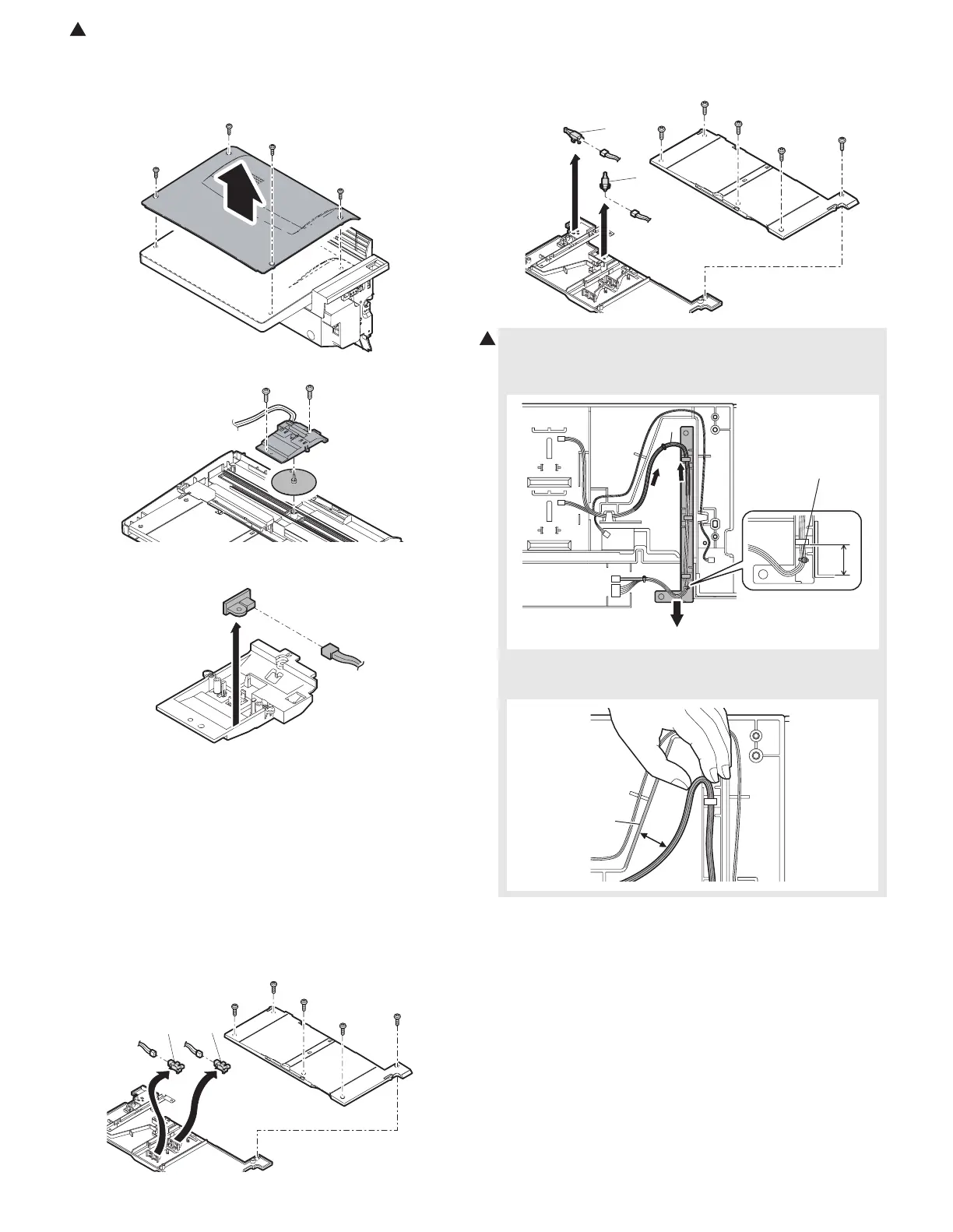

a-11. Manual feed paper width size detection PWB
1) Remove the multi manual paper feed tray unit. (See “a. Multi man-
ual paper feed tray unit”)
2) Remove the multi tray 250 lower.
3) Remove the width detection mounting plate.
4) Remove the pawl and the connector, and remove the manual
paper feed VR PWB.
a-12. Manual feed paper length detector 1
a-13. Manual feed paper length detector 2
a-14. Manual tray pull-out position detector 1
a-15. Manual tray pull-out position detector 2
1) Remove the multi manual paper feed tray unit. (See “a. Multi man-
ual paper feed tray unit”)
2) Remove the multi tray 250 lower. (See “a-11. Manual feed paper
width size detection PWB”)
3) Remove the manual paper feed tray lower.
4) Disconnect the connector, and remove the manual paper feed
length detector 1 (A) and the manual paper feed length detector 2
(B).
5) Disconnect the connector, and remove the manual paper feed tray
pull-out position detector 1(A) and the manual paper feed tray pull-
out position detector 2 (B).
AB
[Others]
1) Slide the harness holder in the direction of Y and install it. The
band must be in the range of A. Pull section B in the arrow direc-
tion to give a slack to the harness.
2) Fold the harness with your fingers and check that the harness
keeps the folded shape along the holder when it is released. Rib C
must be separated from the harness.
A
B
1
B
Y
X
A
Band
C
