AR-M550/M620/M700 DETAILS OF EACH SECTION 6 - 160

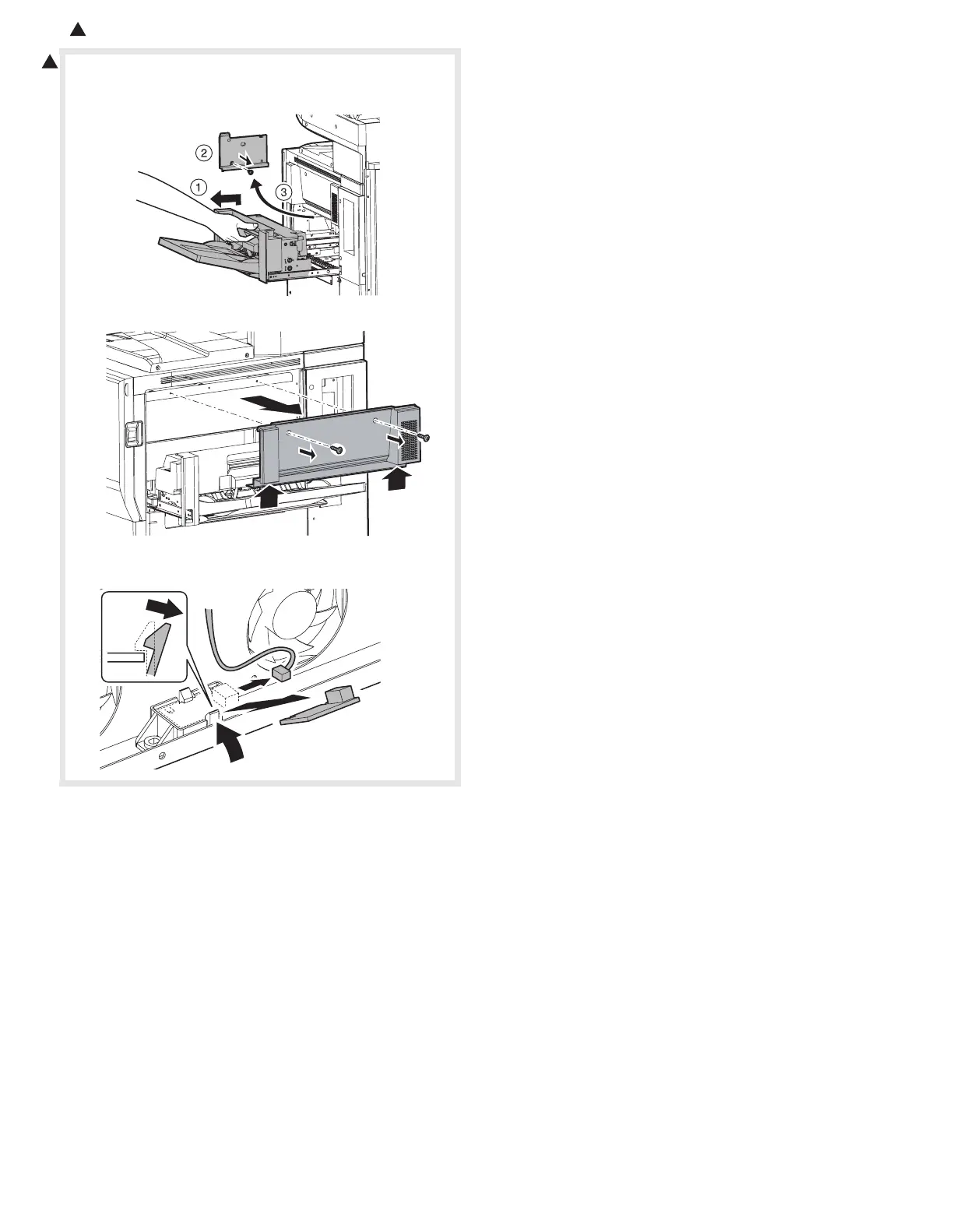

a-6. Machine temperature sensor
1) Pull out the multi paper feed tray, and remove the manual paper
feed cover F.
2) Pushing the lower part, remove the right cabinet center.
3) Disconnect the connector, release the pawl, and remove the
machine temperature sensor.
