AR-M550/M620/M700 DETAILS OF EACH SECTION 6 - 145

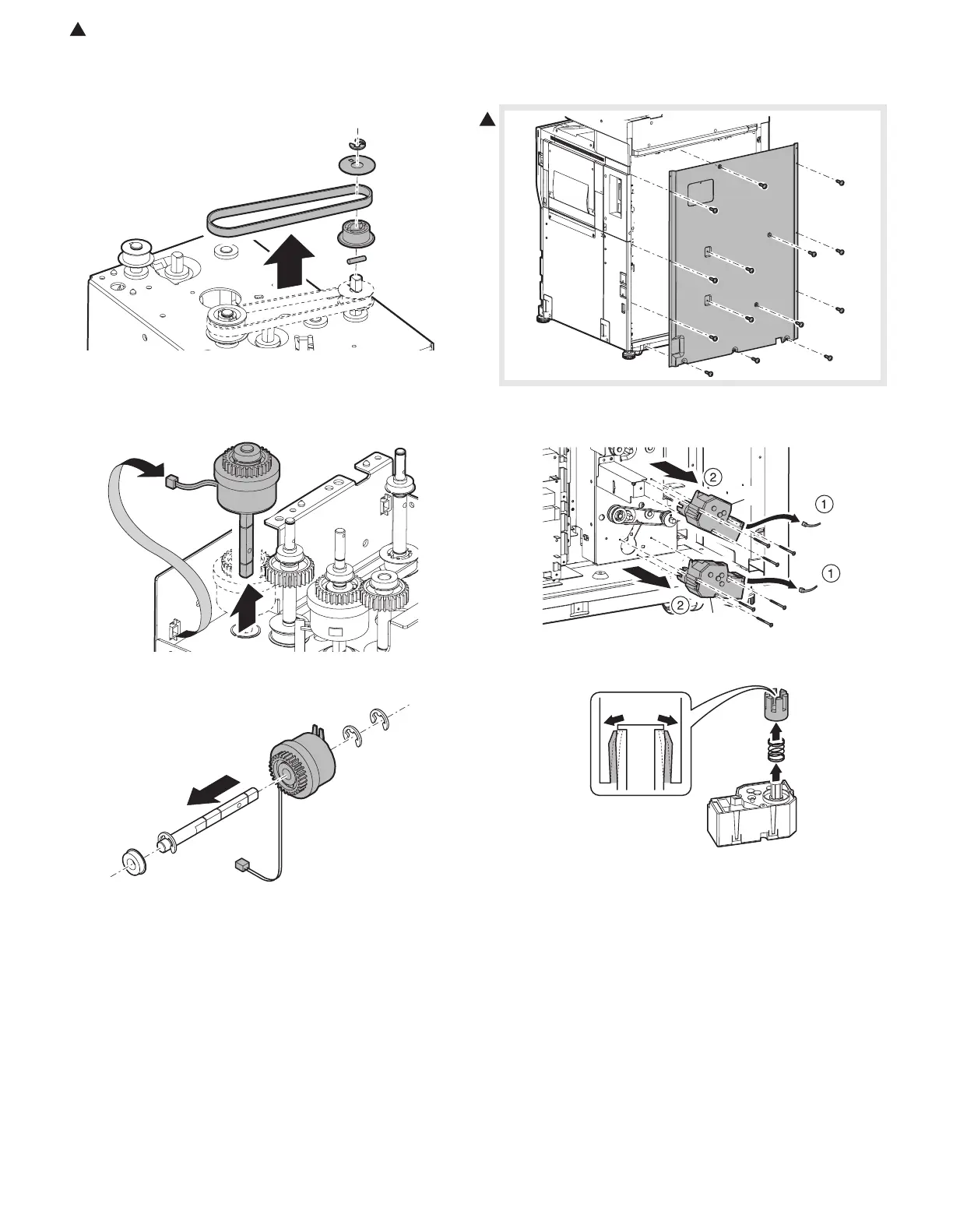

a-3. Paper feed tray 3/4 paper transport clutch 1
1) Remove the 3/4 paper feed drive unit. (See “a. 3/4 paper feed drive
unit” in this section)
2) Remove the parts, and remove the belt.
3) Remove the 3/4 drive frame lower. (See “a-1. Paper feed clutch
(Paper feed tray 3)” in this section)
4) Disconnect the connector, and remove the paper feed tray 3/4
paper transport clutch 1 unit.
5) Remove the E-ring, and remove the paper feed tray 3/4 and the
paper transport clutch 1.
b-1. Paper tray lift-up motor (Paper feed tray 3)
b-2. Paper tray lift-up motor (Paper feed tray 4)
1) Remove the rear cabinet.
2) Disconnect the connector, and remove the paper tray lift-up motor
(paper feed tray 3) (A) and the paper tray lift-up motor (Paper feed
tray 4) (B).
3) Release the pawl, and remove the lift-up coupling. Remove the lift-
up spring from the lift-up motor.
1
A
B
