AR-M550/M620/M700 DETAILS OF EACH SECTION 6 - 26

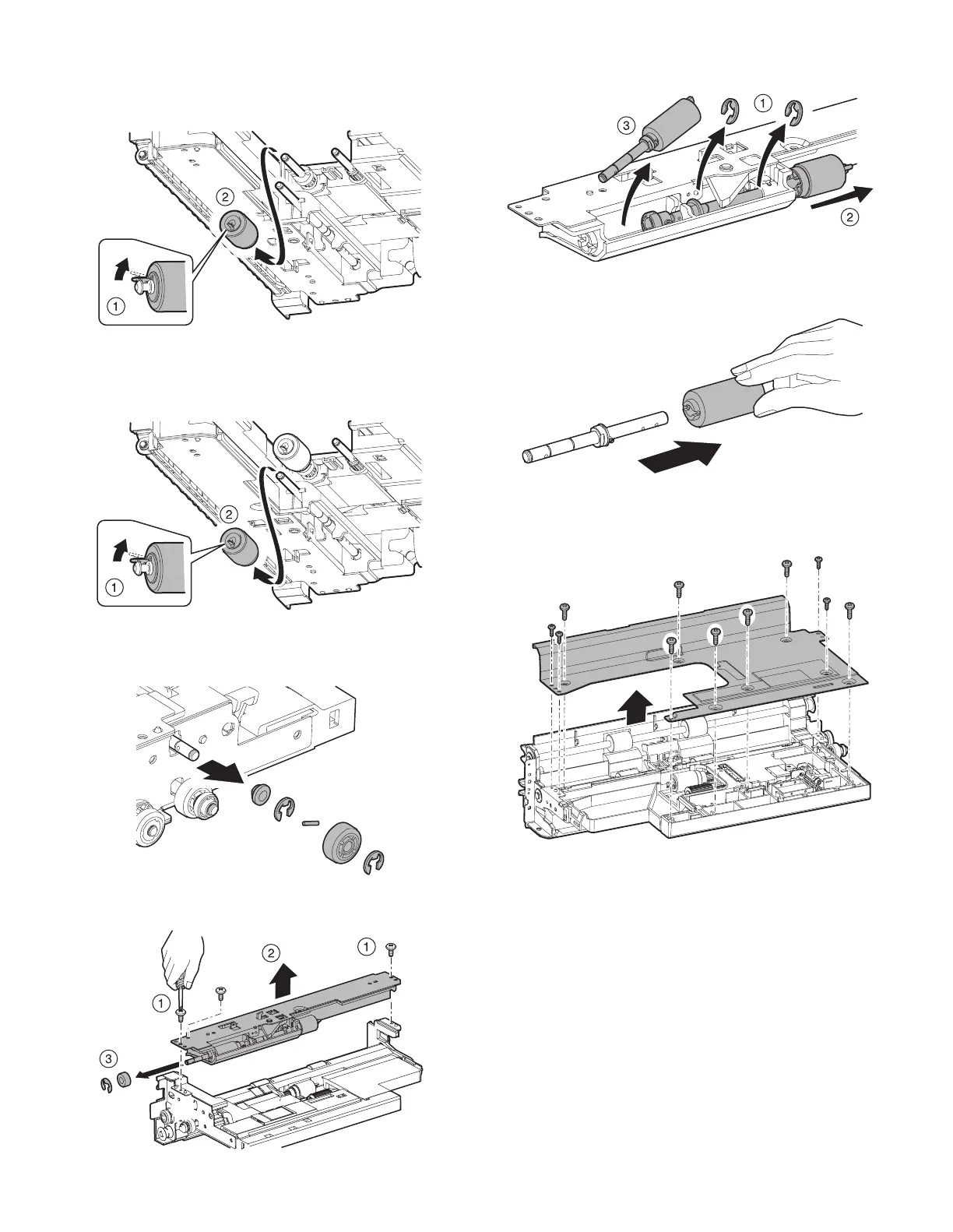

a-2. Paper feed roller
1) Remove the paper feed tray units 3 and 4. (See “”)
2) Remove the paper guide. (See “a-1. Pickup roller”)
3) Release the pawl, and remove the paper feed roller.
a-3. Separation roller
1) Remove the paper feed tray units 3 and 4. (See “”)
2) Remove the paper guide. (See “a-1. Pickup roller”)
3) Release the pawl, and remove the separation roller.
a-4. Torque limiter
1) Remove the paper feed tray units 3 and 4. (See “”)
2) Remove the E-ring, the gear and the pin.
3) Remove the E-ring and the bearing.
4) Remove the separation roller unit.
5) Remove the E-ring, and one-way clutch.
6) Remove the E-ring and shift the separation roller shaft.
7) Remove the shaft unit.
8) Remove the torque limiter.
a-5. Paper pickup solenoid
1) Remove the paper feed tray 3/4. (See “”)
2) Remove the cover.
