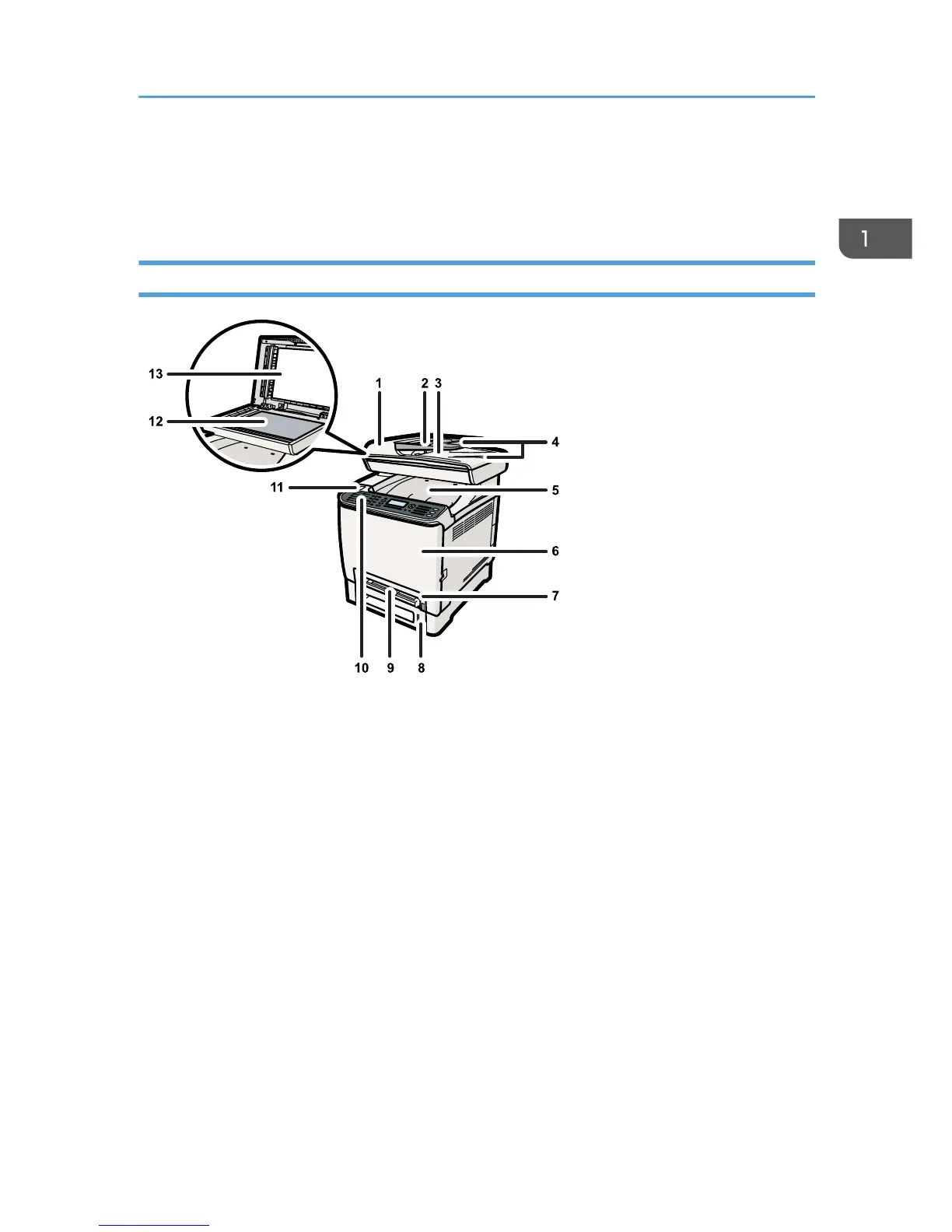

1. ADF (Auto document feeder) Cover
Open this cover to remove originals jammed in the ADF.
2. Input Tray for the ADF
Place stacks of originals here. They will feed in automatically. This tray can hold up to 35 sheets of plain
paper.
3. Output Tray for the ADF
Originals scanned with the ADF are output here.
4. Extender for the ADF Trays
Extend these when placing paper longer than A4 in the input tray for ADF.
5. Output Tray/Top Cover
Printed paper is output here. Up to 150 sheets of plain paper can be stacked here.
Open here to replace the print cartridges.
6. Front Cover
Open this cover to replace the waste toner bottle or remove jammed paper.
7. Tray 1
This tray can hold up to 250 sheets of plain paper.
Guide to Components
31
