7
1

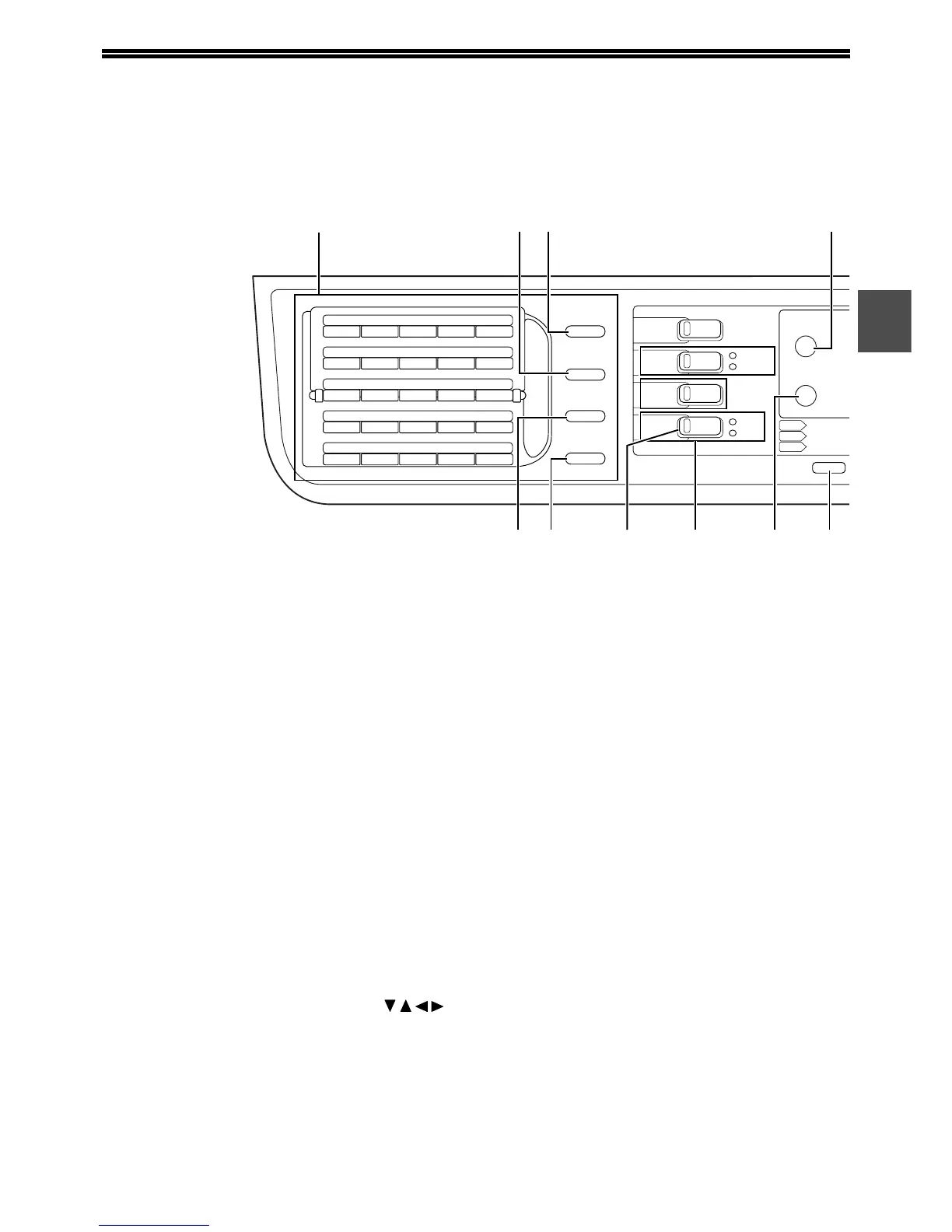

PART NAMES AND FUNCTIONS
OPERATION PANEL
(1) Page pallet (page 86)
(2) [REDIAL/PAUSE] key (pages 15)
This is used to redial the last number dialled, and
enter a pause when entering a fax number.
(3) [SPEAKER/SHIFT] key (pages 15, 86)
This is used to dial without lifting an extension
phone connected to the machine and to shift
between upper and lower case when entering
characters.
(4) [FAX STATUS] key (page 25)
This is used to cancel a fax transmission or a
stored fax transmission.
(5) Display (page 9)
This key displays the base screen and the
function setting screen.
(6) [BACK] key
In a setting or programming screen, this key is
used to move back to the previous screen.
(7) [OK] key
This key is used to enter a setting that has been
selected with the arrow or other keys ( ).
(8) Numeric keys
These are used to enter fax numbers,
sub-addresses, passcodes, and numerical
settings. (See "BOXES AND
SUB-ADDRESSES/PASSCODES REQUIRED
FOR F-CODE TRANSMISSION" on page 52.)
(9) [C] key
This is used to clear a mistake when entering fax
numbers, sub-addresses, passcodes, and
numerical settings. One digit is cleared each time
the key is pressed.
When an original is being scanned, this key can
also be used to cancel scanning.
(10) [SPEED/SYMBOL] key (pages 15, 88)
This is used to dial by Speed dialling and to enter
a symbol when entering characters.
(11) [COMM. SETTING/SPACE/-] key (page 22)
This is used to switch between memory
transmission and direct transmission, and to
switch between automatic reception and manual
reception. It is also used to enter a space or "-"
when entering characters.
(12) [FAX] key/FAX indicator/LINE indicator/DATA
indicator
Press to switch to fax mode. The base screen of
fax mode will appear in the display.
The LINE indicator lights up during transmission
or reception of a fax. When a fax has been
received, the DATA indicator blinks. (When there
is fax transmission data in memory, the DATA
indicator lights up.)
21 22 23 24 25
16 17 18 19 20
11 12 13 14 15
06 07 08 09 10
01 02 03 04 05
EXPOSURE
COLOUR MODE
PROGRAM
COPY
SCAN
FAX
SPECIAL
FUNCTION
FAX STATUS
SHIFT
SYMBOL
SPACE/–
SPEAKER
REDIAL/PAUSE
SPEED
COMM. SETTING
LINE
DATA
DATA
ON LINE
FAX
SCAN
PRINT
COPY
(4)(3)(2)
(1)
(13)(12) (15)(14)
(11)(10)
To Next Page
