1-8
BEFORE USING THE MACHINEâ–ºBEFORE USING THE MACHINE

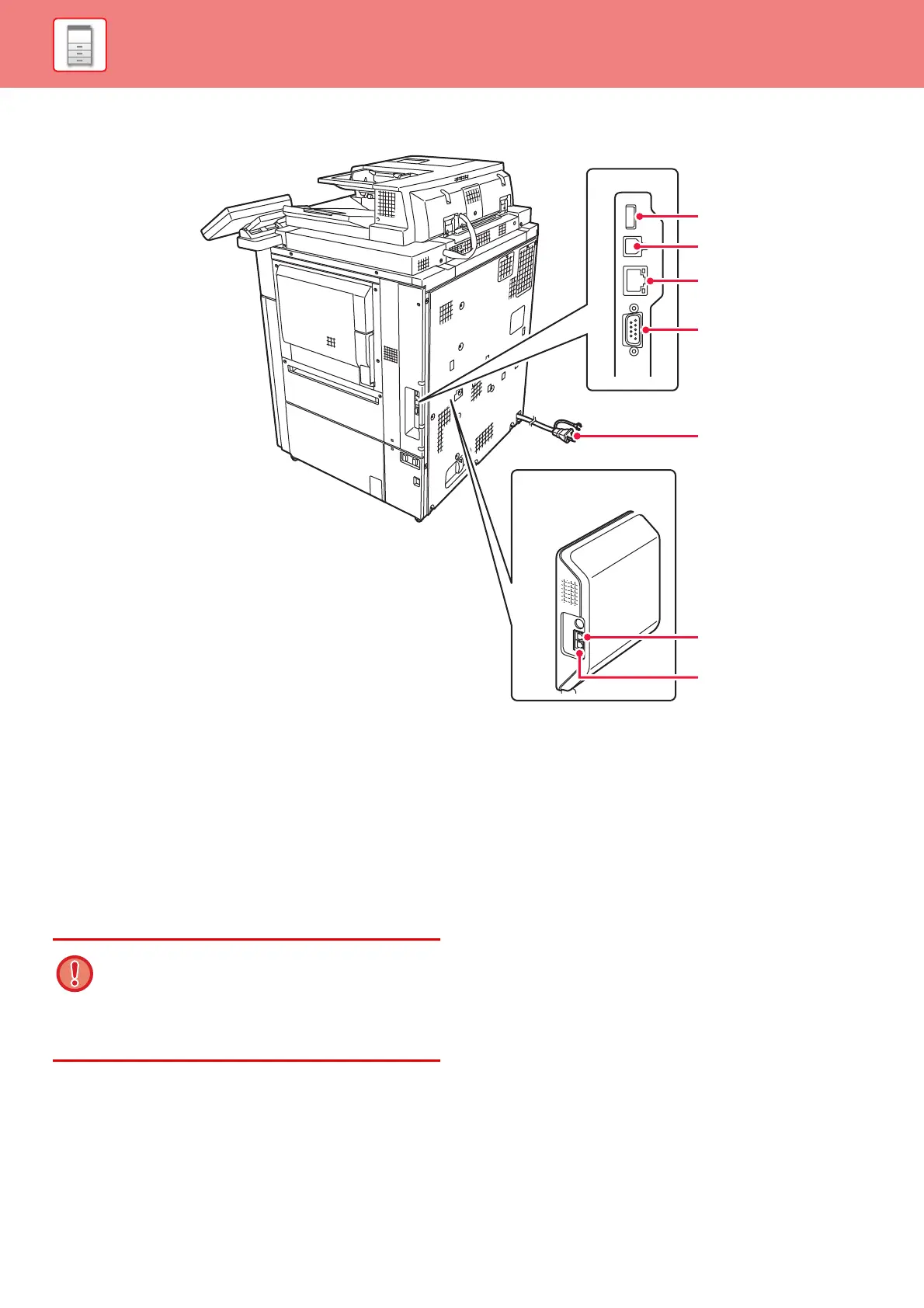

SIDE AND BACK
(1) USB connector (A type)
This is used to connect a USB device such as a USB
memory device to the machine.
Supports USB 2.0 (Hi-Speed).
(2) USB connector (B type)
Cannot be used.
(3) LAN connector
Connect the LAN cable to this connector when the
machine is used on a network.
Use a shielded LAN cable.
(4) Service-only connector
(5) Power plug
(6) External telephone line jack
When the fax function of the machine is used, an
extension phone can be connected to this jack.
(7) Telephone line jack
When the fax function of the machine is used, the
telephone line is connected to this jack.
(1)
(3)
(2)
(4)
(5)
(6)
(7)
Facsimile expansion kit
(Option)
This connector is for use only by service technicians.
Connecting a cable to this connector may cause the
machine to malfunction.
Important note for service technicians:
The cable connected to the service connector must be
less than 118" (3 m) in length.
To Next Page
