BEFORE USING THE MACHINE►HOW TO PLACE THE ORIGINAL
Allowed original sizes
When the original is a non-standard size, see the appropriate explanation below for the mode you are using.
► COPIER: "SELECTING THE ORIENTATION AND SIZE OF THE ORIGINAL (page 2-29)"
► FAX: "SPECIFYING THE ORIGINAL SCAN SIZE USING NUMERIC VALUES (page 4-46)"
► IMAGE SEND: "SPECIFYING THE ORIGINAL SCAN SIZE USING NUMERIC VALUES (page 5-48)"
Allowed original weights
1-sided scanning: 9 lbs Bond to 110 lbs Index (35 to 205 g/m
2
)
2-sided scanning: 13 to 110 lbs Index (52 to 205 g/m
2
)
To scan originals from 9 to 13 lbs Bond (35 to 49g/m
2
), use "Slow Scan Mode" in the "Others" function. Scanning without
using "Slow Scan Mode" may result in original misfeeds.
When "Slow Scan Mode" is selected, automatic 2-sided scanning is not possible.
Minimum original size Maximum original size
Standard size
(Minimum size that can be automatically detected)
5-1/2" (longitudinal) × 8-1/2" (transversal)
148 mm (longitudinal) × 210 mm, or A5
Non-standard size
(Minimum size that can be specified manually)
5-1/8" (longitudinal) × 5-1/2" (transversal)
131 mm (longitudinal) × 140 mm (transversal)
Standard size
(Maximum size that can be automatically detected)
11" (longitudinal) × 17" (transversal)
297 mm (longitudinal) × 420 mm (transversal) or A3
12" × 18" (A3W) cannot be used.
Non-standard size
(Maximum size that can be specified manually)
Copy mode:
11-5/8" (longitudinal) × 17" (transversal)
297 mm (longitudinal) × 432 mm (transversal)
Image send mode:
11" (longitudinal) × 39-3/8" (transversal)
297 mm (longitudinal) × 1000 mm (transversal)

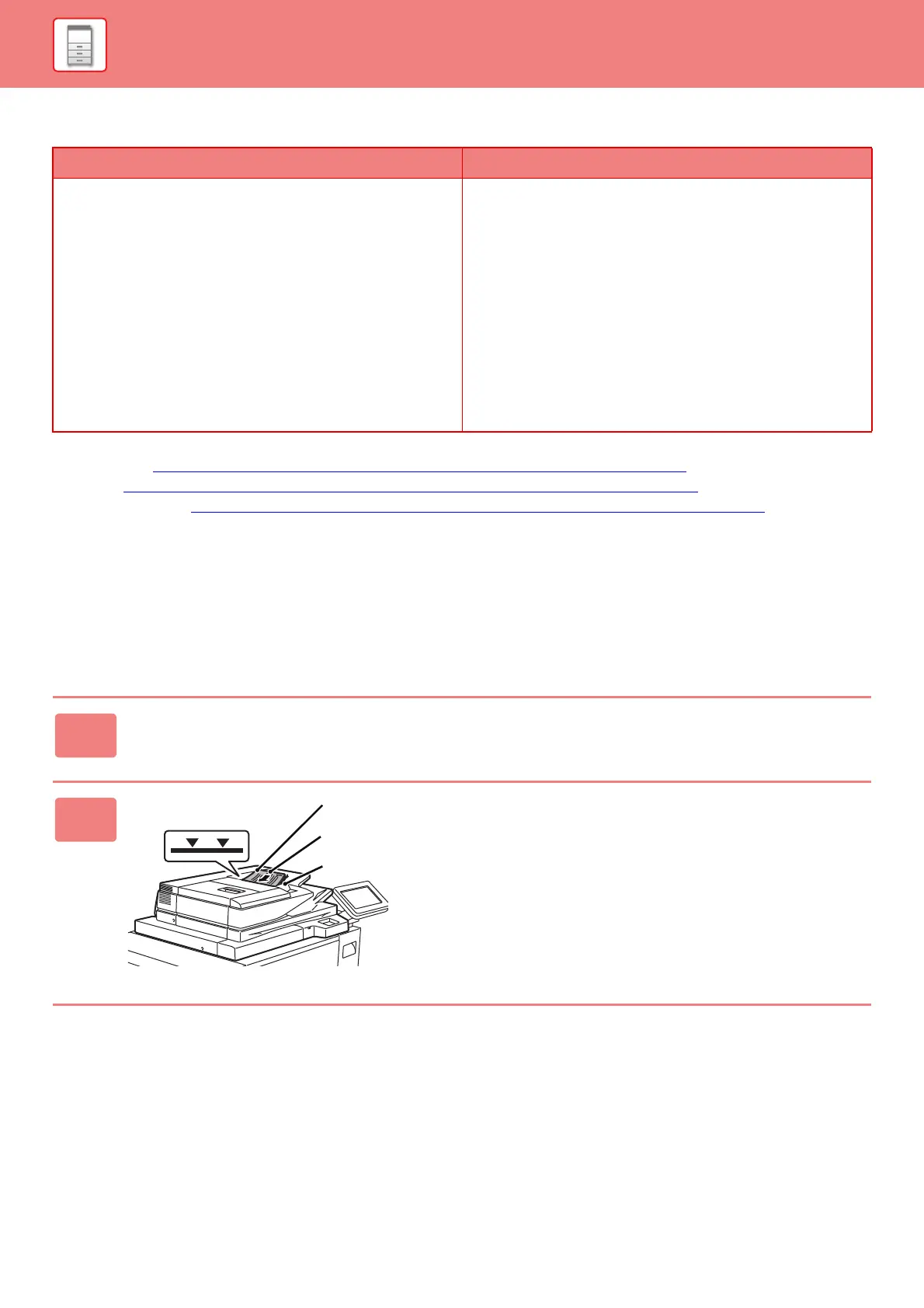

1
Make sure that there is no original on the document glass.
2
Place the original.
Up to 250 sheets can be inserted.
After scanning is finished on the automatic document feeder,
remove originals from the original exit tray.
Align the edges evenly
and face them up
Insert to the end
Fit to the Original Size
Below the indicator line
