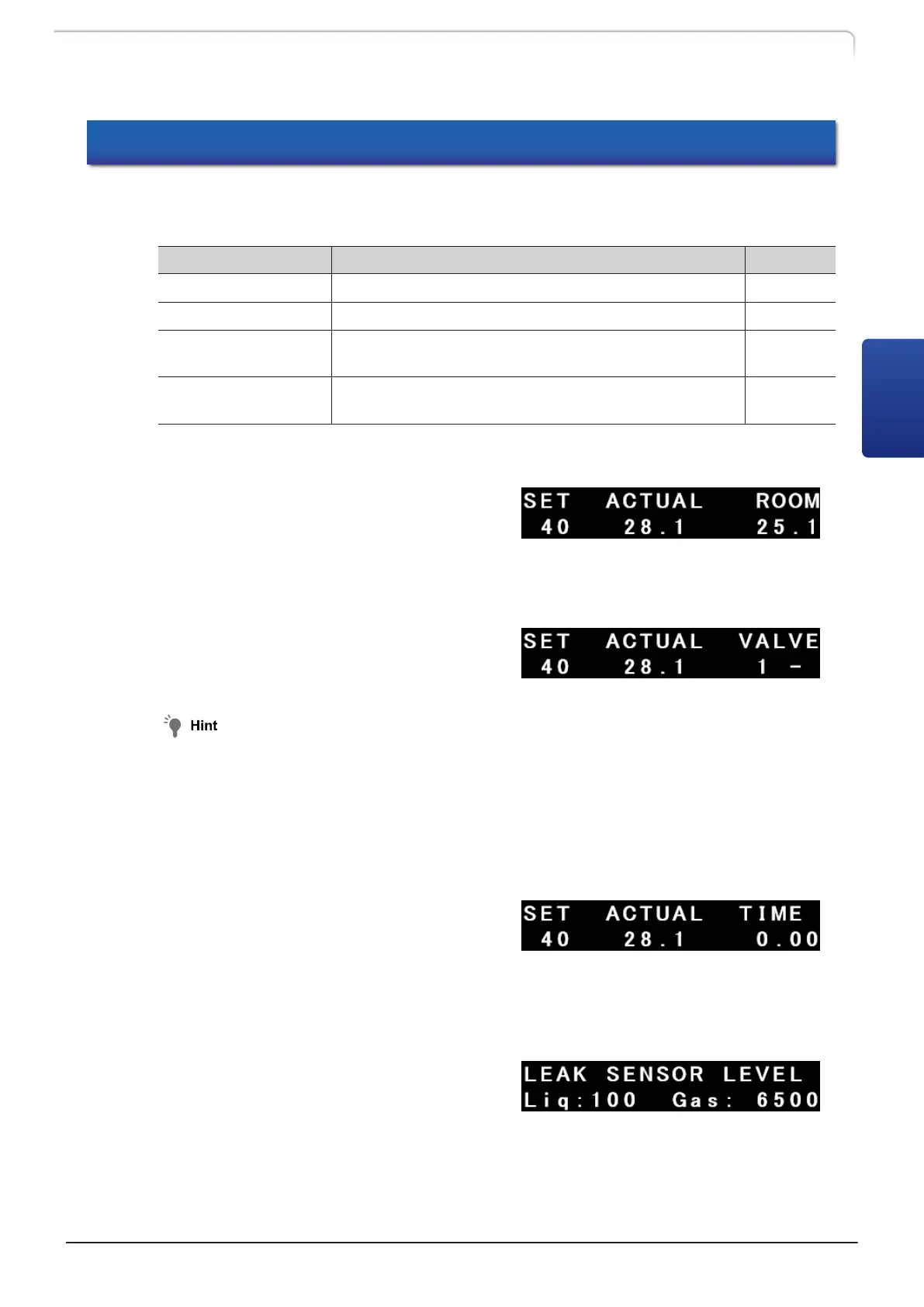

3.3 Monitoring Screens
This section describes the monitoring screens.
Press [↓] on the initial screen to show the various types of information.
Name Description Reference
ROOM Displays the room temperature. P.19
VALVE Displays the flow line of automatic column switch valve. P.19
TIME
Displays the time that elapsed after a time program
was started.
P.19
LEAK SENSOR LEVEL
Displays the detected values of the liquid leak sensor
and the gas sensor.
P.19
n Displaying the room temperature《ROOM》
Displays the room temperature (°C).
n
Displaying the flow line of automatic column switch valve《VALVE》
The panel displays the flow lines of
automatic column switch valves when they
are installed.
The
left value below [VALVE] indicates the flow line of the switching valve installed on the
left of the instrument (VALVE1). The right value under [VALVE] indicates the flow line of
the valve installed on the right (VALVE2). Without a valve installed, "-" is displayed.
The example shows that the flow line of the [VALVE1] (left) is "1" and that [VALVE2]
(right) is not installed.
n Displaying the program elapsed time《TIME》
While a time program is running, the
panel displays the time that elapsed after
the program was started.
n Displaying the detected concentration values of the liquid leak sensor and the gas
sensor《LEAK SENSOR LEVEL》
Displays the detected concentration values
of the liquid leak sensor and the gas
sensor.
CTO-40C CL
19
