3.8.2
Connection of Remote Cable
1

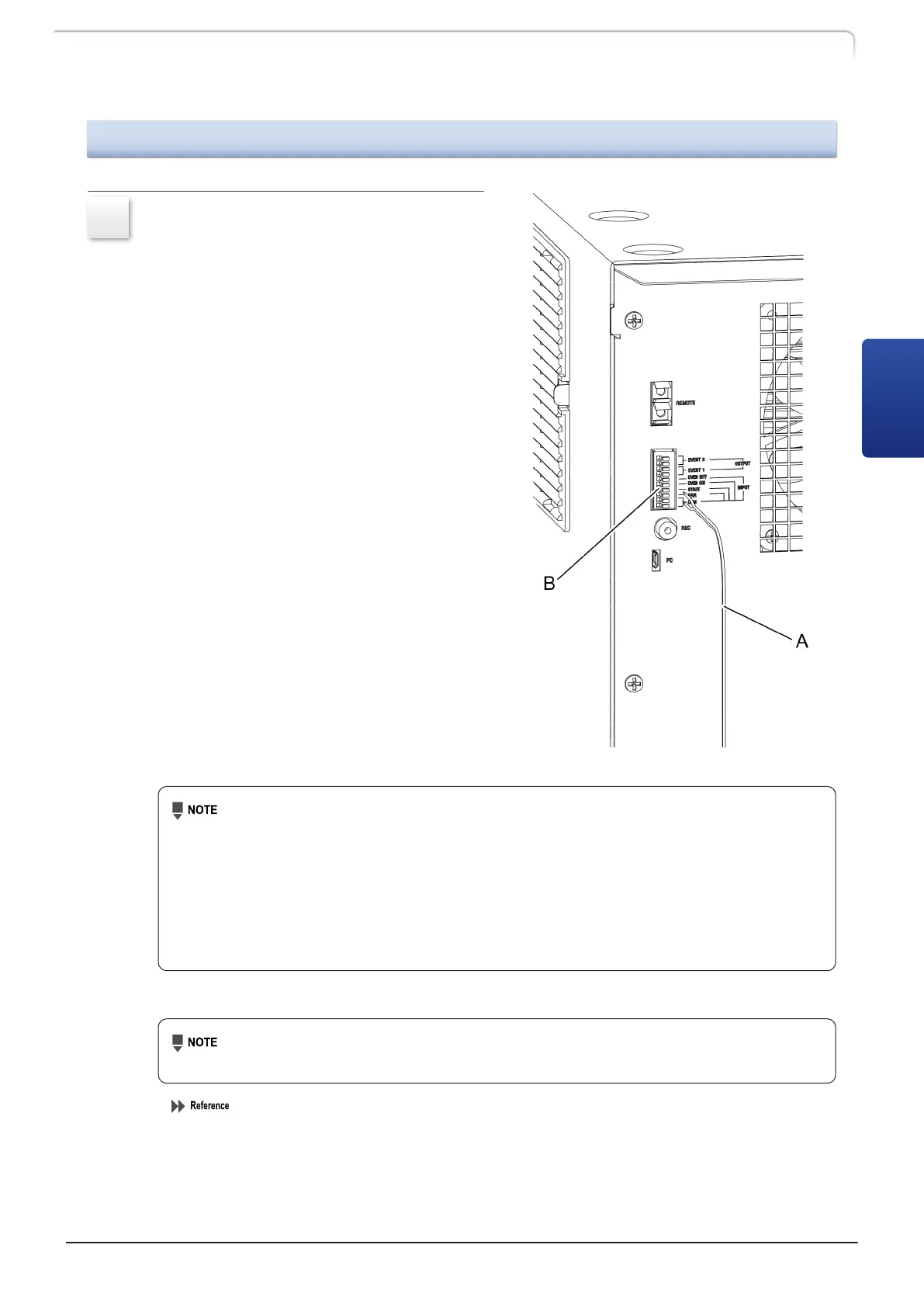

Insert the optional remote cable (A)
into the external input/output
terminals (B).
When connecting two or more circuits to the terminals, purchase additional
options or use the wires shown below.
• Cable with single wire: φ0.4 to φ1.2 (AWG26 to 16)
• Cable with stranded wire: 0.3 mm
2
to 1.25 mm
2
(AWG22 to 16), diameter
of single wire of φ0.18 or thicker
To prevent disconnection, the cable with stranded wire is recommended.
When using the [EVENT1] or [EVENT2] signal, set [EVENT1] or [EVENT2] and
[SELECT EVENT1] or [SELECT EVENT2] in the auxiliary functions.
"Setting the EVENT1 output terminal《EVENT1》" P.23
"Setting the EVENT2 output terminal《EVENT2》" P.23
"Setting the Power Button《POWER BUTTON》" P.24
"Setting the function of the EVENT2 output terminal《SELECT EVENT2》" P.26
CTO-40C CL
53
3.8 Connection to External Input/Output Terminals
3
To Next Page
