Shimadzu EI-D3203M - Operation Procedures; 6.3 Start-up Procedures

SECTION 6 OPERATION
30
263-13228
6

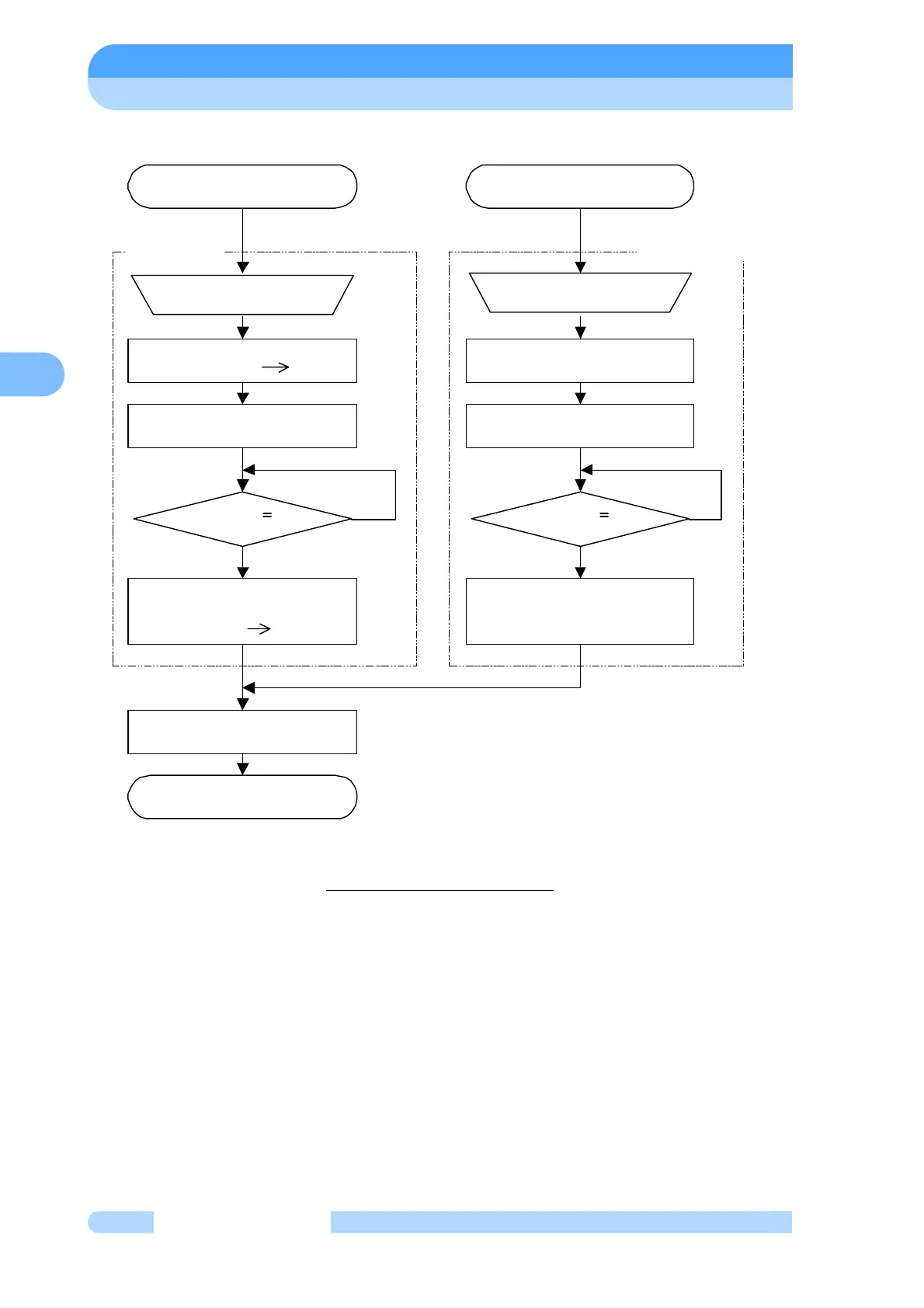

Fig. 6-2 Start-up Flowchart
NO
YES
Pump start-up complete.
REMOTE
operation
LOCAL
operation
ROTATION lamp lights.
Press the START switch. Input "START" signal.
"ACCELERATION" signal
output ON.
"ROTATION" signal output ON.
"ACCELERATION" signal
output OFF.
"NORMAL" signal output ON.
Start-up flowchart
(LOCAL operation)
LCD monitor mode/operation mode
Display : "STOP" "ACC."
NORMAL SPEED lamp lights.
LCD monitor mode/operation mode
Display : "ACC." "NORMAL"
Acceleration stops at rated
speed , speed is maintained.
Speed >
80% reted speed
Speed >
80% reted speed
NO
YES
Start-up flowchart
(REMOTE operation)
