Shimadzu EI-D3203M - 6.5 Variable Speed Operation

SECTION 6 OPERATION
32
263-13228
6
Start-up to Low Speed Rotation

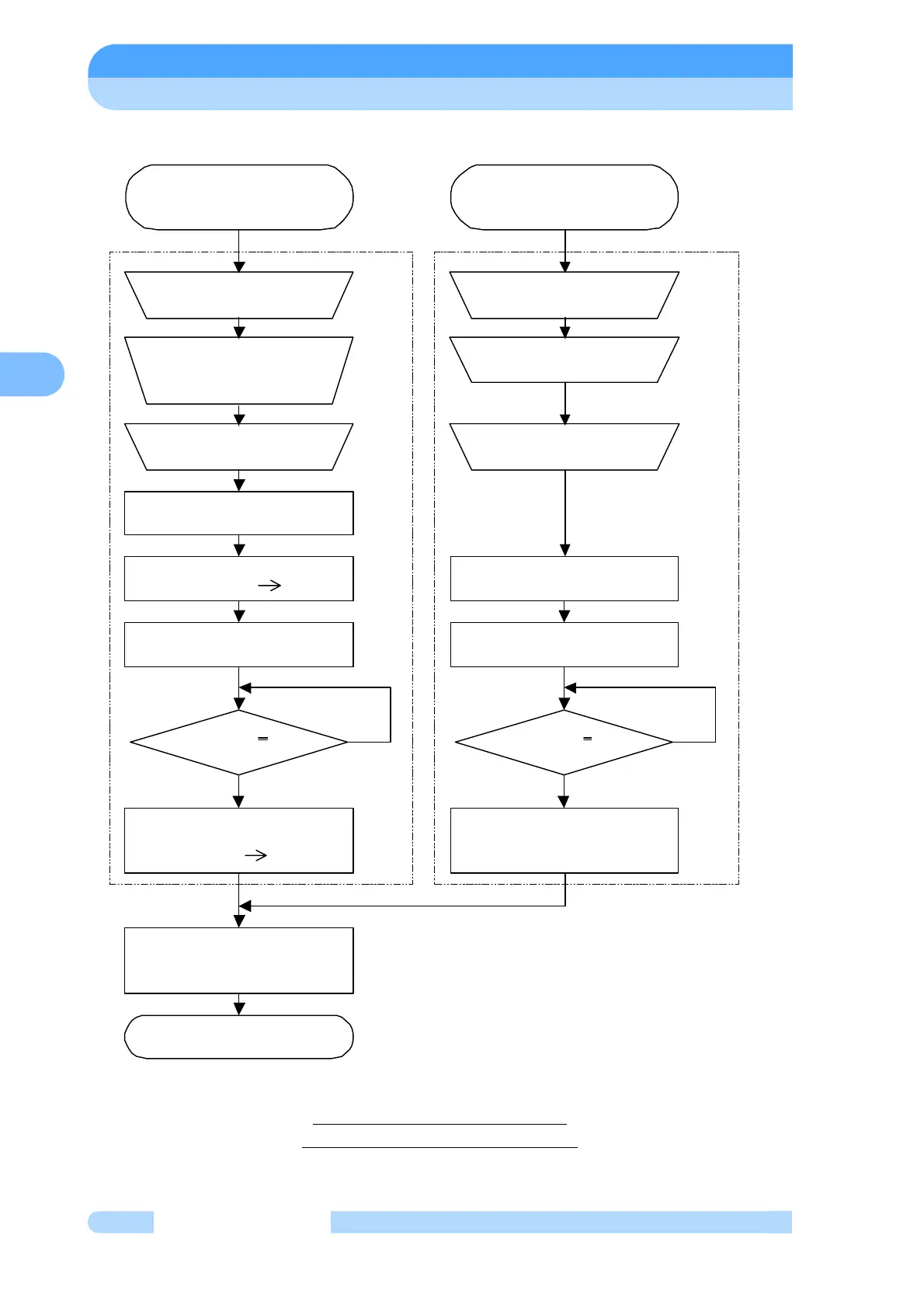

Fig. 6-4 Speed Setting Flowchart
Select the LOW SPEED mode
using the LCD setting
mode/low speed setting.
NO
YES
Speed setting complete.
ROTATION lamp lights.
" ? " is displayed after the LCD
monitor mode/speed display
Press the START switch.
Set the low speed value in the
LCD setting mode.
Input "LOW SPEED" signal.
Input "START" signal.
"ACCELERATION" signal
output ON.
"ROTATION" signal output ON.
Speed setting flowchart
Start-up to low speed rotation
(LOCAL operation)
(Note 1)
Speed >
80% low-speed value
NORMAL SPEED lamp lights.
LCD monitor mode/operation mode
Display : "ACC." "NORMAL"
LCD monitor mode/operation mode
Display : "STOP" "ACC."
Speed setting flowchart
Start-up to low speed rotation
(REMOTE operation)
Acceleration stops at the set low
speed value and the speed is
maintained.
Set the low speed value in the
LCD setting mode.
(Note 1)
(Note 1) After this setting has been made once,
it does not have to be repeated each time.
"ACCELERATION" signal
output OFF.
"NORMAL" signal output ON.
NO
YES
Speed >
80% low-speed value
