7. Temperature-controlled Meter SHINI(0-199℃)
7.1 Applicable Models
SHD
SDL
7.2 Products Information
The temperature-controlled meter for the ARICO
production deviations temperature-controlled meter,
temperature range is 0~199℃.
7.3 Panel Description

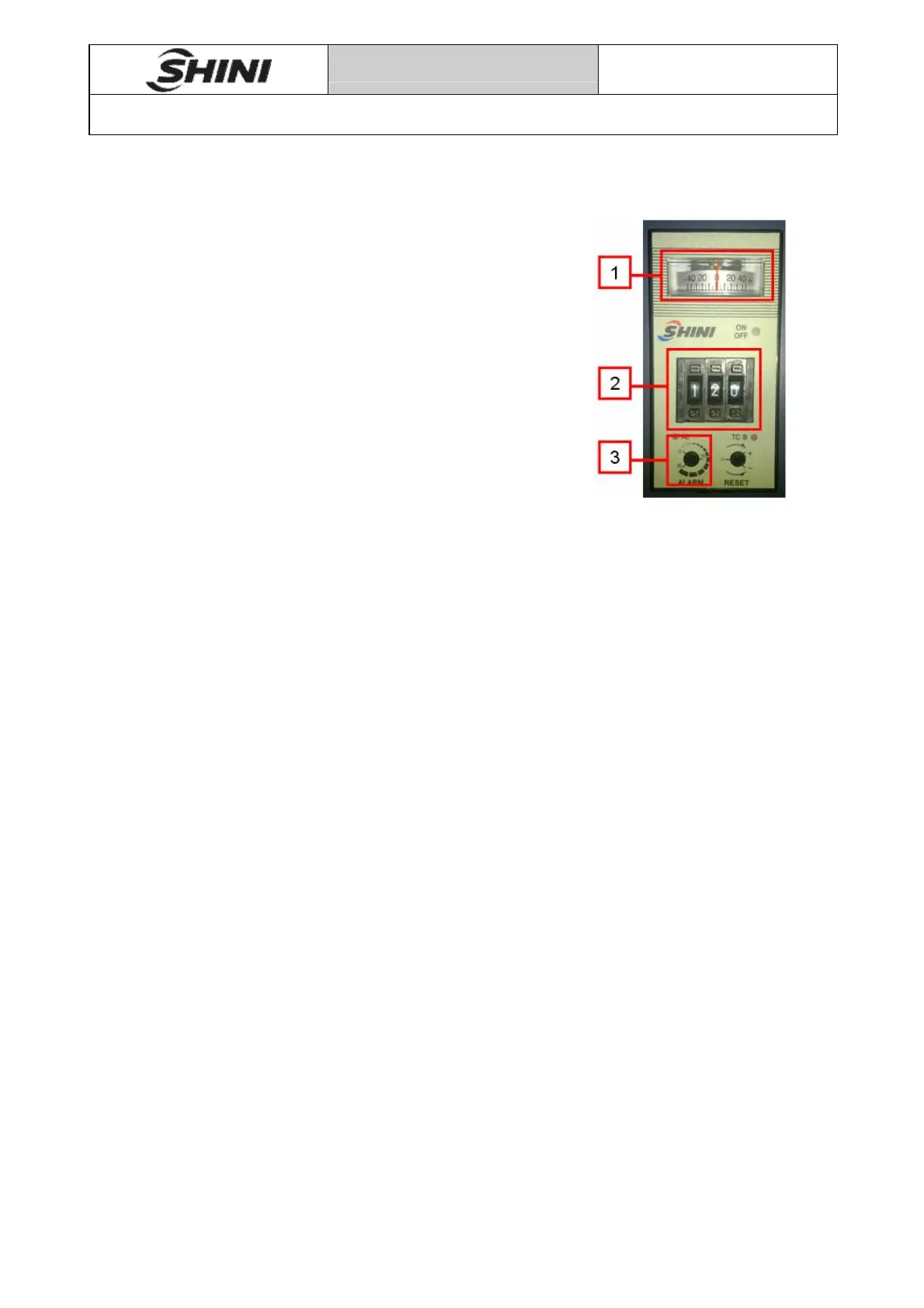

Pic 7-1
As shown above each figure:
1. Temperature difference display area. For displaying the difference between the
actual temperature and the set temperature; if the actual temperature is lower
than the set temperature, the pointer to the left (negative direction) deflect, and on
the contrary to the right (positive direction) deflect.
2. Temperature setting area. Setting values range is 0~199℃.
3. Over-temperature alarm values setting knob. When actual temperature ≥ setting
temperature + alarm values, there is a alarm output, factory setting is 15℃.
Temperature control panel lights instruction follows
ON/OFF：ON state is bright green, OFF state is bright red;
AL: Lights indicates over-temperature alarm output;
TC B：Lights indicates thermocouple break.
