18. Thermal Expansion Valve Opening Adjustment
18.1 Applicable models
SIC-A-R2、SIC-W-R2、SICC-A-R2、SICC-W、SIIC-A-R2
18.2 Adjustment method

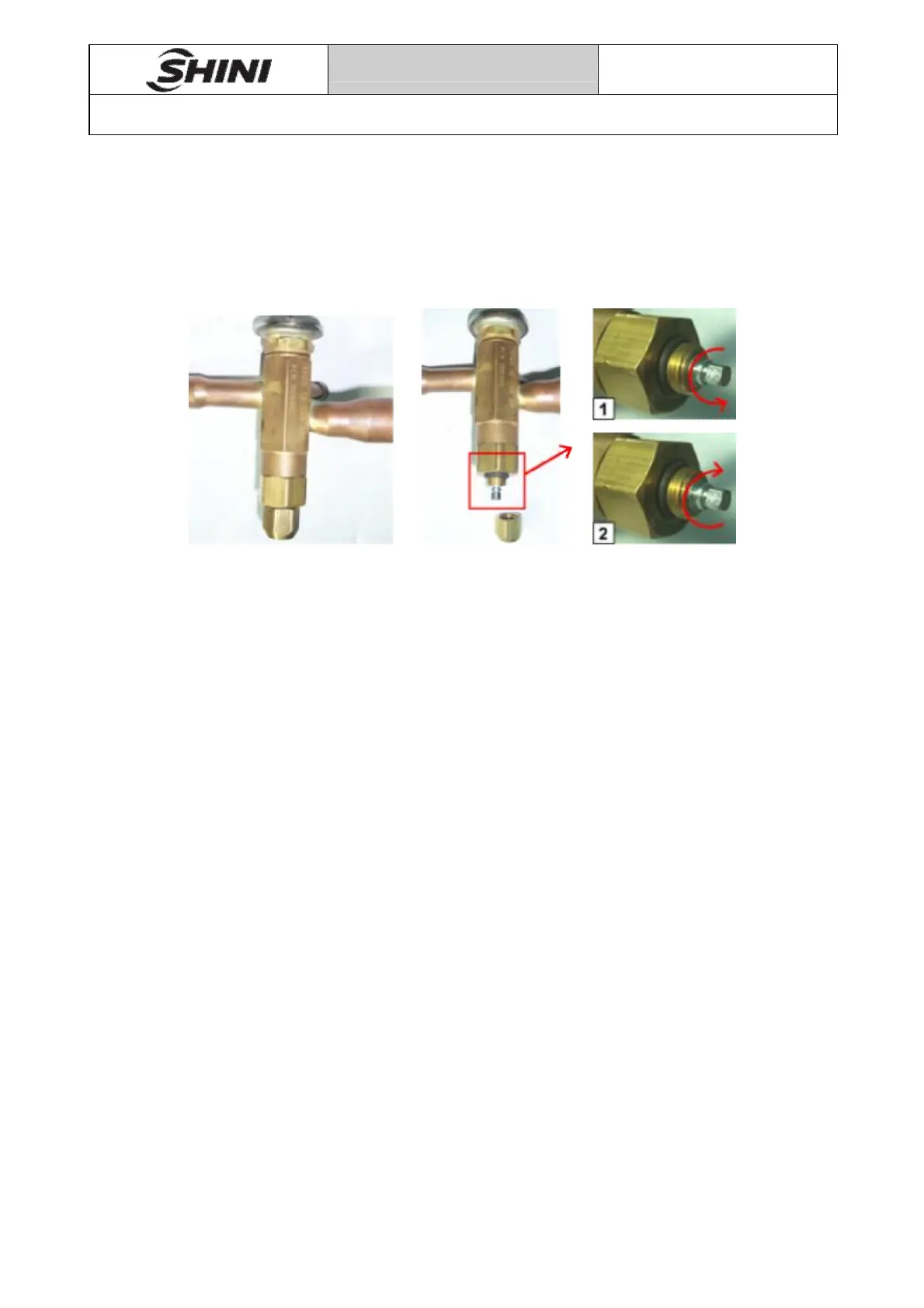

Pic 18-1
1. Loosen the nut in the button of thermal expansion valve, seen a knob, as
shown in the figure above.
2. To increase the degree of opening of the expansion valve, rotate the knob
counterclockwise, as shown in the figure 1 above; to reduce the degree of
opening of the expansion valve, rotate the knob clockwise, as shown in the
figure 2 above.
