16. Replace Carbon Brush
16.1 Products Information
There are three types of brush motor our company is currently using, supplier is
AMETEK, and models are 119625-00, 119656-00 and 122255-00.
16.2 Applicable Models
119625-00 fit for：SAL-700G。
119656-00 fit for：SAL-3U/6U/12U。
122255-00 fit for：SAL-1U。
16.3 Replace Carbon Brush
16.3.1 Brush Motor 119625-00
1. Remember to unplug the power to ensure that the motor is insulated.

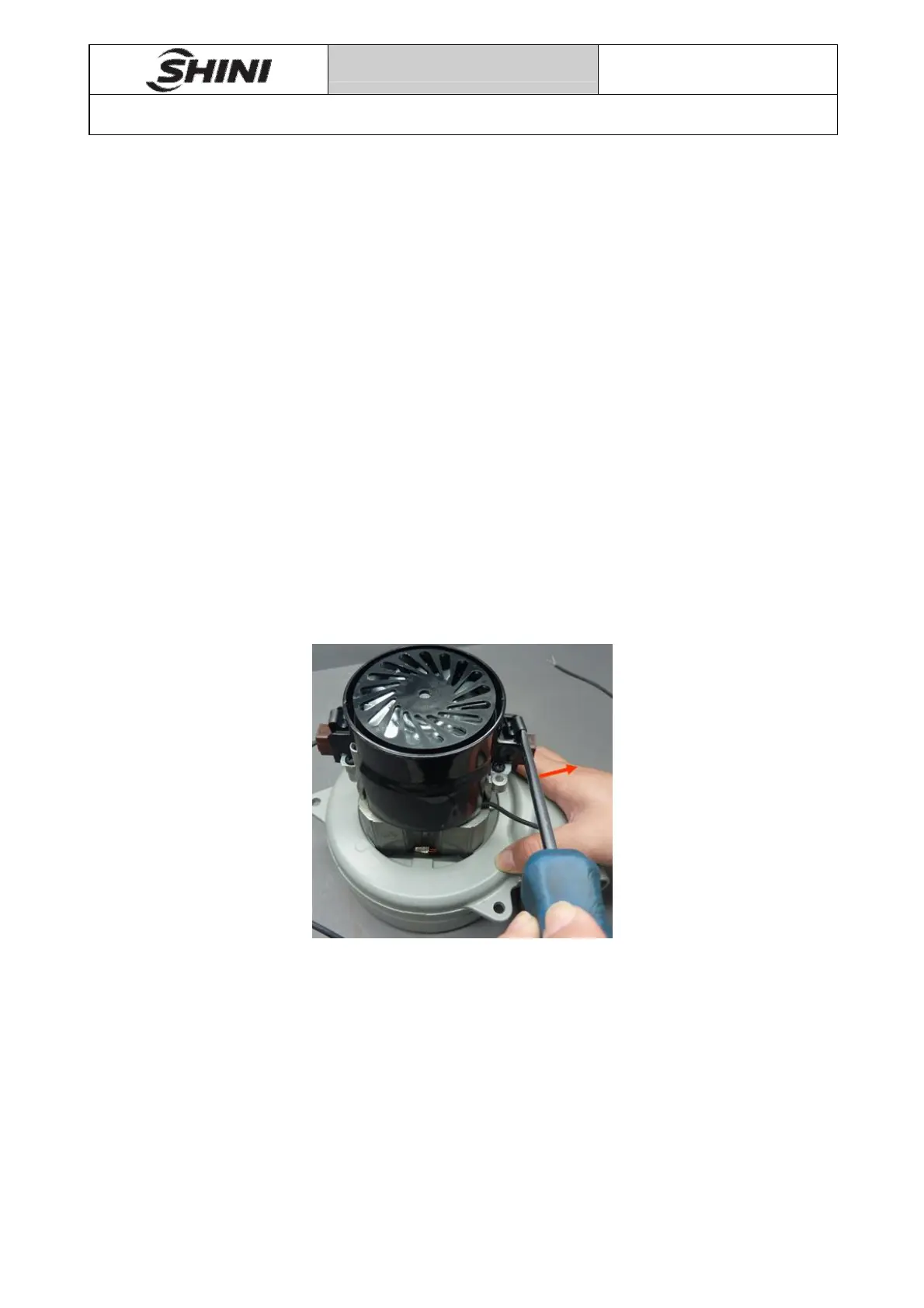

2. The flathead screwdriver inserted into the reed slot, screwdriver force in the
direction of the arrow to release the reed.
Pic 16-1
3. Motor protection cover is fixed to the four fixed buckle, use a screwdriver to pry
open the sides of the fixed deduction, (Be careful not to overexert prevent
deformation fracture upside down), then remove the protective cover up. As
shown in the figure below.
