19. Pressure Controller
19.1 Products Information
There are 7 types of pressure controller our company is currently using, and
models are HLP110, HLP520, HLP830HME, P1245LE, HLP830 and HLP830HLME.
Among them, HLP110 and HLP520 are single contact, the rest are double contact.
19.2 Applicable Models
HLP110 fit for: STM-PW, STM-HPW.
HLP520 fit for: STM-HPW.
HLP830HME fit for: STM-W, STM-WF.
P1245LE fit for: SIC-A-R2, SIC-W-R2, SICC-A-R2, SIIC-A-R2.
HLP830 fit for: SIC-3W/5W, SICC-60A/90A/120A.
HLP830HLME fit for: SIC-8W~50W, SIC-3A~50A.
19.3 Adjustment Method

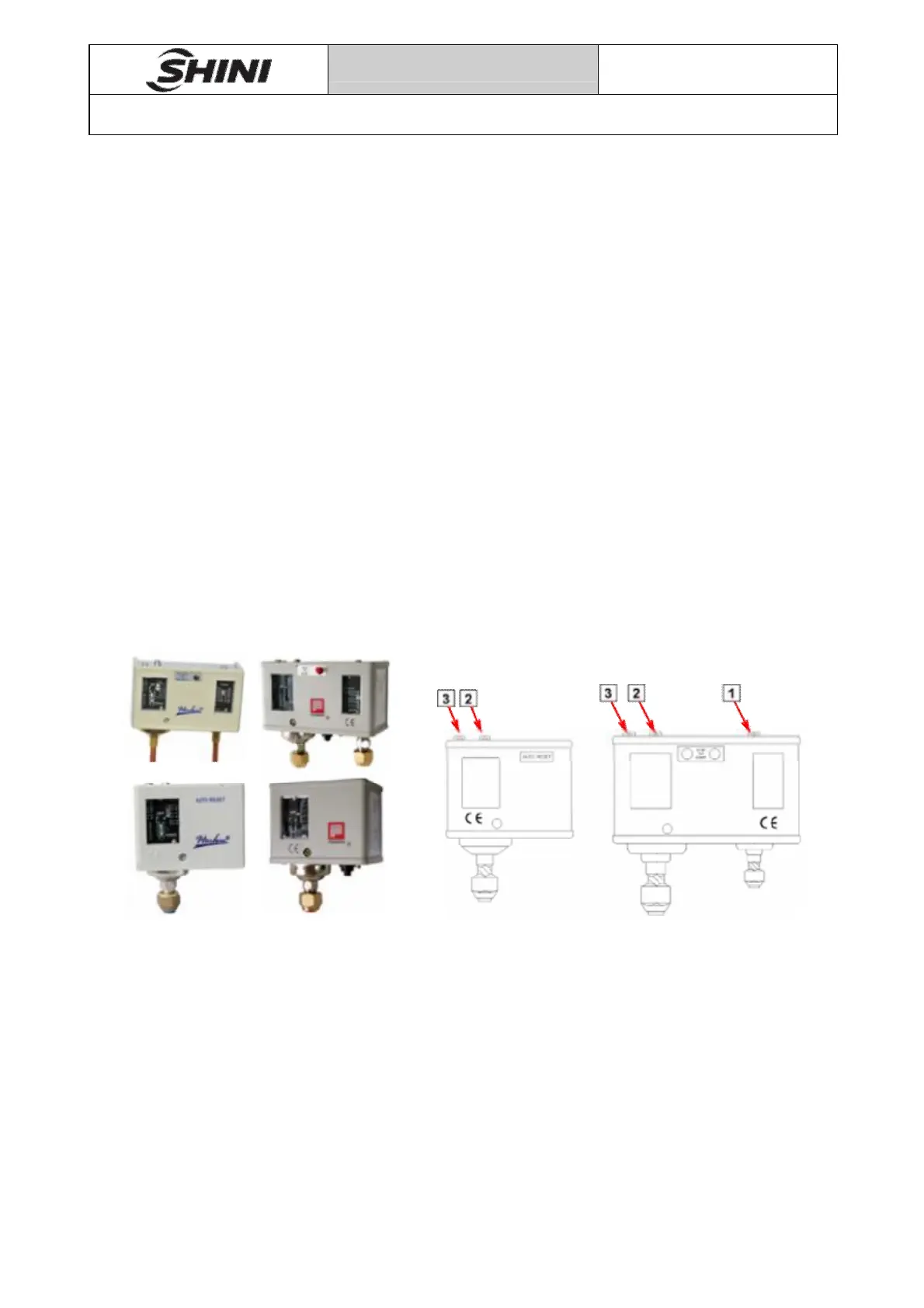

Pic 19-1
1- High-pressure adjustment screw 2- Low-pressure adjustment screw
3- Differential pressure adjustment screw (Valid only for low-pressure, some
models do not have the screw, and our company does not use the function of
screw)
Adjustment method: Use cross-screwdriver to rotate adjustment screw to desired
scale value. Clockwise to get smaller scale value, counter-clockwise to get larger
scale value.
