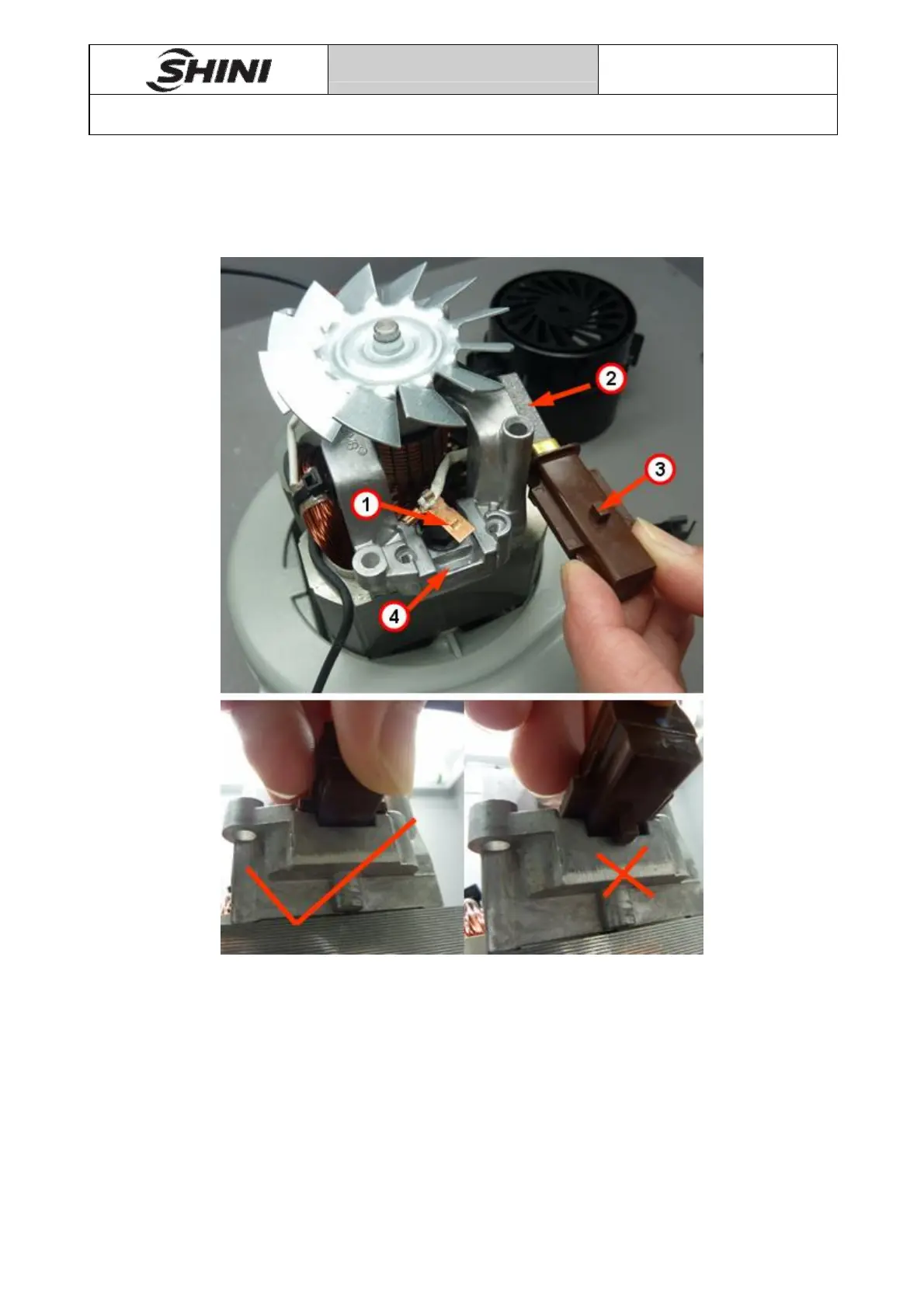

7. Loosen the inserts (Arrow 1 in figure), remove the carbon brush (Arrow 2 in figure),
and replace a new one. Note the small bump (Arrow 3) in the bottom of brush must
block bracket recess (Arrow 4).
Pic 16-6
