Using the Adapter (625 mm Tile Size)
For ceiling grids which measure 625 x 625 mm, attach the adapter to the array microphone and then follow the ceiling tile mounting instructions.
Note: Only for use with the 60 x 60 cm model

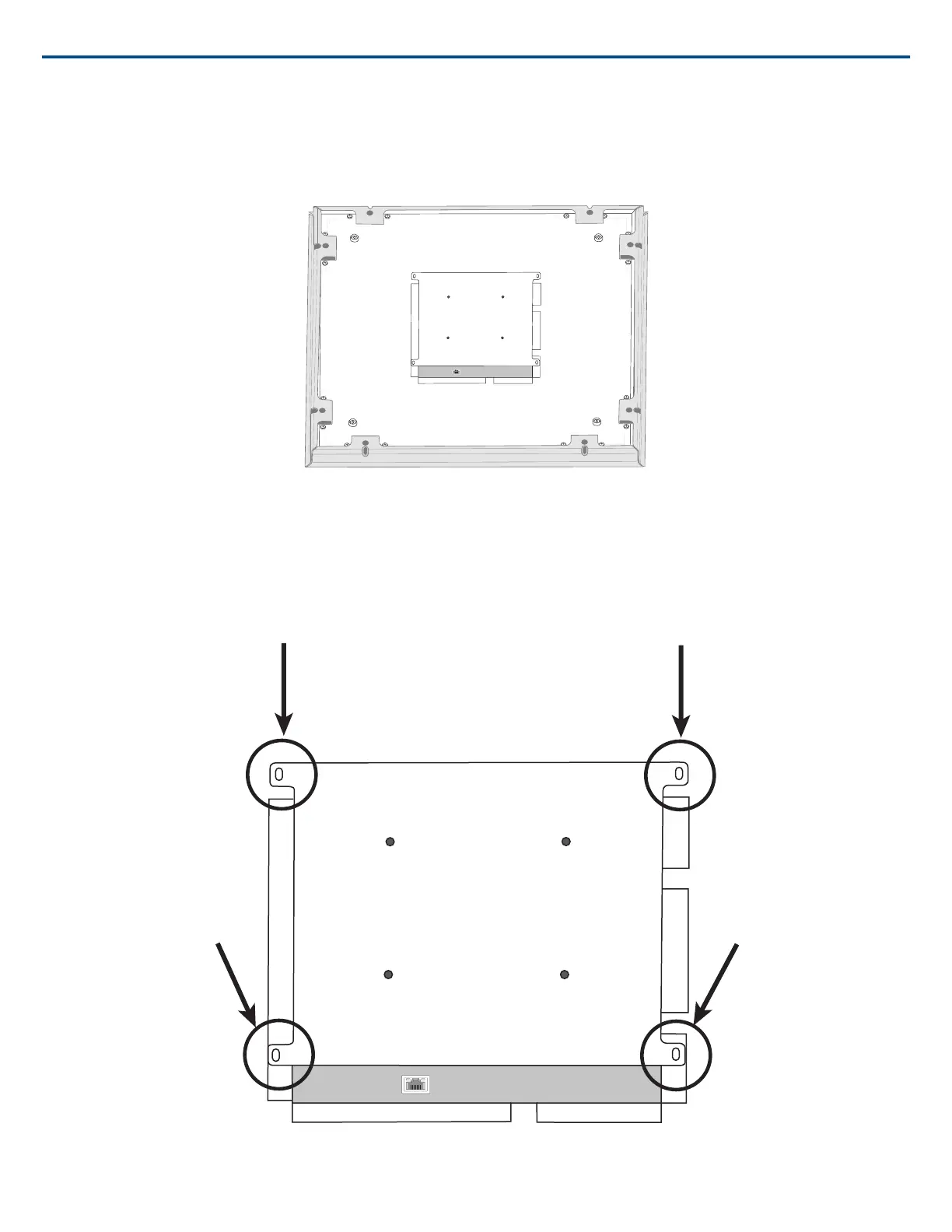

Screw the adapter pieces on as shown, using 2 screws per side.
Other Ceiling Tile Sizes
Mounting the microphone in a grid of a different size requires using a suspension mount option or modifying the ceiling grid.
Safety Tether
Shure IncorporatedMXA910 Ceiling Array Microphone
19/572017/10/18
