Chapter 5 Operating Instructions
C4000 Standard/Advanced
48 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 8009861/WA65/2012-06-12
Subject to change without notice
Installation and mounting

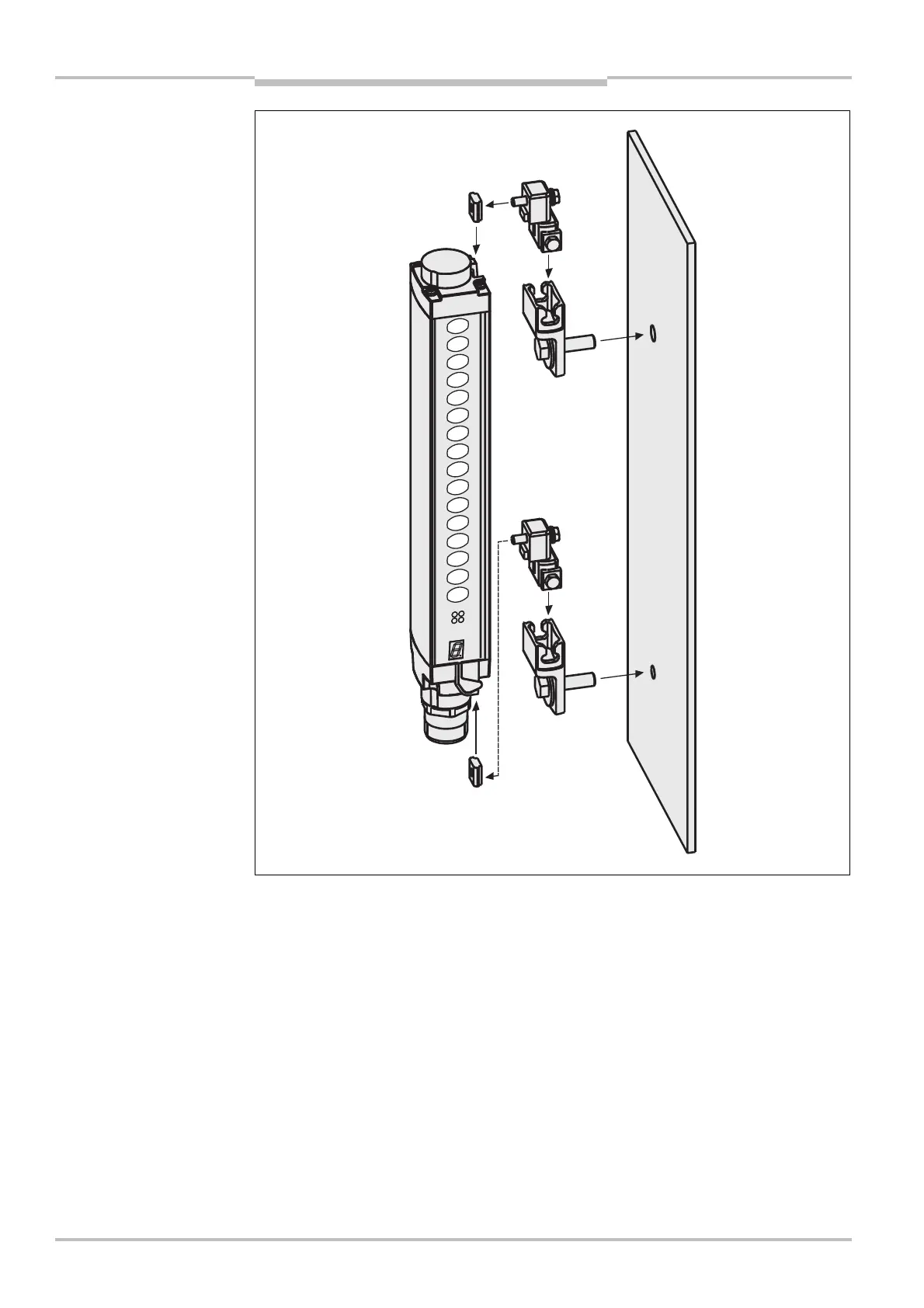

When mounting the side bracket make sure that the bolts marked and remain
accessible, allowing you later to adjust and lock the safety light curtain in position.
If you wish to use the additional front screen (see “Additional front screen (weld spark
guard)” on page 110), make sure that the curved side of the device remains accessible
after mounting.
with side bracket
