Installation and mounting
5.2.4 Mounting the C4000 Guest with swivel mount bracket Guest
The swivel mount bracket is made of sheet steel. The bracket is designed such that sender
and receiver can still be accurately aligned even after the bracket has been mounted.
The advantages of this bracket are quick and easy assembly. If the C4000 Guest needs to
be replaced, then by undoing the top bracket in the drawing (“centring mount”), the need
to re-align the replacement device can be avoided. The lock nut defines the alignment
(positioning mount).
The curvature on the centring mount fits exactly in the recess on the C4000 Guest . The
head on the hexagon screw on the positioning mount fits exactly in the hex socket on
the C4000 Guest .
 Align sender and receiver.
 Then lock the hexagon screw on the positioning mount using the nut .

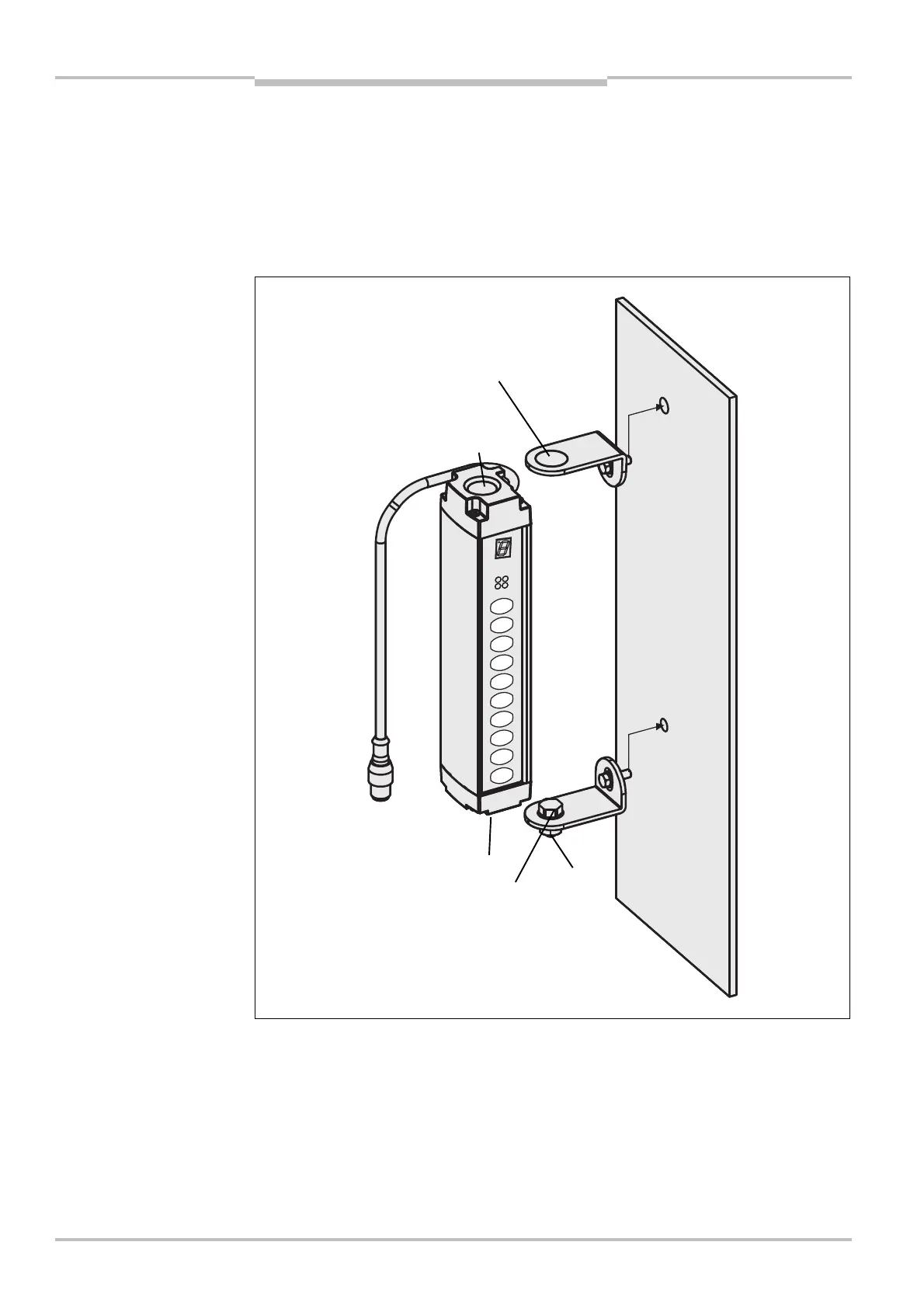

Fig.
31
:
Mounting sender and
receiver using swivel mount
brackets



Centring mount
Positioning mount

SICK C4000 Standard Specifications

General

Type	Safety Light Curtain
Number of Beams	Varies with protective field height and resolution
Safety Integrity Level	SIL3
Performance Level	PL e
Enclosure Rating	IP65, IP67
Type IEC	Type 4
Category	Category 4
Protective Field Height	300 mm to 1800 mm
Supply Voltage	24 V DC
Connection	M12 connector
Outputs	PNP
Resolution	14 mm, 30 mm
Operating Temperature	-25 °C ... +55 °C
