Chapter 6 Operating Instructions
C4000 Standard/Advanced
62 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 8009861/WA65/2012-06-12
Subject to change without notice
Electrical installation
6.12 Test input (sender test)
The sender test is performed when 0 V is present at the test input (pin 3).
To be able to use the sender test button, you must also configure the Sender test function
with the aid of the CDS: Device symbol C4000 Host (sender), context menu Configuration
draft, Edit, option Enable sender test.
If you do not connect the test input, then you must deactivate the Sender test function
with the aid of the CDS. Otherwise, the safety light curtain remains permanently red.
6.13 sens:Control applications
Using sens:Control, the intelligent interface technology for safety systems, SICK provides
you with an entire range of interface products that were specially developed for interfacing
safety products and machines.
For complex applications the C4000 can be integrated into UE100 sens:Control family
safety systems. In this way the functions of the safety light curtain can be enhanced and
corresponding applications realised.
All C4000 Standard/Advanced variants are equipped with an EFI (safe SICK device com-
munication). All safety-relevant signals are transmitted using this interface. A bus interface
to a safe fieldbus is possible using the series UE1000 Intelliface device family.
You will find example circuits in the operating instructions for the series UE100 and
UE1000.

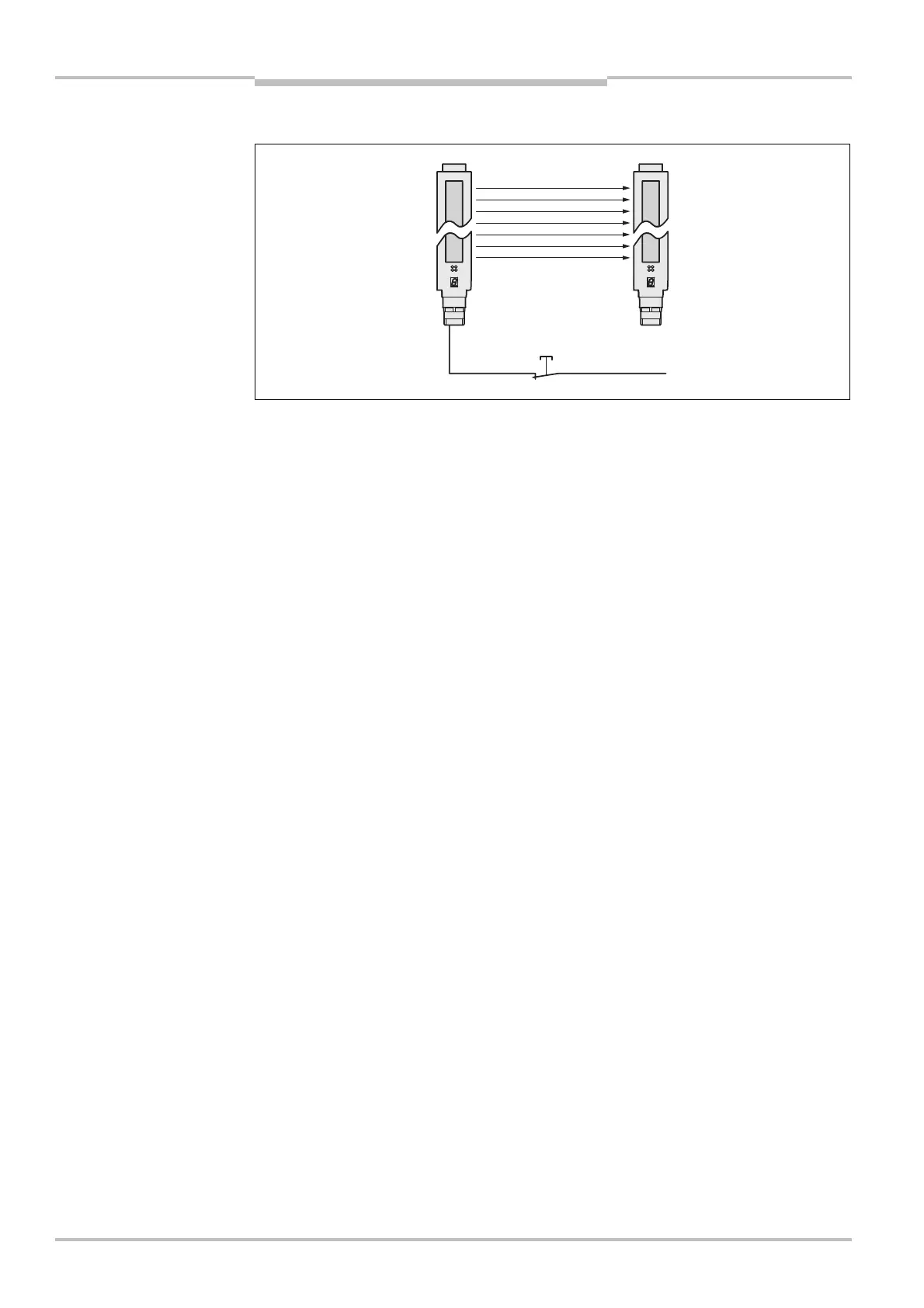

Fig.
42
:
Connection of the
sender test button
Note
Note
24
V
DC
Pin 3
Sender test control, e.g.
using button
