Technical specifications
11.5.6 Swivel mount bracket
11.5.7 Side bracket
Fig.
49
:

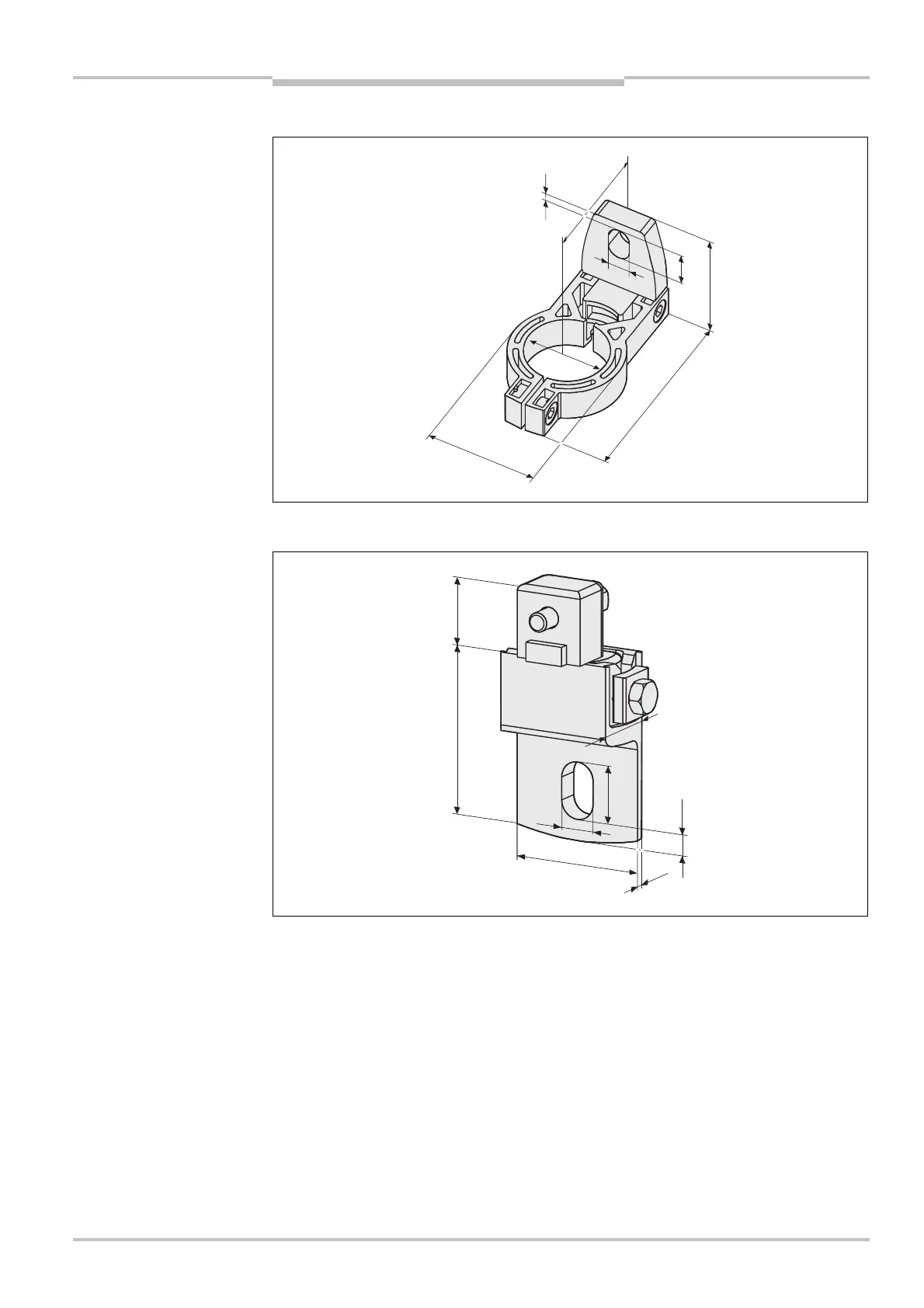

Dimensional drawing,
swivel mount bracket (mm)
Fig.
50
:
Dimensional drawing,
side bracket (mm)
42
75
8
3.8
44.4
30.6
44
13
Part No. 2019659
Part No. 2019506
19
50
9
5.5
34.5
15
18
6
