SICK C4000 Standard User Manual

Chapter 11 Operating Instructions
C4000 Standard/Advanced
88 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 8009861/WA65/2012-06-12
Subject to change without notice
Technical specifications
11.5.5 C4000 Standard/Advanced Guest
Protective field height S [mm] Dimension L [mm] Dimension A [mm]
150 220 76
300 380 224
450 530 374
600 680 524
750 830 674
900 981 825
1050 1131 975
1200 1281 1125
1350 1432 1276
1500 1583 1427
1650 1733 1504
1800 1884 1728

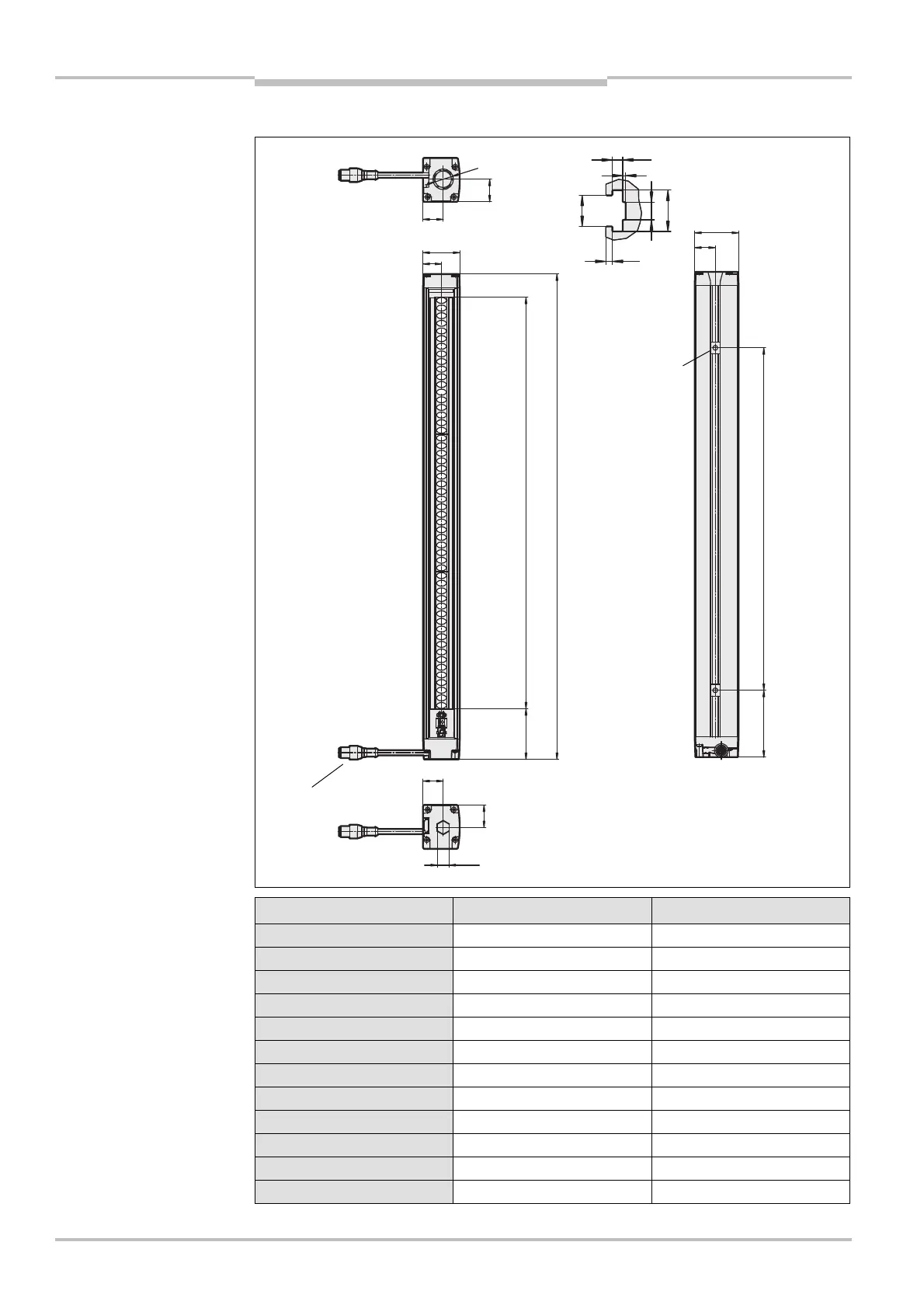

Fig.
48
:
Dimension
al drawing
C4000 Standard/Advanced
Guest, sender. Receiver
Mirror image
Tab.
40
:
Dimensions
depending on the protective
field height, C4000
Standard/Advanced Guest
22.4
10.5
55.2
14
M12
×
7
+
FE
21.9
L
S
73
24.5

20
A
Sliding nut groove
for side mounting
40
48
20
21.9
24.5
SW13
2.2
22.4
6
3.5
1

SICK C4000 Standard Specifications

General

Type	Safety Light Curtain
Number of Beams	Varies with protective field height and resolution
Safety Integrity Level	SIL3
Performance Level	PL e
Enclosure Rating	IP65, IP67
Type IEC	Type 4
Category	Category 4
Protective Field Height	300 mm to 1800 mm
Supply Voltage	24 V DC
Connection	M12 connector
Outputs	PNP
Resolution	14 mm, 30 mm
Operating Temperature	-25 °C ... +55 °C
