Operating Instructions Chapter 5
C4000 Standard/Advanced
8009861/WA65/2012-06-12 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 47
Subject to change without notice
Installation and mounting
5.2.2 Mounting with side bracket
The side bracket is made of die cast zinc ZP 0400. It is enamelled in black. The side
bracket will be covered by the device after mounting. But it is only suitable for mounting
surfaces lying parallel to the desired protective field because the alignment of sender and
receiver can only be adjusted by a maximum of ±2.5° after mounting.
 Attach the bolts of the side bracket with a torque of between 5 and 6 Nm. Higher
torques can damage the bracket; lower torques provide inadequate protection against
vibration.
 When mounting the bracket, note the distance and the position of the sliding nuts as
described in chapter 11.5 “Dimensional drawings” on page 84f.

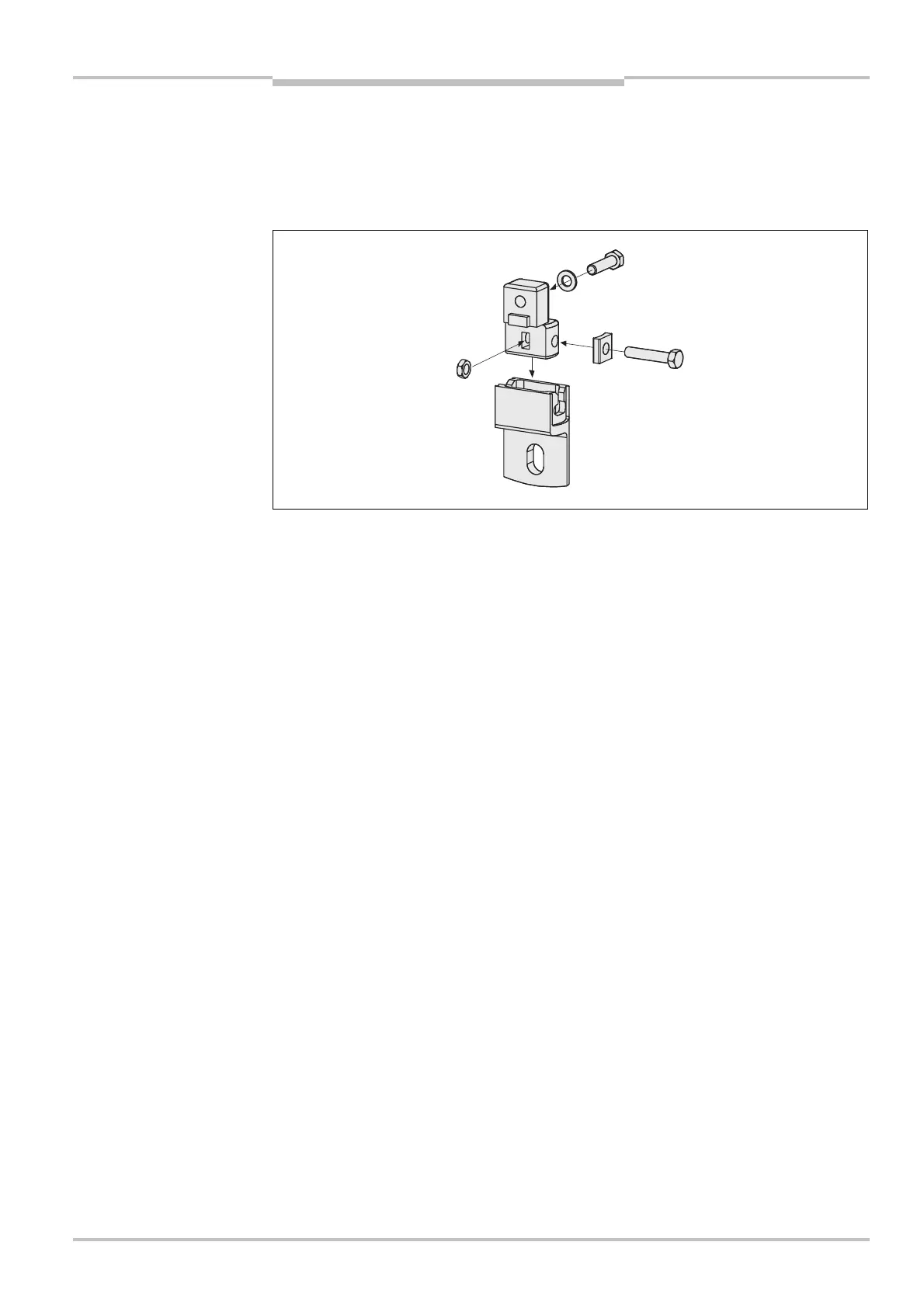

Fig.
28
:
Composition
of the
side bracket
Notes
Part No. 2019506

SICK C4000 Standard Specifications

General

Type	Safety Light Curtain
Number of Beams	Varies with protective field height and resolution
Safety Integrity Level	SIL3
Performance Level	PL e
Enclosure Rating	IP65, IP67
Type IEC	Type 4
Category	Category 4
Protective Field Height	300 mm to 1800 mm
Supply Voltage	24 V DC
Connection	M12 connector
Outputs	PNP
Resolution	14 mm, 30 mm
Operating Temperature	-25 °C ... +55 °C
