Product feature/function Characteristic
Data communication
■
Host interface: Ethernet, PROFINET protocol, data output format can be con‐
figured
■
AUX interface: USB (2.0)
1)
. Type-dependent, identifier see "Type code",
page 13. Data output format configurable
■
Aux interface: Ethernet TCP/IP, data output format configurable
PROFINET
■
PROFINET with integrated switch (Dual Port) in accordance with IEEE 802.3
for incorporation in line or ring network topologies
■
Local trigger input (hardware) for reading pulse, type-dependent, identifier
see "Type code", page 13

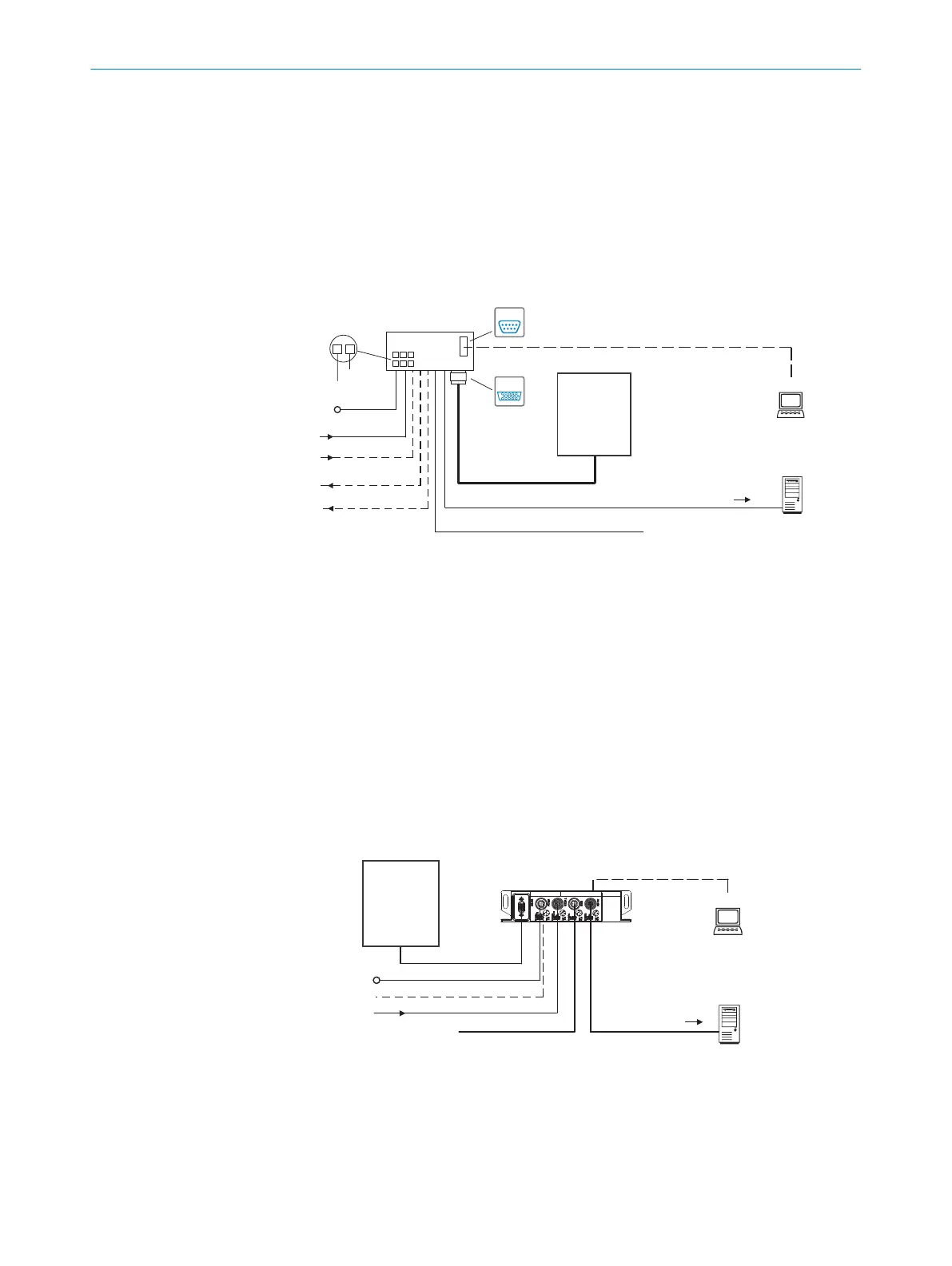

Electrical interfaces
■
Host interface (also AUX interface): 2 x Ethernet
■
Aux interface: 1 x USB
1)
, type-dependent, identifier see "Type code", page 13
■
MicroSD memory card, type-dependent, identifier see "Type code", page 13
■
Digital switching input (hardware): 1 x, type-dependent, identifier see "Type
code", page 13
■
Power supply
Wiring technique (design)
■
Space-saving, swivel connector on the device with two M12 round connec‐
tors, female connector, 4-pin, D-coded for Ethernet (PROFINET)
■
Cable (0.9 m), line connection integrated into the control unit.
Type-dependent in the following forms:
°
With POWER connection (male connector, M12, 4-pin, A-coded), type-
dependent, identifier see "Type code", page 13
°
With POWER connection + trigger input (male connector, M12, 5-pin, A-
coded), identifier see "Type code", page 13
Housing
■
Compact, industrial version in metal, IP 65, protection class III
■
Small dimensions, low weight
■
Various installation options via comprehensive range of mounting accessories
1)
Service interface, for temporary use only
3.2.5 Memory card
Depending on the type, the device has a card slot integrated in the housing. This slot
accommodates a memory card in microSD format.
NOTE
The memory card is optional and is not included with the delivery of the device.
To ensure that the memory card functions reliably, only use card types (industrial stan‐
dard) approved by SICK. You can find these as accessories online at:
•
www.sick.com/CLV61x_Dual_Port
The memory card has no write protection that can be activated.
Functions
An inserted memory card serves as a local external storage medium for the device out‐
side the internal device memory, see "Initial commissioning", page 43.
The device can execute the following functions using the memory card:
•
Cloning function: saving the currently valid parameter set
Automated additional storage of the parameter set with the configuration data of
the device on an external storage medium that is quickly accessible to the user.
This takes place as part of the recommended backup concept for the parameter
sets of the 4Dpro devices. The externally stored parameter set is also updated
automatically each time the currently valid configuration data is permanently
saved.
