1 2

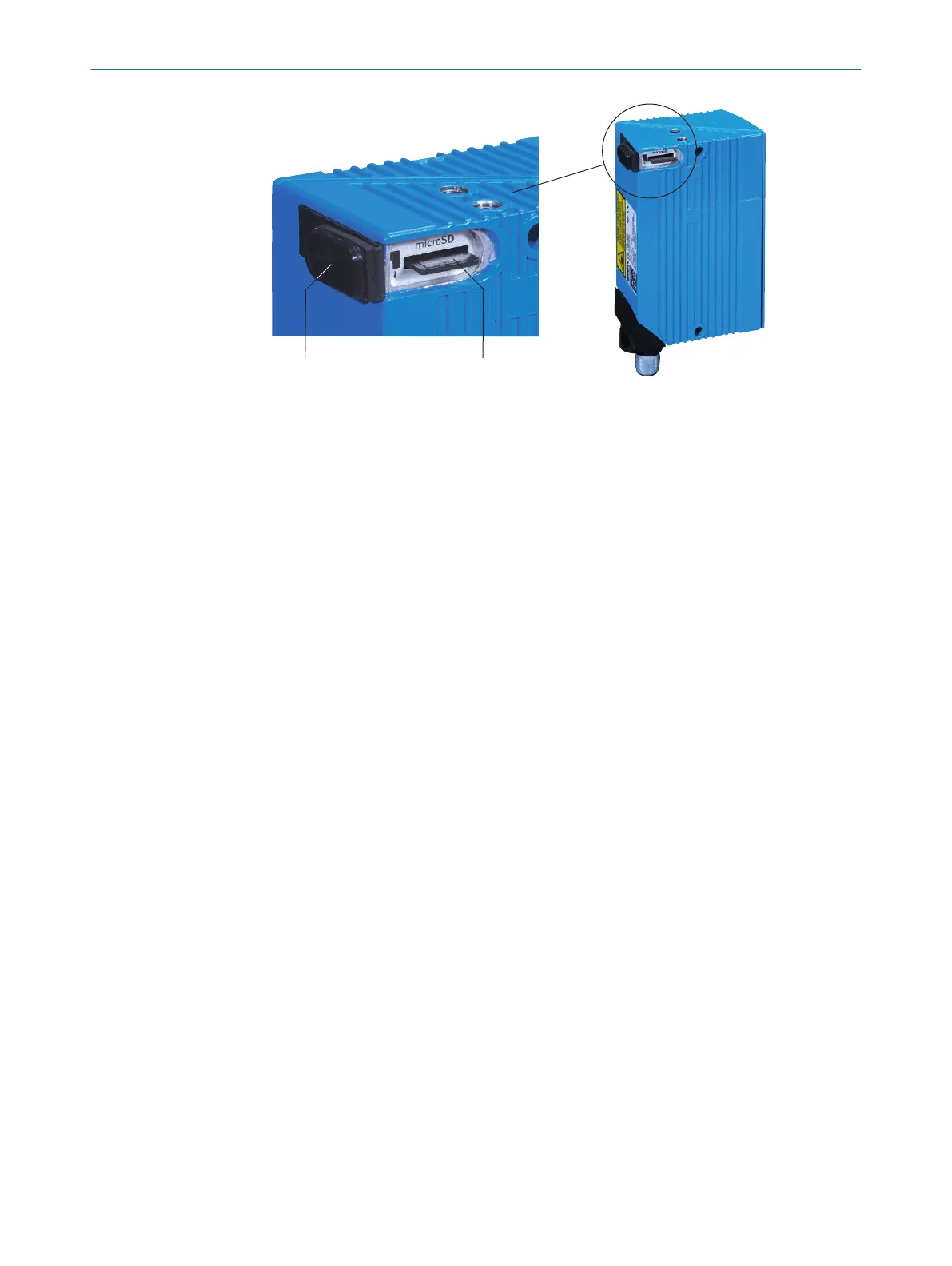

Figure 8: Slot for microSD memory card (only CLV61x-DxxXxx, with x = 3 oder 4), illustration may
differ
1
Open cover on the device
2
MicroSD memory card
1. Switch off the supply voltage to the device.
2. Open the black rubber cover.
To do so, carefully lift the flap of the rubber cover.
3. Making sure it is in the correct position, insert the memory card into the slot until
it locks into place. When doing this, position the contacts so that they are facing to
the rear and upwards, see the card symbol on the device.
4. Close the rubber cover. Make sure that the cover is completely flush with the hous‐
ing.
5. Switch on the supply voltage for the device.
Interpretation of the stored parameter set
Once it is switched on, the device automatically detects the presence of a memory card
and, depending on the card’s content, behaves as follows:
If the card is empty or if it contains a parameter set that cannot be interpreted by
the device, the device saves the currently valid internal parameter set to the card
(provided there is sufficient storage space). The device then starts with the inter‐
nal parameter set.
If the card contains a parameter set that can be interpreted by the device, the
device permanently overwrites the currently valid internal parameter set with this
external parameter set. The device then starts with the new valid parameter set.
The goal is for the internal parameter set and the parameter set saved externally
to always be identical.
The highest-ranking parameter set is used by the device when operated in the
PROFINET with the following sequence hierarchy:
PRODUCT DESCRIPTION 3
8017842/ZOK7/2019-02-01 | SICK O P E R A T I N G I N S T R U C T I O N S | CLV61x DualPort (PROFINET)
23
Subject to change without notice
