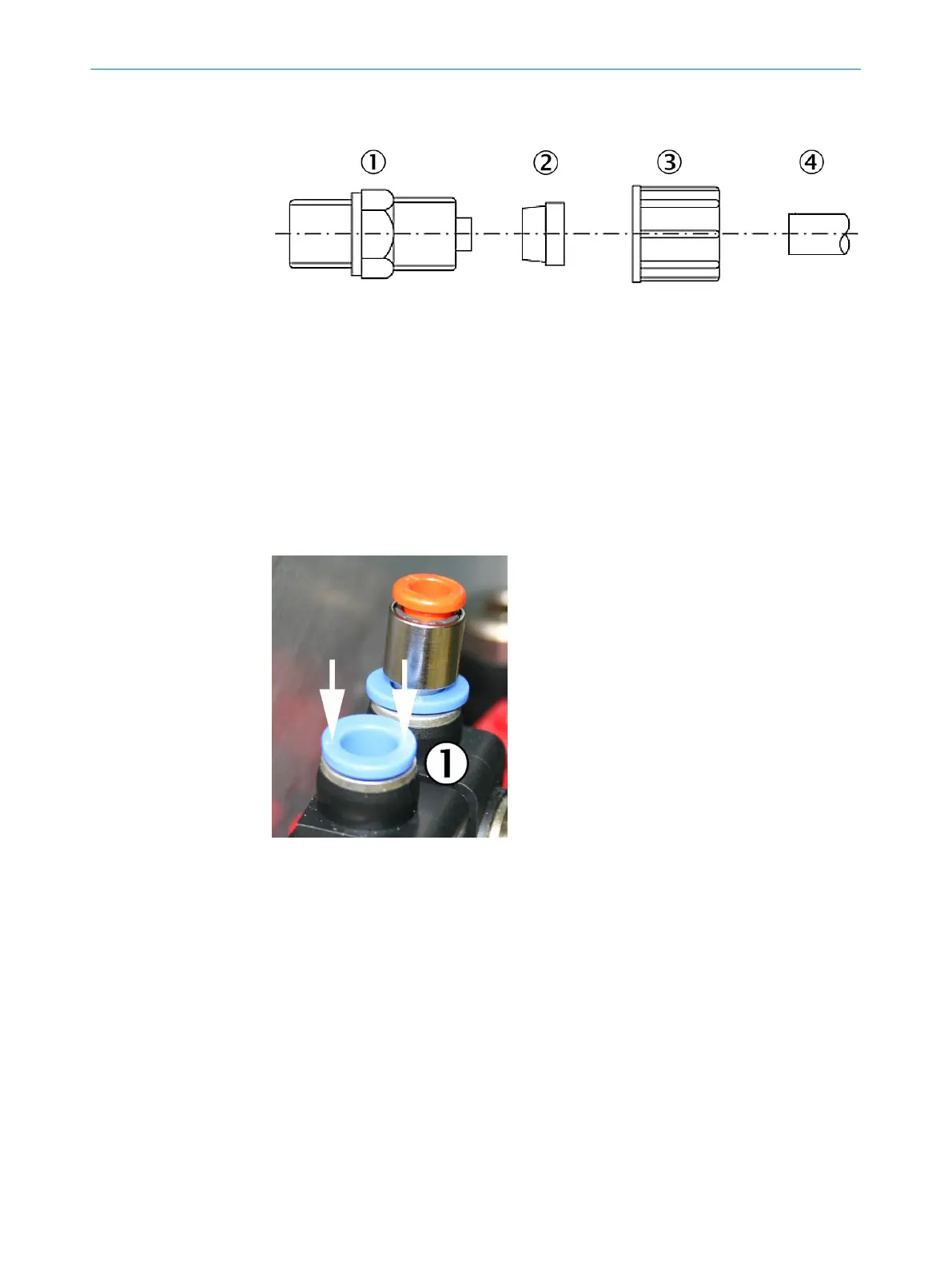

Plastic fitting
Figure 1: Hose fitting
1
Screw-in piece
2
Clamping ring
3
Knurled nut
4
Hose
b
Place the knurled nut and the clamping ring on the hose.
Observe the location of the clamping ring (see drawing).
b
Place the hose on the screw-in piece.
b
Turn the knurled nut hand-tight.
Push-in fitting pneumatic
1
Retaining ring
b
Inserting the tube: Push the tube in.
b
Removing the tube: Press the retaining ring
in and pull the tube out.
2.3 Scope of delivery
Please see the delivery documents for the scope of delivery.
2.4 Provision by operator
To be provided by operator:
•
Fixing accessories of enclosures (dowels, screws, etc.)
•
PTFE tubes and screw fittings: Depending on order
•
Grounding conductor for analyzer
•
Fixing accessories for heated sample gas line
•
Fixing accessories for PTFE tubes
•
Nitrogen or instrument air as zero gas: Observe the required quality: see "Sample
gas conditions", page 66
2 INSTALLATION
10
T E C H N I C A L I N F O R M A T I O N | MARSIC200 8017324/15A2/V6-0/2019-10 | SICK
Subject to change without notice
