4
Sample gas outlet from cooler (outlet of unheated sample gas line)
5
Solenoid valve KK10 for feeding test gas to the sampling probe
6
Hose pump for draining the condensate
Acid condensate escapes from the condensate outlet.
b
Make sure the condensate is safely collected or drained off.
b
The hose end can end max. 10 m above the condensate outlet.
CAUTION
Risk of chemical burns by acid medium
b
Take appropriate protective measures for work (for example, by wearing a safety
mask, protective gloves and acid resistant clothes).
b
In case of contact with the eyes, rinse immediately with clear water and consult a
doctor.
b
Fasten the enclosure on a suitable panel using the mounting bracket provided.
°
Drilling plan: see "Dimensional drawings", page 55.
°
Fit the enclosure horizontal.
°
Observe the clearances for the heated sample gas line and the PTFE lines:
see "Dimensional drawings", page 55.
°
Observe the relevant ambient conditions: see "Technical data", page 55.

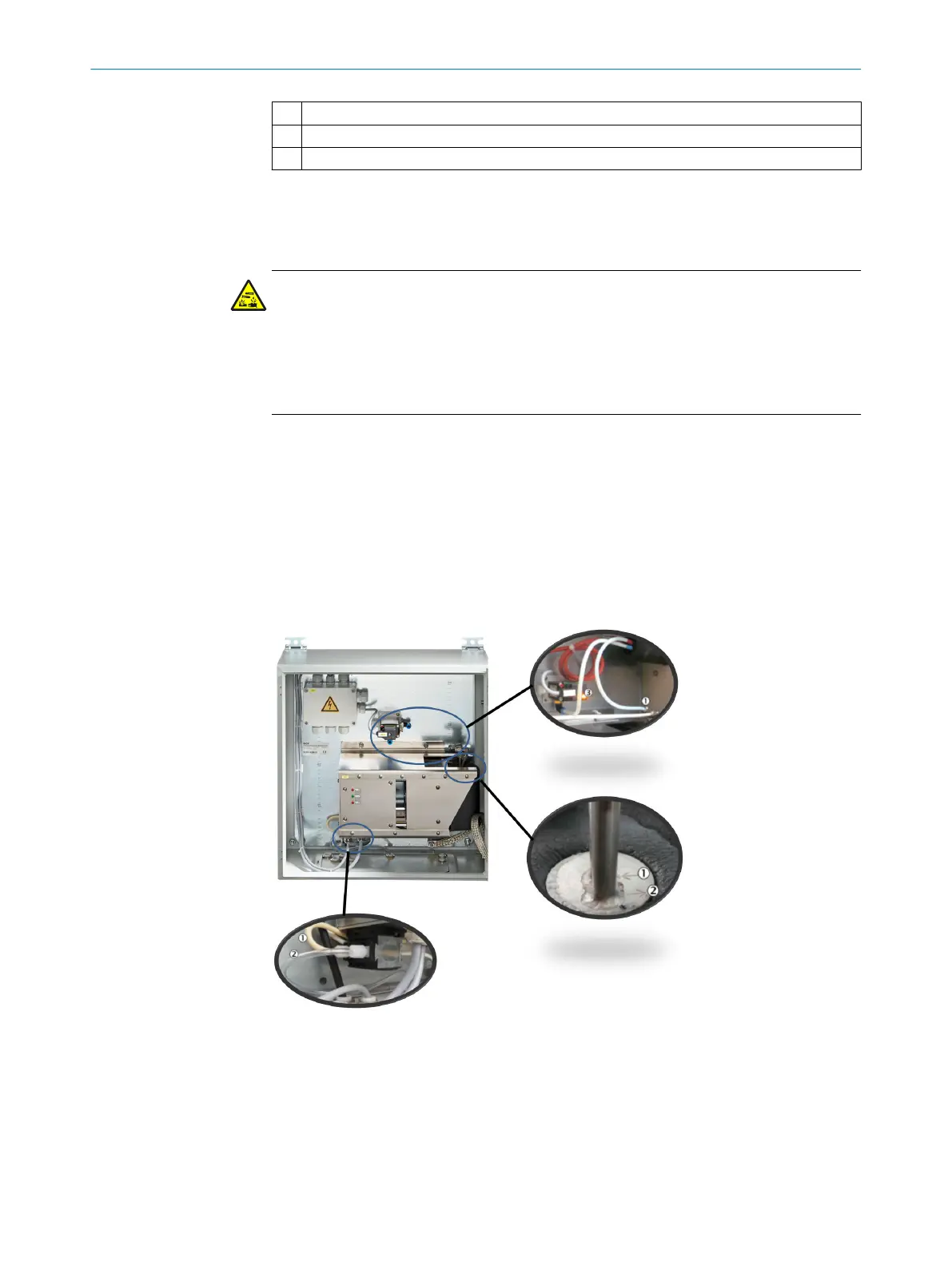

2.9.2 Gas connections on sample conditioning
Overview of connection positions
INSTALLATION 2
8017324/15A2/V6-0/2019-10 | SICK T E C H N I C A L I N F O R M A T I O N | MARSIC200
25
Subject to change without notice
