à
Fuse 1 24 V power supply unit
Fuse 2...5 1 fuse per measuring point (probe, line, sample conditioning)
Fuse 6 Sample gas pump
Fuse 7 Bypass pump (as from 2 measuring points)
Fuse 8 Analyzer
á
Measuring point switchover
2.10.1 Fitting the distribution unit

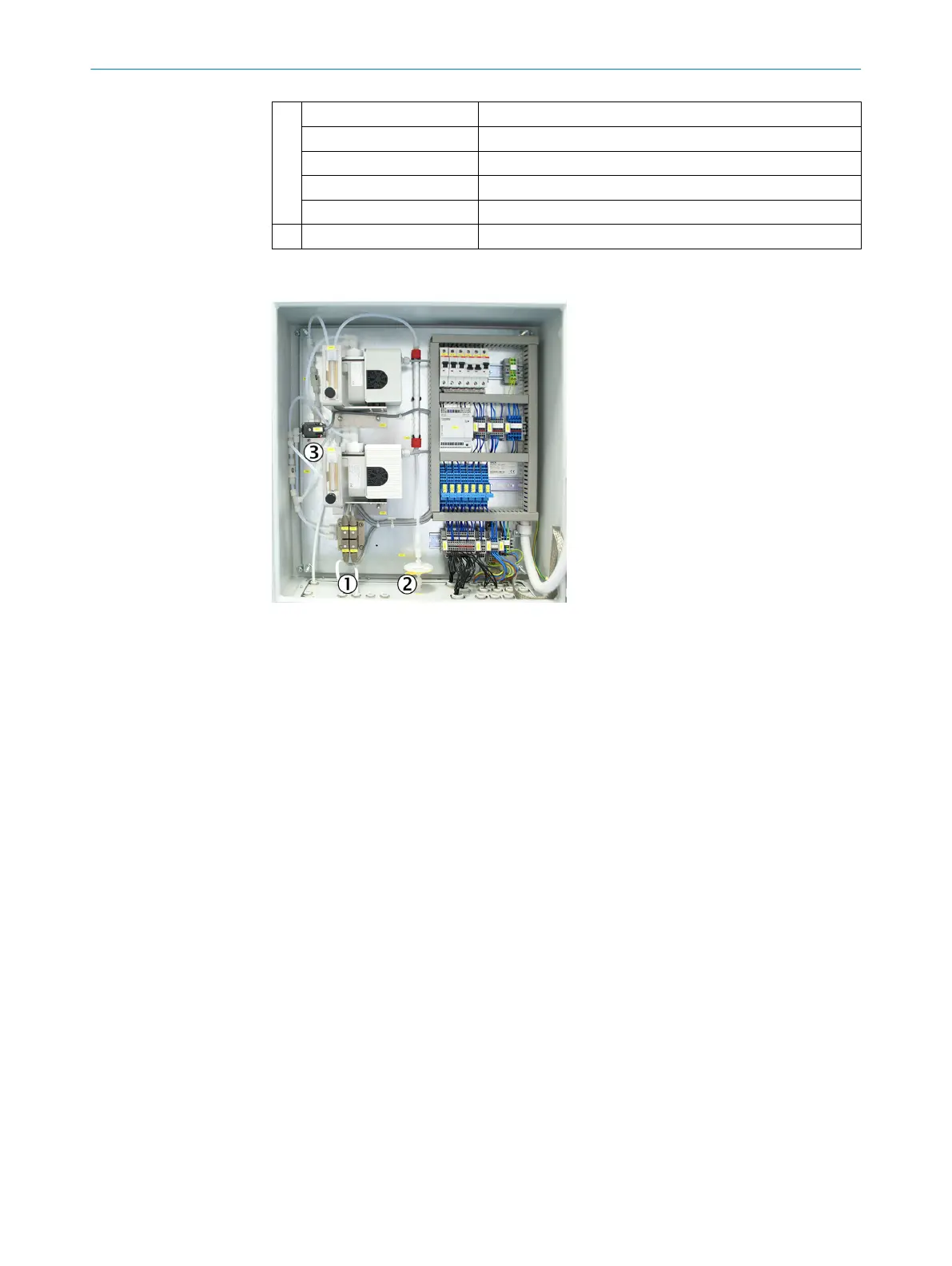

Figure 12: MULTI version distribution unit for
two to four measuring points (example)
1
Connection of PTFE line from sample
conditioning
2
Connection of PTFE line to analyzer
3
Valve KK1
b
Fasten the enclosure on a suitable panel using the mounting bracket provided.
°
Drilling plan: see "Dimensional drawings", page 55.
°
Fit the enclosure horizontal.
°
Observe the clearance for the PTFE line: see "Dimensional drawings",
page 55.
°
Observe the relevant ambient conditions: see "Technical data", page 55.
INSTALLATION 2
8017324/15A2/V6-0/2019-10 | SICK T E C H N I C A L I N F O R M A T I O N | MARSIC200
29
