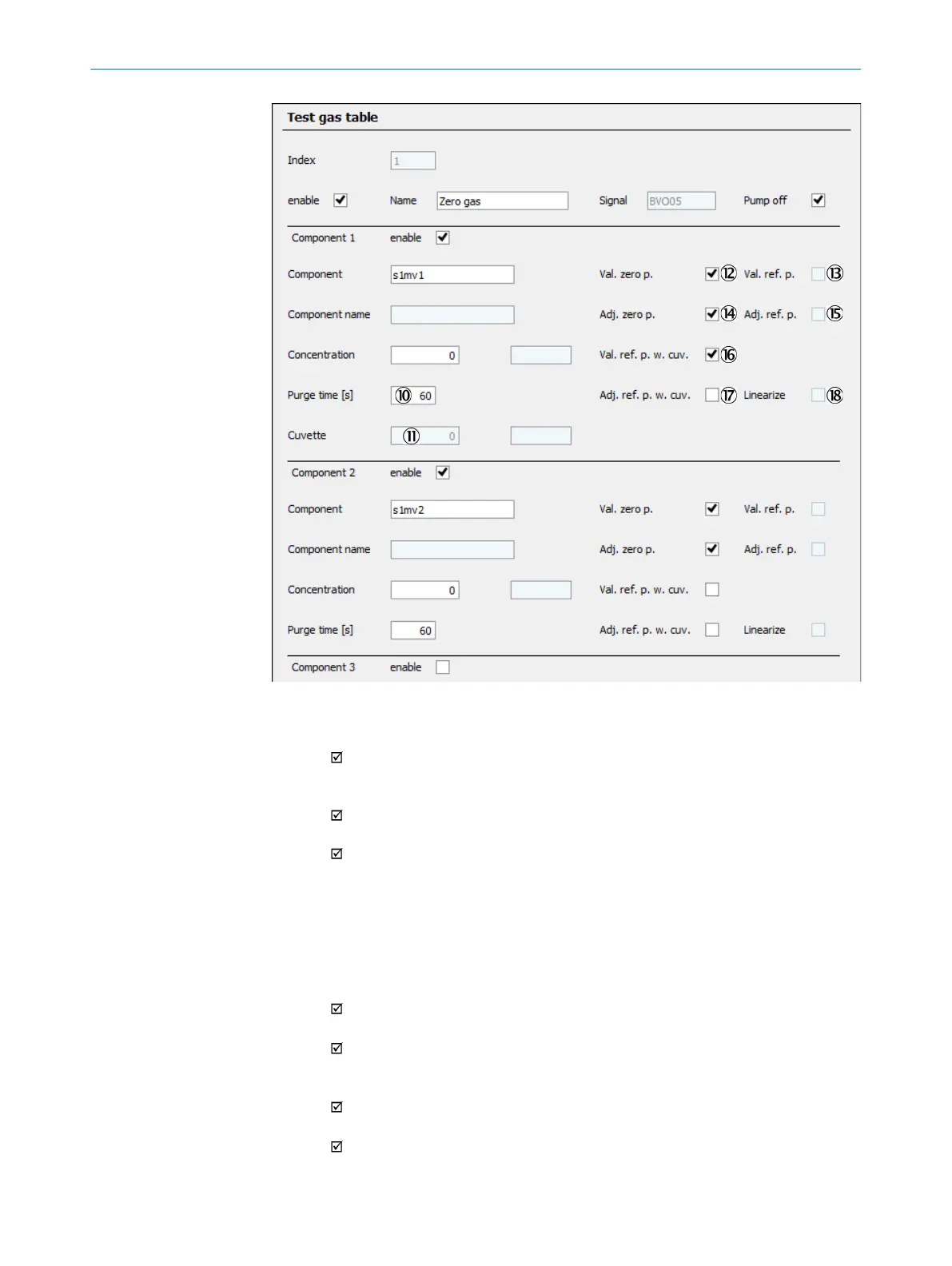

Figure 21: Menu “Test gas Table” – Edit (example)
1
Test gas number (cannot be changed).
2
= this test gas can be used for adjustments/validations.
3
Test gas name (free text field, max. 20 characters).
4
Boolean variable to control this test gas (cannot be changed).
5
= the sample gas pump is switched off automatically when this test gas is
used.
6
= this test gas can be used for the specified component.
7
Tag of the component for which this test gas is to be used.
1
8
Component name in the Sensor module (cannot be changed).
9
Setpoint value of the test gas in the physical unit of the measuring component.
▸ Use the decimal point (.) for numerical values.
ß
Wait time after switching to the test gas. The measurement for the adjust‐
ment/validation first starts after the flush time/wait time.
2
à
Cuvette: Concentration of the adjustment cuvette
á
= the test gas is used for zeo point validations.
Simultaneous use for reference point validations is not possible.
â
= the test gas is used for reference point validations..
Simultaneous use for zero point validations or reference point validations with
adjustment cuvette is not possible.
ã
= the test gas is used for zero point adjustments.
Simultaneous use for reference point adjustments is not possible.
ä
= the test gas is used for reference point adjustments.
Simultaneous use for zero point validations or reference point validations with
adjustment cuvette is not possible.
5 ADJUSTMENT FUNCTIONS
40
