SICK MCS200HW User Manual

8 Operation
8.1 Operating concept
The analysis system is equipped with a display with touchscreen.
•
All menus and functions are shown on the display.
•
The menus and functions are called up using the tiles.
•
The current operating state is displayed by the status indicator (Namur).
8.2 User groups
Depending on the user group, different menus are visible on the device.
User group Task
Operator System monitoring regarding measured values and status
Authorized client Configuration, simple error clearance and maintenance

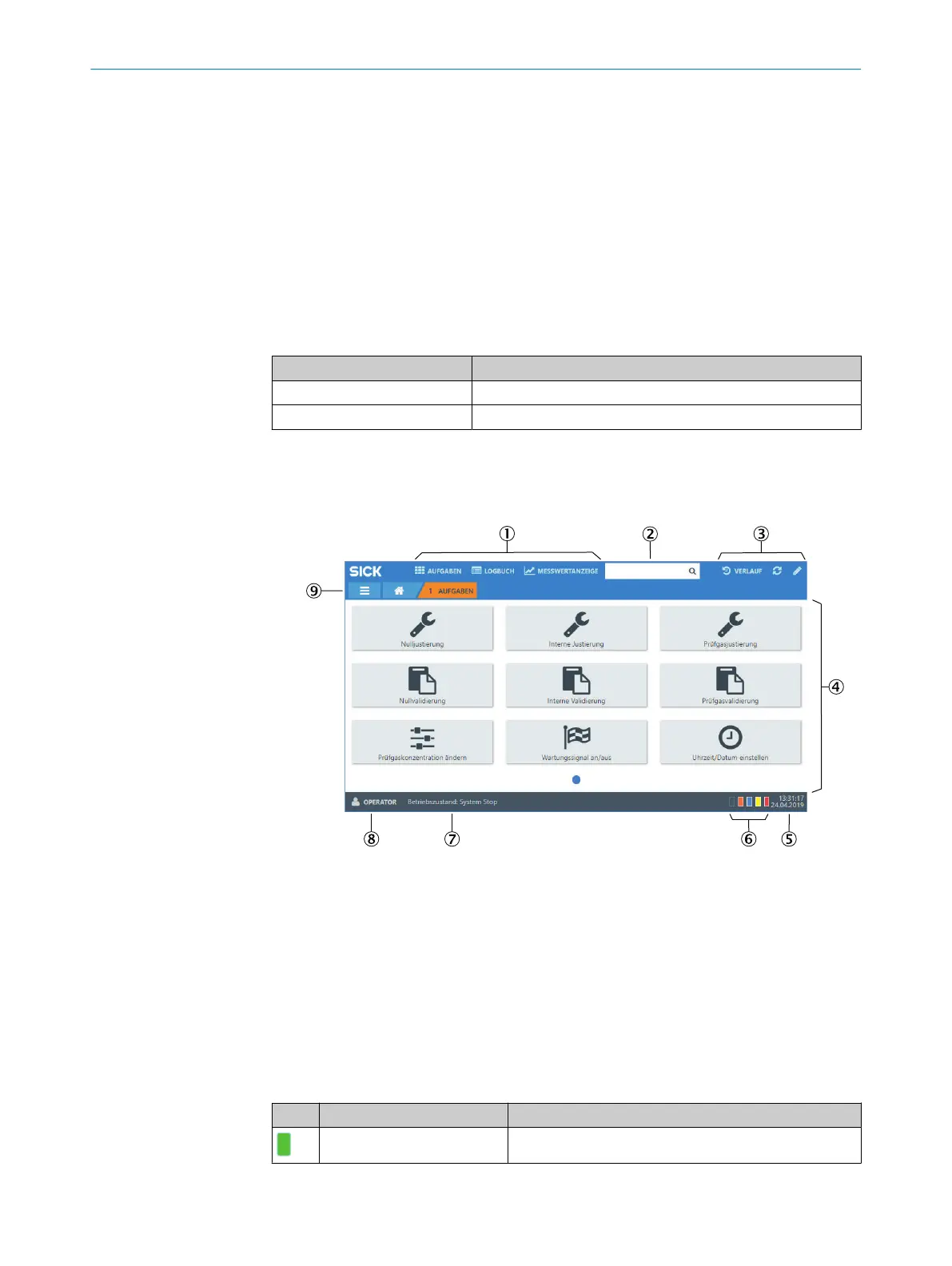

8.3 Display
Overview
1
Quick access
2
Search box
3
Editing and updating tools
4
Display and selection screen
5
Display of time and date
6
Status indicator (Namur)
7
Display of operating state
8
Display of user
9
Display of menu path
Significance of status indicator (Namur)
Color Status signal Significance
Normal Valid output signal
OPERATION 8
8021889/1D1T/V3-1/2021-09 | SICK O P E R A T I N G I N S T R U C T I O N S | MCS200HW
37
Subject to change without notice
