SICK MCS200HW User Manual

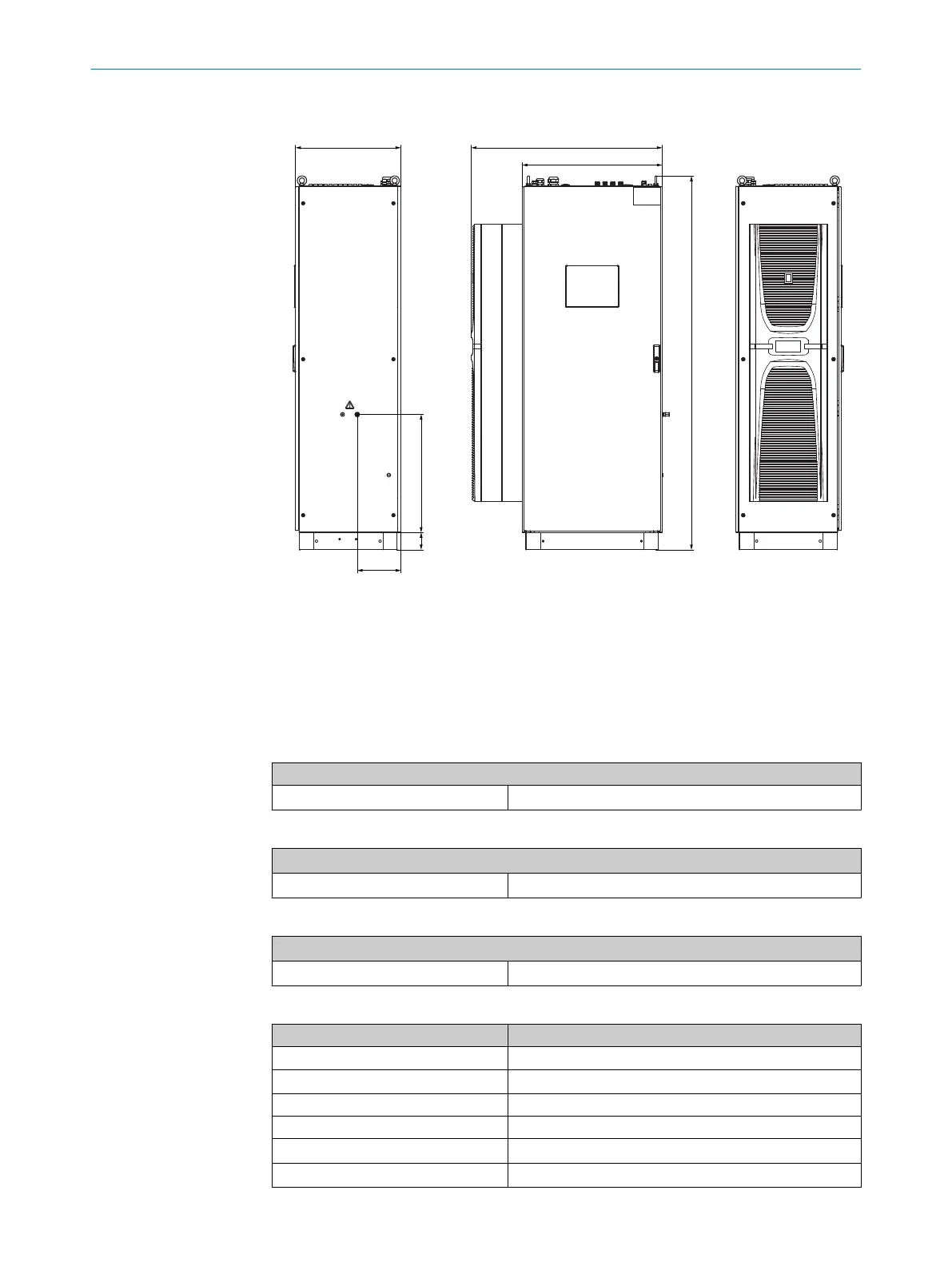

Dimension drawing MCS200HW with cooling unit
608 1.102
808
2.158
681100
252
Figure 21: Dimension drawing MCS200HW with cooling unit
All dimensions in the dimension drawing are in mm.
13.2
Technical data
13.2.1 Measured values
Table 7: Measured variables
Number of measured variables
Number of measured variables 10 IR components + O
2
+ TOC (optional)
Table 8: Measuring method
Measuring method
Measuring method Hot extractive
Table 9: Sample volume
Sample volume
Sample volume 200 ... 400 l/h
Table 10: Measuring ranges
Component Measuring range
HCl 0 ... 9 ppm; 0 ... 1840 ppm
NH
3
0 ... 15 ppm; 0 ... 650 ppm
CO 0 ... 60 ppm; 0 ... 8.000 ppm
NO 0 ... 110 ppm; 0 ... 1.865 ppm
CH
4
0 ... 70 ppm; 0 ... 700 ppm
NO
2
0 ... 25 ppm; 0 ... 240 ppm
13 TECHNICAL DATA
62
O P E R A T I N G I N S T R U C T I O N S | MCS200HW 8021889/1D1T/V3-1/2021-09 | SICK
Subject to change without notice
