13.2.9.4 Connections for interfaces and SD card

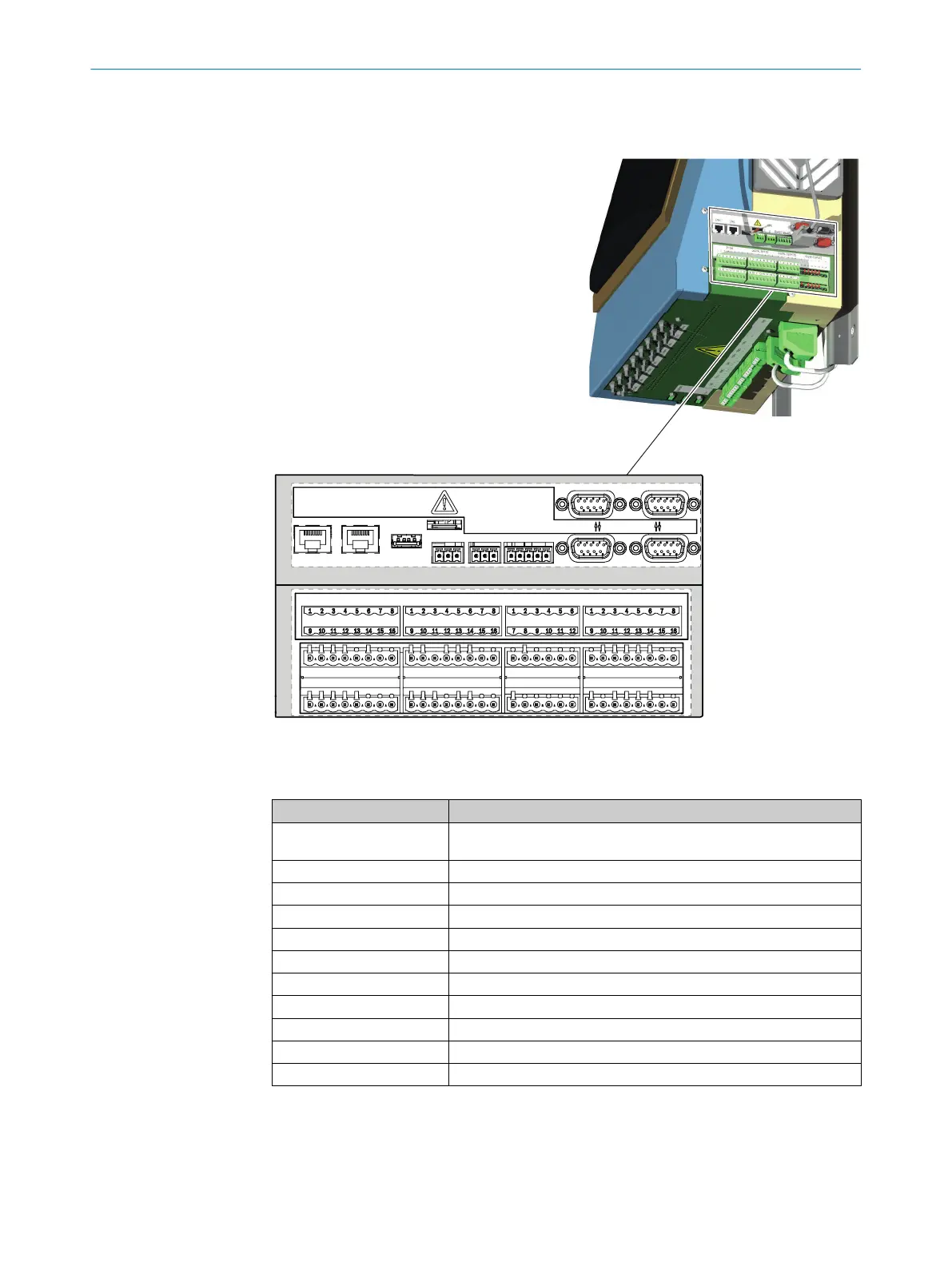

Overview
ETHO ETH1 USB CAN PROFIBUS
1 2 RS422/RS485 RS232 02 DISP.
PT100 DIGITAL INPUTS DIGITAL OUTPUTS VALVE OUTPUTS
I/0-MOD.
Data interfaces - overview
Table 27: Data interfaces - overview
Plug Connection for
ETH0 Ethernet (e.g. SOPAS ET), MPR (remote maintenance), communication via
Modbus TCP - line is led upwards
ETH1 Internal
USB Internal
SD card SD card (on the right, next to USB)
CAN1 Internal
CAN2 Internal
RS422, RS485 Internal
RS232 (top plug) Internal
O2 (bottom plug) O2 sensor
DISP (top plug) Display
I/O-MOD (bottom plug) Internal
TECHNICAL DATA 13
