SICK MCS200HW User Manual

Important information
NOTICE
Dirt can get into the measuring device when replacing the filter pad.
b
Only replace the filter pad when the measuring device is switched off.
Prerequisites
•
The device is switched off.
Procedure

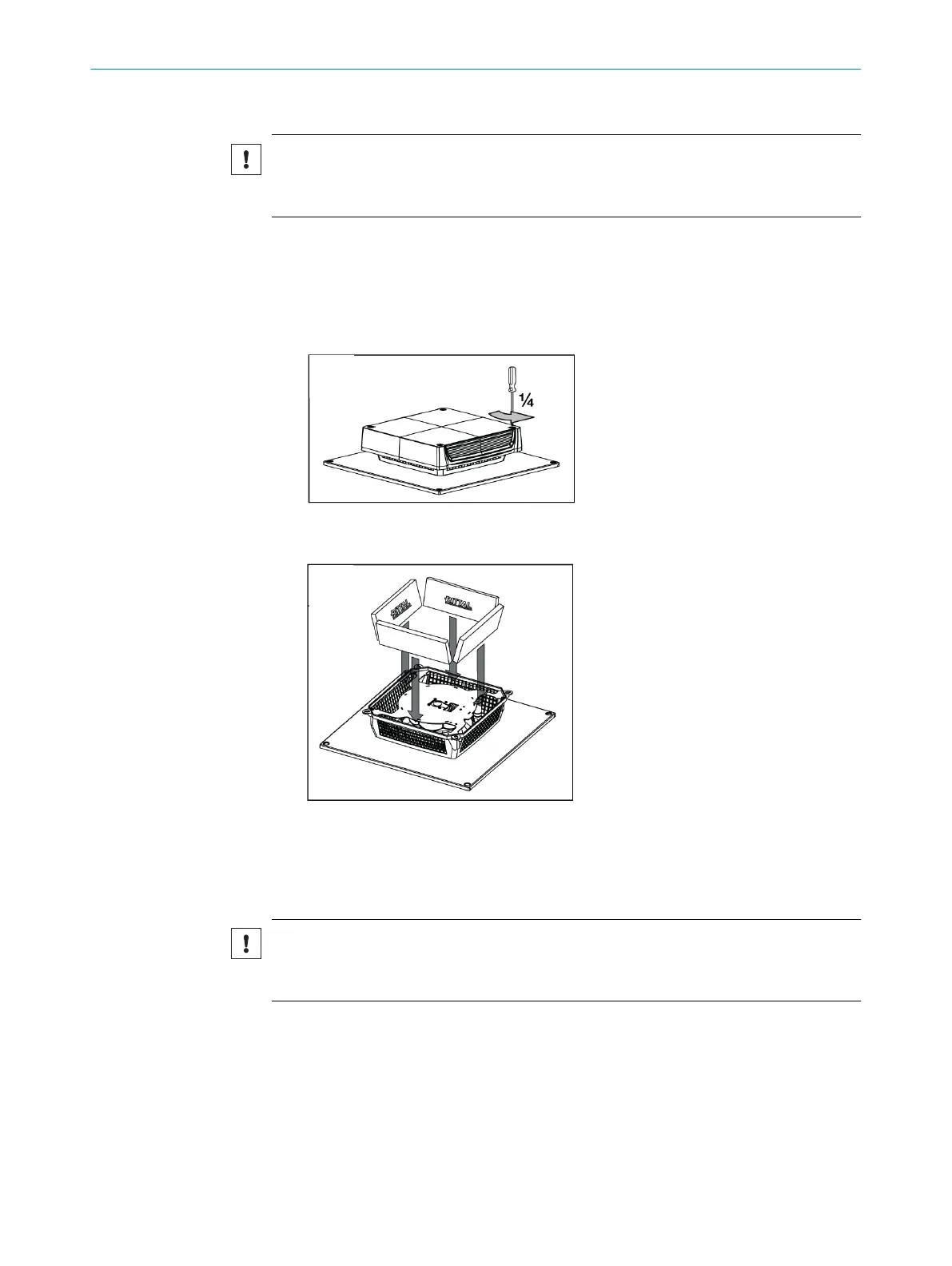

1. Loosen 4 screws on the fan grill (1/4 turn).
2. Take fan grill off.
3. Replace the filter pads (face in) on all four sides.
4. Fit the fan grill again and screw tight.
10.7.2 Replacing the filter pad
Important information
NOTICE
Dirt can get into the measuring device when replacing the filter pad.
b
Only replace the filter pad when the measuring device is switched off.
Prerequisites
•
Measuring device is switched off.
Procedure
1. Open the cover of the fan.
2. Take filter pad out.
3. Insert new filter pad.
4. Close the cover.
MAINTENANCE 10
8021889/1D1T/V3-1/2021-09 | SICK O P E R A T I N G I N S T R U C T I O N S | MCS200HW
51
Subject to change without notice
