1. Check the external instrument air conditioning for correct function.
10.7 Replacing the filter pad
10.7.1 Replacing the filter mat of the roof fan grill
Overview
The device is equipped with two different fans with different filter pads.

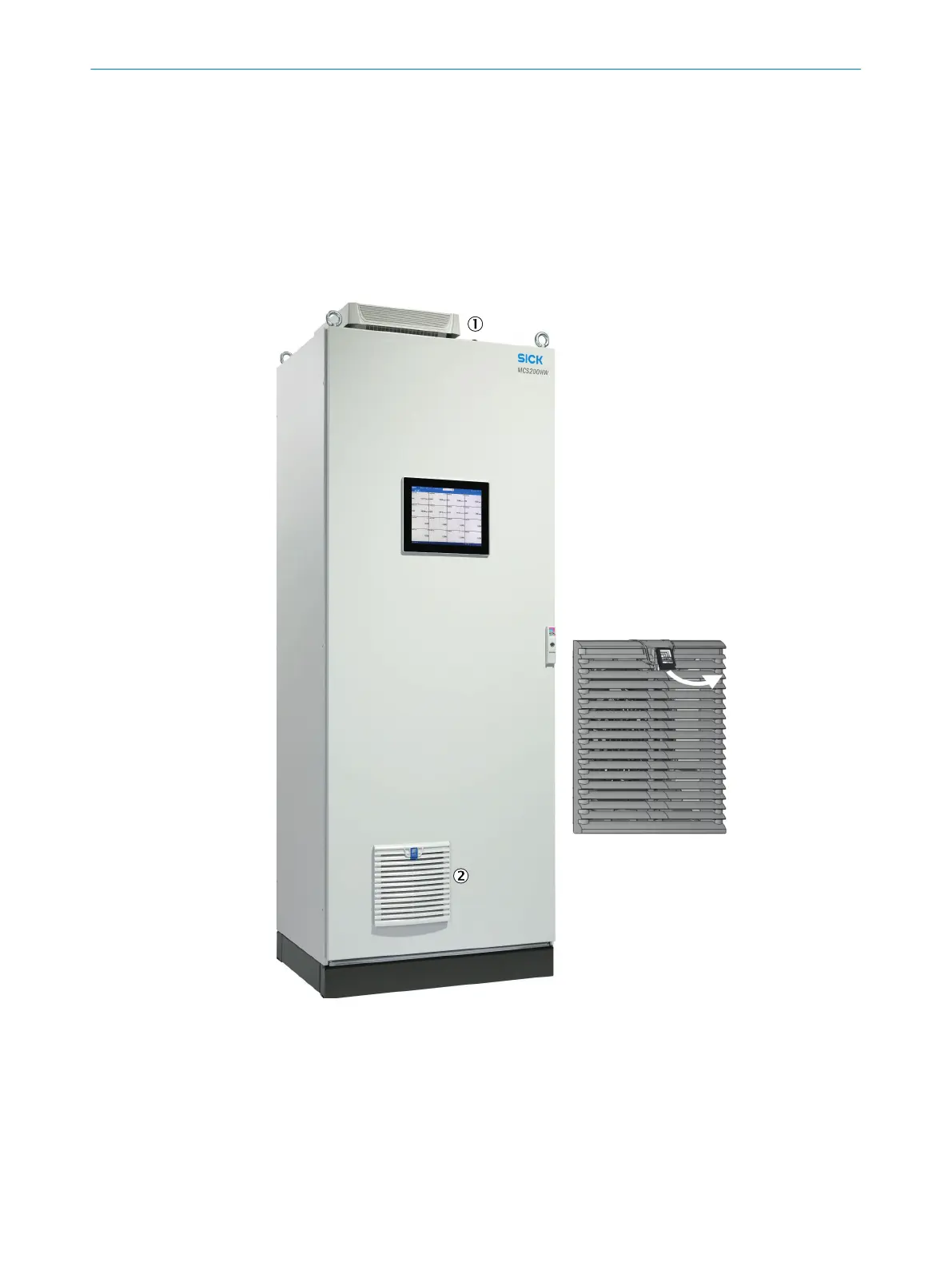

Figure 17: Fan grill position in basic configura‐
tion
1
Upper fan grill
2
Lower fan grill
Figure 18: Lower fan grill
