Installation
14.2 Removing and mounting the cross member
Precondition To disassemble the cross member, the cable compartment cover must be removed from the
panel.
➭ Remove the cable compartment cover (see page 76, "Removing and mounting the cable
compartment cover").
Removing and mounting the cross member:
Removing the cross
member
➭ The number of fixing bolts depends on the height of the panel:
- Panel height 1200 mm: Remove 4 bolts ② from the cross member ① .
- Panel height 1400 mm: Remove 6 bolts ② from the cross member ① .
➭ The floor fixing bolt ③ must be removed if the panel was already fastened to the
foundation.
➭ Remove the cross member ① .
Mounting the cross
member
➭ Insert the cross member ① in the panel.
➭ Depending on the panel height, bolt the cross member to the panel again using 4 or
6bolts②.
➭ Fasten the cross member to the foundation again using the floor fixing bolt ③ .
✔ The installation of the cross member is completed.
ATTENTION
If the cross member was removed, the bracing required for the stability of the panel during
movement is missing.
➭ If the cross member is removed, do not move the panel.

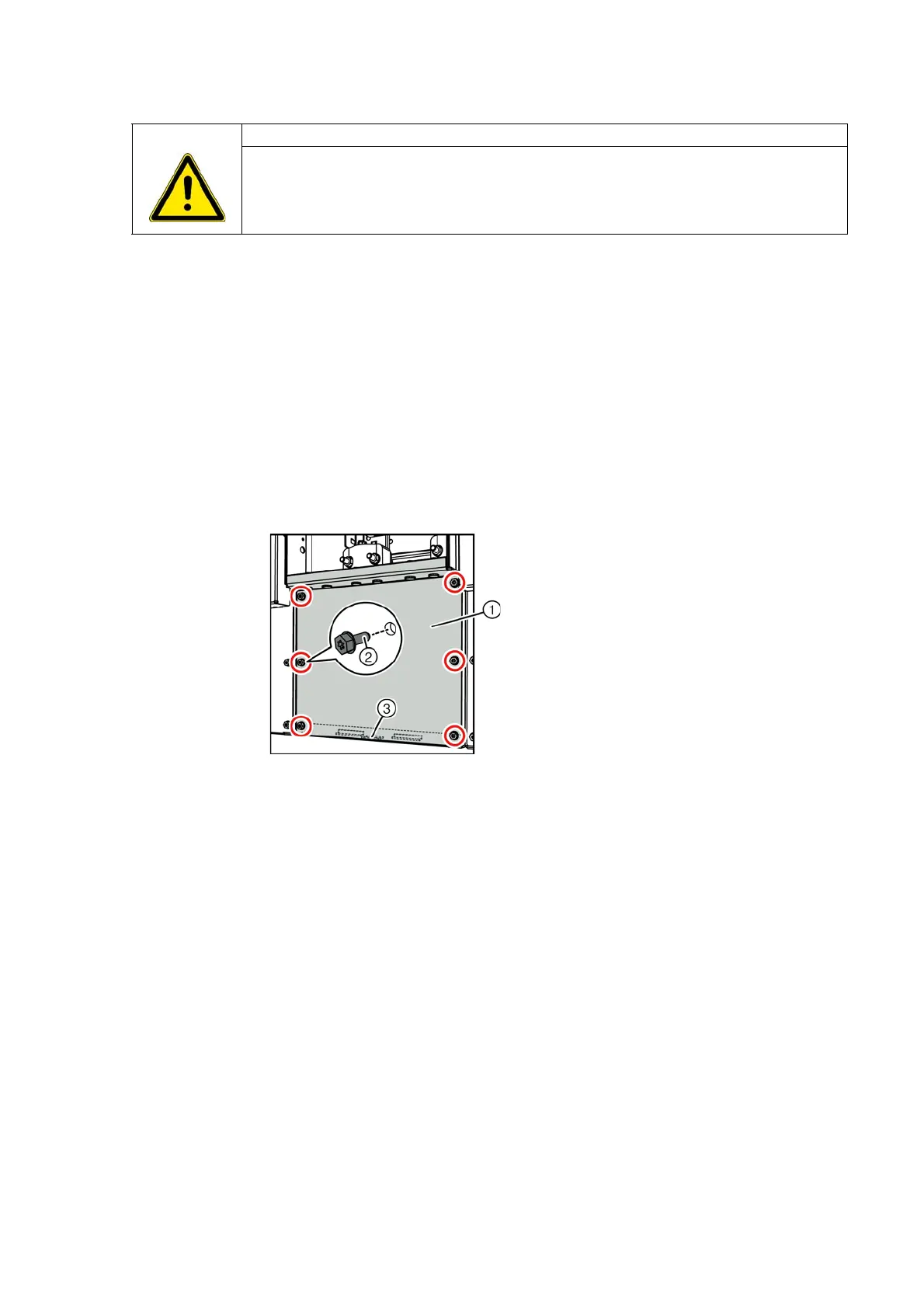

Fig. 53: Cross member (panel height 1400 mm)
①
Cross member
②
Hexagon head bolt with hexalobular
socket and small flange M6x16
③
Floor fixing bolts
