12.11 Floor openings and fixing points
The following overviews show the required floor openings and fixing points for the different
panel types and pressure relief methods.
Panels with a panel width of 310 mm have two recesses in the subframe for reasons of space.
These recesses must be observed for planning the foundation.

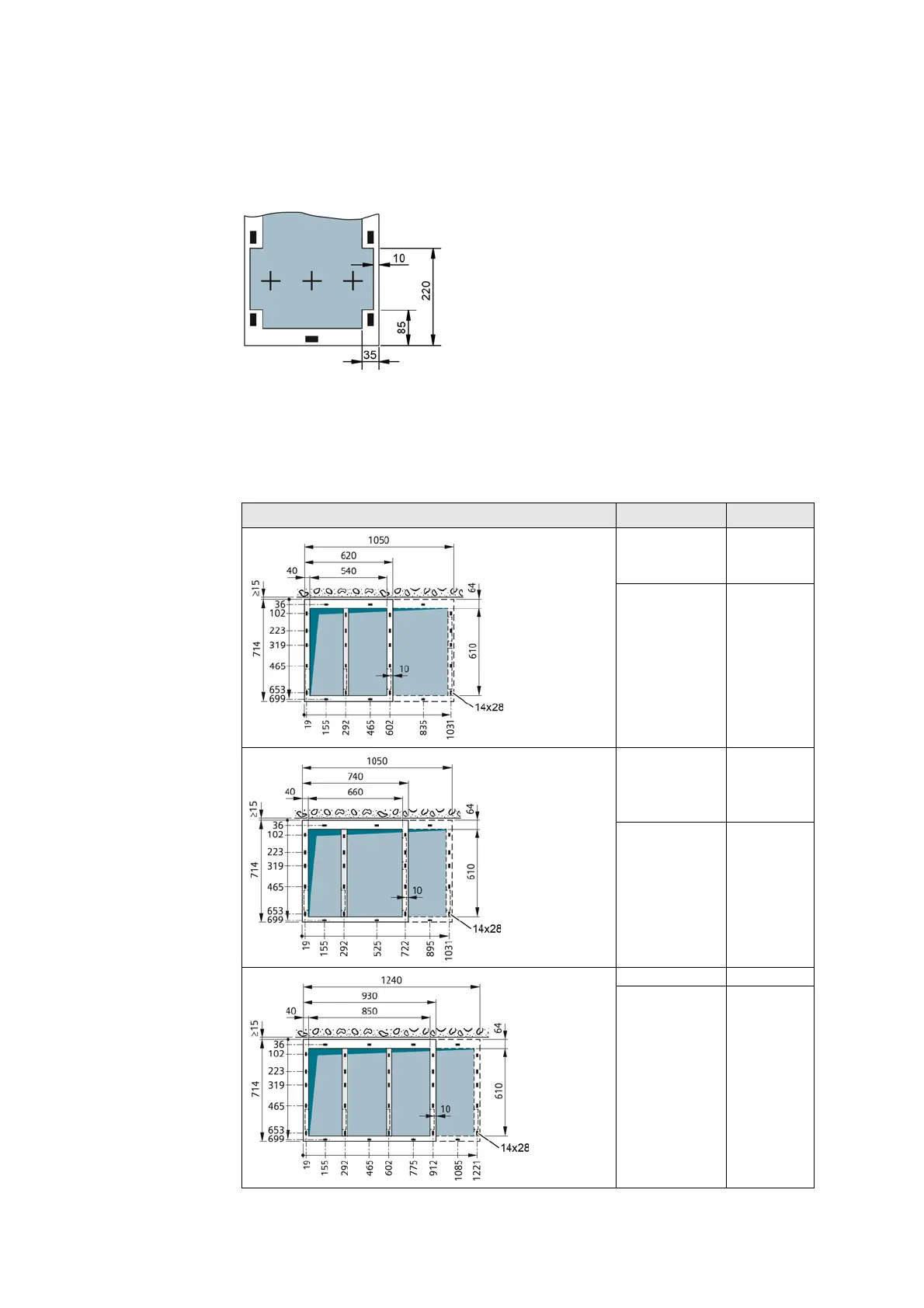

Fig. 33: Recess in the subframe
Panel blocks
Dimension drawings for panel versions with double cables, deep cable compartment cover, or
other versions can be ordered via the regional Siemens representative.
Dimension drawing Panel block Width
RR
RK
KR
620 mm
RRT
RRL
1050 mm
RT
RL
KT
KL
740 mm
RTR
RLR
1050 mm
RRR 930 mm
RRRR 1240 mm
