Installation
60/121 Revision 05 • INSTALLATION AND OPERATING INSTRUCTIONS • 8DJH • 500-8067.9

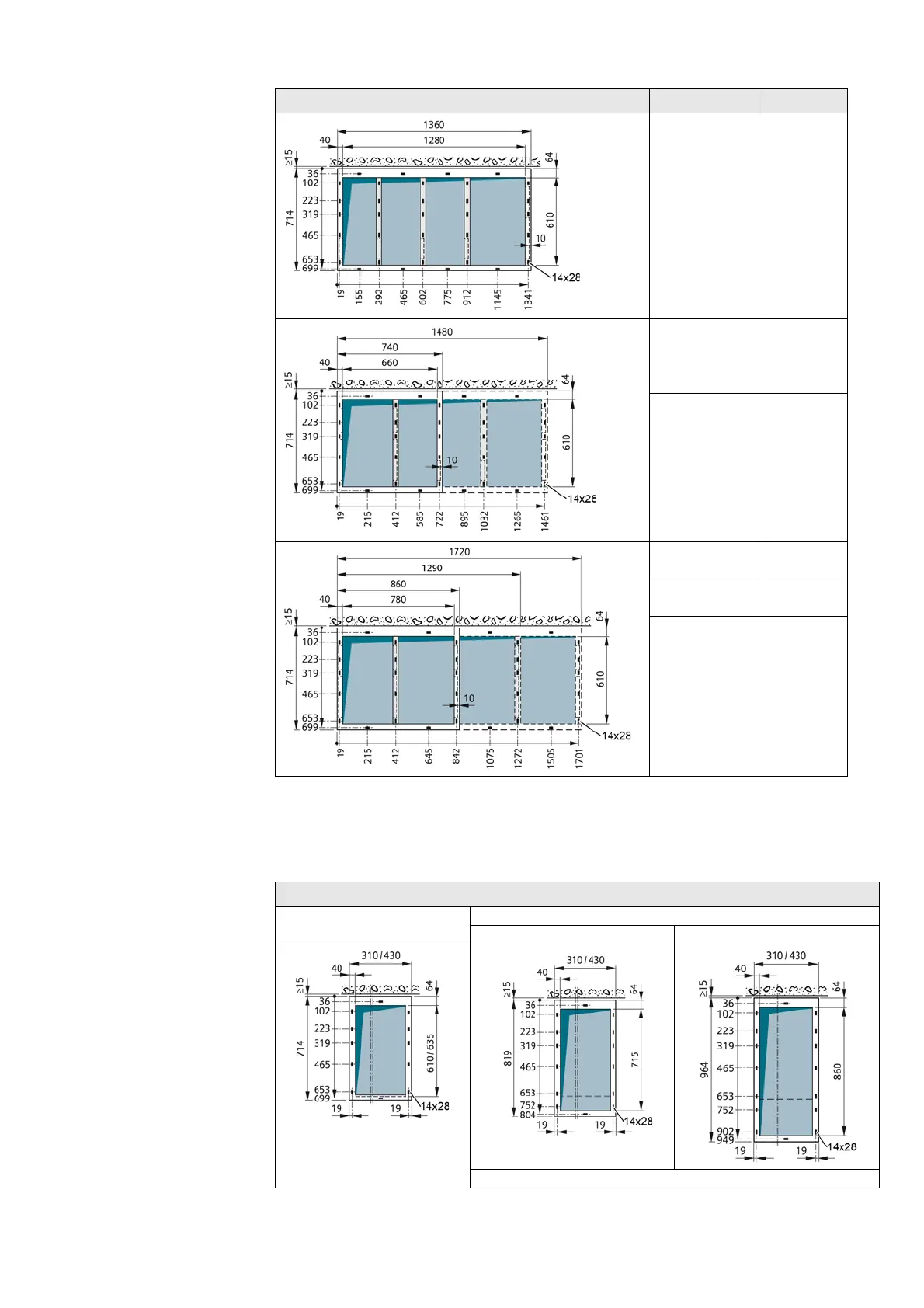

Versions with deep cable compartment covers (e.g. for double cable connections)
Dimension drawings for other versions can be ordered via the regional Siemens
representative.
RRRT
RRRL
1360 mm
TK
LK
TR
LR
1480 mm
TRRT
LRRL
1290 mm
TT
LL
860 mm
TTT
LLL
1290 mm
TTTT
LLLL
1720 mm
Panel width 310/430 mm
Deep cable compartment cover
without base extension
Deep cable compartment cover with base extension
Deeper by 105 mm Deeper by 250 mm
Floor opening depending on the selected cable connection/arrester
Dimension drawing Panel block Width
