Installation

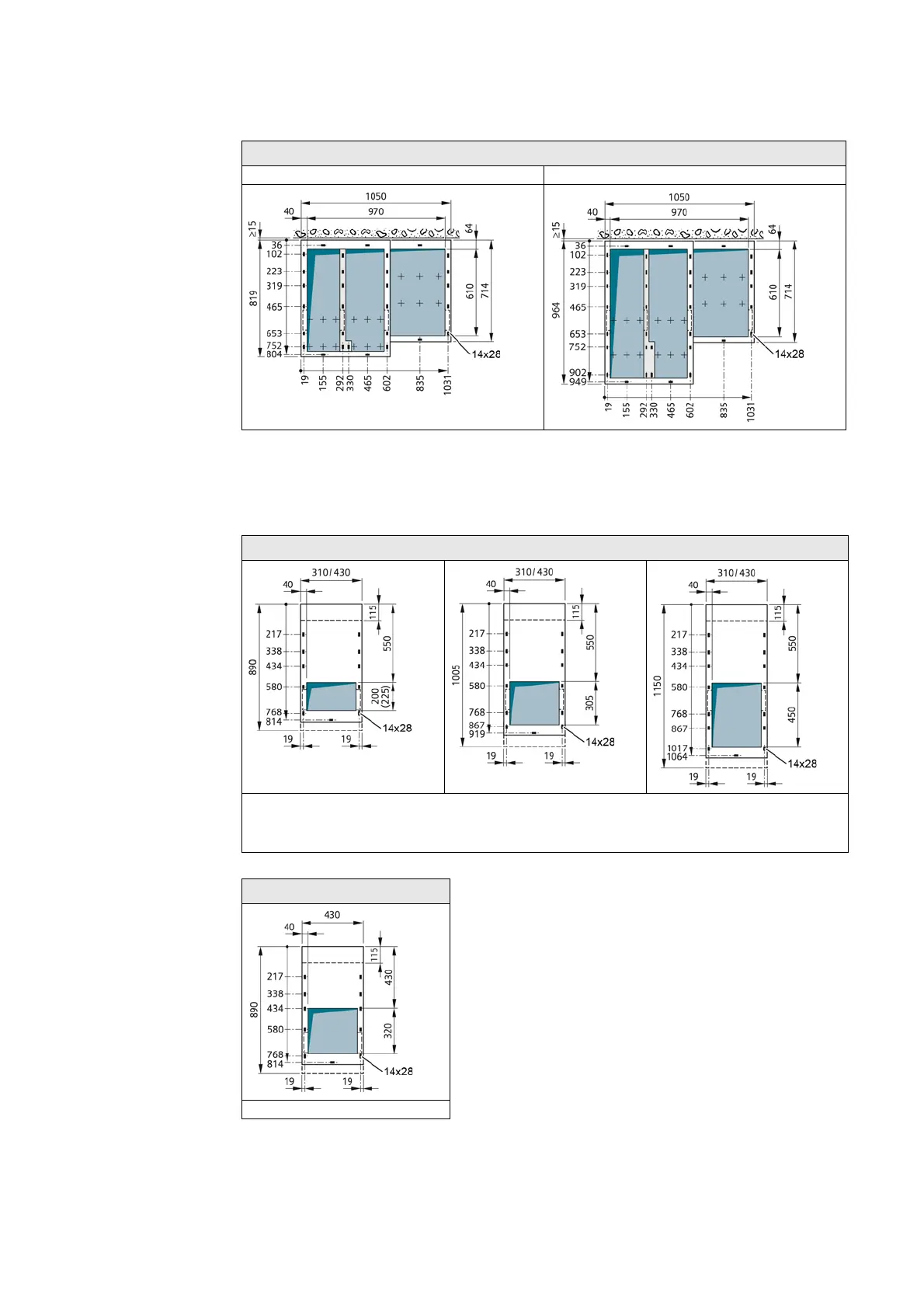

Example: Position of the floor openings and fixing points for double cable connection in panel
blocks
Versions combined with pressure absorbers and deep cable compartment covers
Dimension drawings for other versions can be ordered via the regional Siemens
representative.
Panel width 1050 mm
Type RRT deeper by 105 mm Type RRT deeper by 250 mm
Panel width 310/430 mm
• Ring-main panel type R
• Cable panel type K
• Circuit-breaker panel type L
Panel width 430 mm
• Transformer panel type T
